Double Twin Screw Extruded Fish Feed Pelleting Machine Extruder Pelleter
Jinan Sunward Machinery Co., Ltd.- Type:Feed Pellet Extruder
- Processing Object:Mixed Feed
- Processing Technics:Extrusion, Drying and Packaging
- Screen Mesh:Without Screen Mesh
- Grinding Equipment Type:Feed Hammer Mill
- Pellet Mill Type:Screw Extruder Pelleting
Base Info
- Model NO.:TSE65,70,85,90,95,120
- Bulking Machine Type:Twin Screw Bulking Machine
- Expanding Method:Wet Expansion
- Condition:New
- Applicable Materials Shape:Powder
- Name:Floating Fish Feed Extrusion Machine Food Extruder
- Inverter:Delta, ABB, Siemens
- Temperature Control:Omron Table
- Screw Quantity:2 PCS
- Motor:Famous Brands
- Extrusion:Dry and Wet Are All Fine
- Feed Production Line:Customized
- Feed Extruder:Double Screw Fish Feed Extruder
- Feed Size:1-14 mm
- Operator:2-3 Workers
- Key Words:Fish Feed Food Machine Extruder
- After Service:Provide
- Service:Online, Site Service
- Material:Stainless Steel
- Screw Material:38#Crmoal
- Transport Package:Wooden Cases
- Specification:3500kg
- Trademark:Shengrun
- Origin:China
- HS Code:8438800000
- Production Capacity:50 Sets,Month
Description
Basic Info.
Model NO. TSE65/70/85/90/95/120 Bulking Machine Type Twin Screw Bulking Machine Expanding Method Wet Expansion Condition New Applicable Materials Shape Powder Name Floating Fish Feed Extrusion Machine Food Extruder Inverter Delta, ABB, Siemens Temperature Control Omron Table Screw Quantity 2 PCS Motor Famous Brands Extrusion Dry and Wet Are All Fine Feed Production Line Customized Feed Extruder Double Screw Fish Feed Extruder Feed Size 1-14 mm Operator 2-3 Workers Key Words Fish Feed Food Machine Extruder After Service Provide Service Online, Site Service Material Stainless Steel Screw Material 38#Crmoal Transport Package Wooden Cases Specification 3500kg Trademark Shengrun Origin China HS Code 8438800000 Production Capacity 50 Sets/MonthProduct Description
Double twin screw extruded fish feed pelleting machine extruder pelletercan produce both floating and sinking feed pellets for fish, shrimp, crab, etc.
According to different fish varieties, the feed type will be various. And different ages fish require different sizes feed pellet. Our twin screw extruders can produce floating and sinking feed size range 1-14 mm by adjusting temperature, moisture, formulation and changing moulds.
Our fish feed production machines also can be used for dry pet food production, such as dog food, cat food, bird feed, monkey food, etc.
The advantages puffed feed produced by our extruders:
(1) Eliminating anti-nutritional factors to improve the digestion and absorption of feed, and then reduce excretion;
(2) High-temperature sterilization, to ensure the safety and health of the feed. Improve feed quality to reduce animal diseases of the digestive tract;
(3) The fish feed production line including flavoring coating drum and oil sprayer. So that can improve feed palatability and flavor; Beside, we can add some medicines or vitamins into the flavors which can avoid diseases;
(4) Improve starch gelatinization degree. It is conducive to the digestion and absorption of starch. The study found that the extruded starch can make the gelatinization of feed from 13. 58% to 81.55%.
(5) Improve the digestion and absorption of the material. Fish digestive tract is short, and most of the fish belong to no stomach fish species, so the finer the material is, the higher the rate of food digestion and absorption will be realized.
(6) The puffed feed is conducive to storage and aquaculture management.
(7) Expanded feed strong water stability, can 16 to 32 hours without collapse, so the water pollution is very small. Low density and puffed floating feed can float on the water surface for easy observation of the feeding and growth of fish species. It is conducive to scientific management; Even the high density and high fat puffed sinking feed's water stability can be more than 16 hours to ensure fully eat off by the fish species, then can avoid feed waste.
1. Fish feed samples for reference:

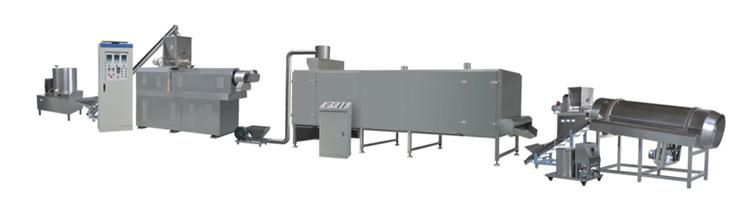

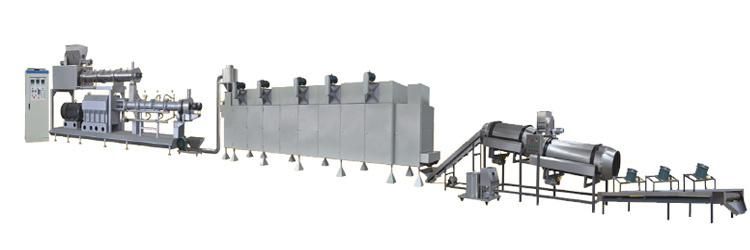

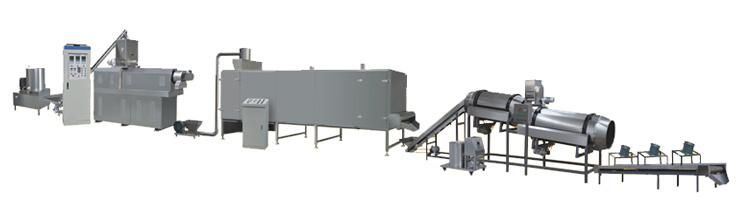

2. Fish feed production lines:
Model (TSE65): 150kg/hr
mixer → screw conveyer → TSE65 twin-screw extruder → hoister(air conveyer) → 5-layer 5 meter drying oven → single drum flavoring line → cooling machine → packing machine(optional)
Model (TSE70): 250kg/hr
mixer → screw conveyer → TSE70 twin-screw extruder → hoister(air conveyer) → 5-layer 8 meter drying oven → double-drum flavoring line → cooling machine → packing machine(optional)
Model (TSE85): 500kg/hr
Model (TSE90):1000kg/hr
Model (TSE95):1500kg/hr
raw materials mixing system → screw conveyer(bucket elevator) → Storage hopper → steam pre-conditioner → TSE85/TSE90/TSE95 twin-screw extruder → hoister(air conveyer) → 7-layer 8 meter drying oven (bigger ovens) → double-drum flavoring line → cooling machine → Storage bin → packing machine(optional)
3. Technical parameters:
Model | TSE65 | TSE70 | TSE85 | TSE90 | TSE95 |
Output | 150kg/h | 250kg/h | 500kg/h | 1000kg/h | 1500kg/h |
Installed power | 80kw | 100kw | 150kw | 180kw | 200kw |
Dimension(m) (L×W×H) | 15×2×3 | 22×2×3 | 28×3×3.5 | 40×5×6 | 50×5×6 |
4. Our service:
(1) Free consultation service for all processes;
(2) Free project planning and design services;
(3) Free debugging till every machine running well;
(4) Free delivery management for loading, shipment and transportation;
(5) Free workers training of equipment maintenance and operating;
(6) Free new production techniques and formulas after sales;
(7) 1 year complete warrantee and lifetime maintenance service and cost price spare parts.
5. Packaging and Delivery:
A. We will pack all necessary machines into wooden cases. For drying machine, and heavy extruders, we will fix them in the container with very strong iron wire.
B. If by LCL for small quantity machines, we will let send to QINGDAO port for loading.
C. If need containers, our trucks will take the containers from port to our factory for professional and safely loading, and then return to port for shipment.
