• Origin：Ningbo China
• HS Code：85051110
• Production Capacity：1000 Sets , Year

Basic Info.

Origin Ningbo China HS Code 85051110 Production Capacity 1000 Sets / Year

Product Description

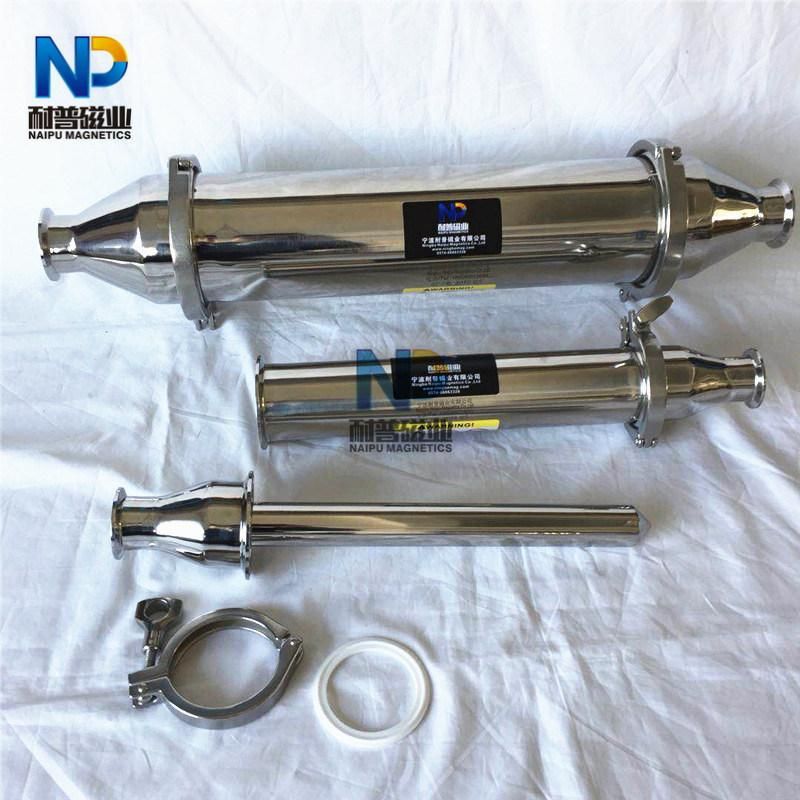

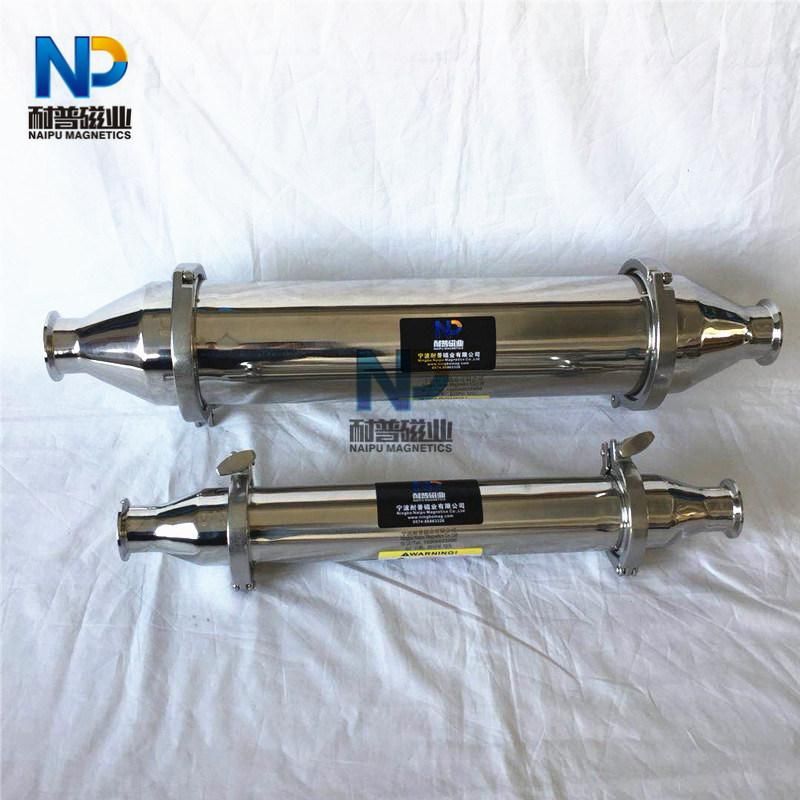

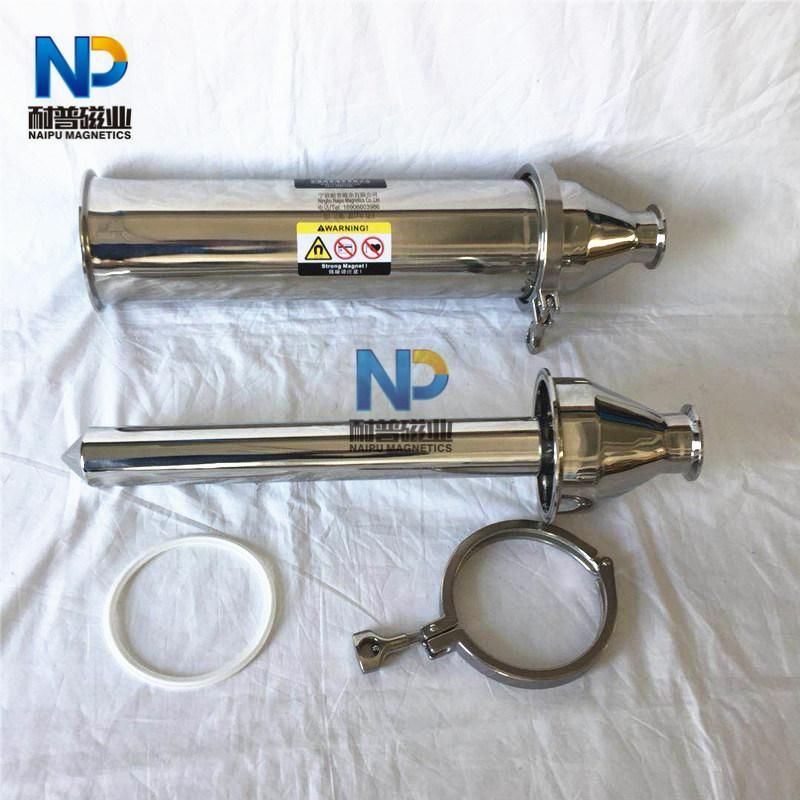

Straight magnetic filter for liquid or powder raw material with clamp and flange connection

Magnetic sanitary filter are designed to extract the ferrous material from the liquid, semi-liquid and air conveying powder in order to purify the material in the production process. Strong magnetic tubes inside the housing filtrates the flow and picks out the unwanted ferrous metal. The unit is simply mounted to the existing pipeline via flanged or threaded ends. Easy access is also possible using the quick release clamp.

Construction:
Magnetic sanitary filter consist of a group of Magnetic grates and a housing outside. An inlet and outlet makes it possible to connect with existing processing line by various connection types.

Features:
1. Finishing: Fine polishing and well welding to meet food grade.
2. Material of shell: SS304, SS316 and SS316L seamless steel tube
3. Working Temperature: Standard working temperature is under 80 Celsius degree, but if high temperature is required, we can offer up to 350Celsius degree to meet your special applications
4. Compress resistance: 6 kilograms (0.6Mpa) with quick release clamp while 10 kilograms (1.0Mpa) with flange.
5. As rare earth magnets are extremely powerful and tramp metal is very difficult to remove by hand. We are ready to offer you an easy-clean design.
6. To meet the demand of preserving heat, we offer you a special design adding insulation layer.
7. Customer designs, specifications can be fulfilled.

Application area:
This unit is suitable for the products that is Liquid, Semi-liquid and air-conveying powder





FAQ:
1.What about the lead time?
(1) Sample: 2-3 days.
(2) Batch quantity:5-7 days.

3.What's the MOQ?
Common regular Size: ≥1 Piece.

3. Terms of Paymemt:
(1). T/T in advance
(2). Western Union cash - for small order or samples order.
(3). PayPal- for small order, quick receipt

4. Package & Shipment :

Package: Magnetic Isolation in wooden carton

(1). By Express(DHL, FedEx, TNT, UPS): Door to door, Short Delivery time, 3-5 days.
(2). By Air: Short Delivery Time, 3-7 days.
(3). By Sea: Cheap Shipping Cost, 7-35 days.
