• Model NO.：HMST3-1
• Counting Wheel：Yes
• Frequency Converter：Yes
• Conveyor：Yes
• Brand Name：Hellobaler
• Driven Type：Hydraulic
• Capacity：1.5-2.5 T,H
• Machine Weight：5t
• Application：Straw, Hay, Cotton, Stalk, Wood Chips, etc.
• Transport Package：Nude Package and Wooden Cases
• Specification：CE, ISO9001: 2008
• Trademark：Hellobaler
• Origin：Shandong, China
• HS Code：8422400000
• Production Capacity：1200set,Year

Basic Info.

Model NO. HMST3-1 Counting Wheel Yes Frequency Converter Yes Conveyor Yes Brand Name Hellobaler Driven Type Hydraulic Capacity 1.5-2.5 T/H Machine Weight 5t Application Straw, Hay, Cotton, Stalk, Wood Chips, etc. Transport Package Nude Package and Wooden Cases Specification CE, ISO9001: 2008 Trademark Hellobaler Origin Shandong, China HS Code 8422400000 Production Capacity 1200set/Year

Product Description

China Supply Semi Automatic Straw/Hay/Stalk Balers


Model/Data		HMST3-1
Bale size	mm	1600*800*600 Length is adjustable
Hydraulic Cylinder		Φ180
Pressing Force	KN	500
Cycle time	S	10
Density	kg/m	200±20
Bale weight	kg/bale	100±20
Capacity	t/h	1.5-2.5
Feed opening	mm	1000*800
Power	Km	22 +5.5
Machine weight	T	5

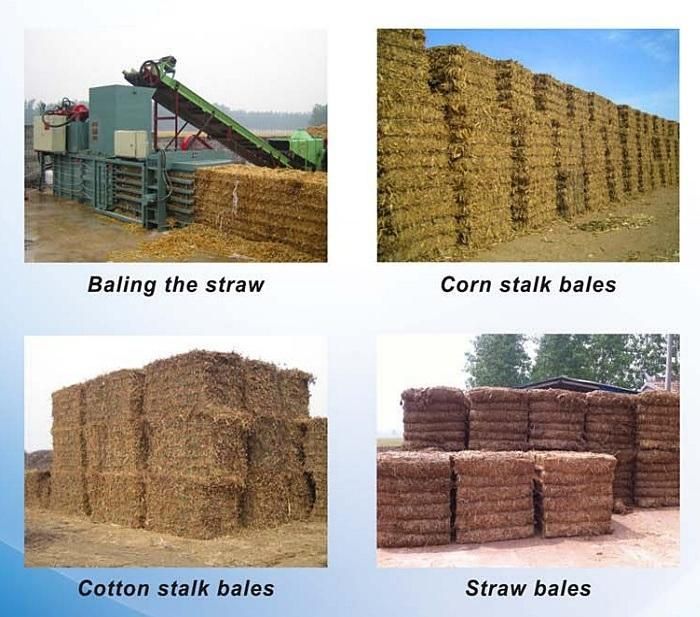

Application:

Straw, Hay, Cotton Stalk, Wood Chips etc, mostly used in Power Plant.



Advantage:


1. Energy Saving Power HMST Series equipped with one main motor and one auxiliary motor, which provide adequate power to the continuous running of the machine. With two oil routes, the main pump group providing oil to the main cylinder, while the auxiliary pump providing oil to clamping and wire-feeding cylinders, the two oil routes are separated, which reduce the error immensely.

2. Heavy Duty Welded Construction The whole frame is heavy duty weldedwithQ235 steel plate, which is very sturdy and durable, we can guarantee10 years life of the main frame.

3. Durable Conveyor The frame of the conveyor is heavy duty welded with HT300 steel, the chain is made by 6mmsteel plate, while the cover of the conveyor is new type PU slab rubber, all of these made our conveyor durable and very strong to resist pressure.

4. Ergonomic Wire Tie Tool HM Series need to be tied manually, we provide the ergonomic wire tie tool for our customers, which greatly increase efficiency during the bale tie operation.

5. Safety First HelloBaler always put safety to the first place not only in production but operation. Our balers equipped with emergency stop switch, circuit protector and safety door to make sure safety when operating. What's more, caution boards are posted on main parts of the machine to warn operator.



Service & Warranty of Hellobaler:


Consultation	Dimension drawing and foundation drawing available
Installation	Engineers available to service & install machinery oversea for 3~5 days
Training	Provide some professional training for operating and maintenance
Spare parts	Provide all original spare parts for the baler machine
Warranty	Main Frame: 10 years; Main Cylinder: 6 years; Motors: 3 years,  The lifetime should be about 10 years! Free maintenance.
Technical support	Other necessary technical support are available
Problems in running	If any problems in running, we provide solution within 12 hours!

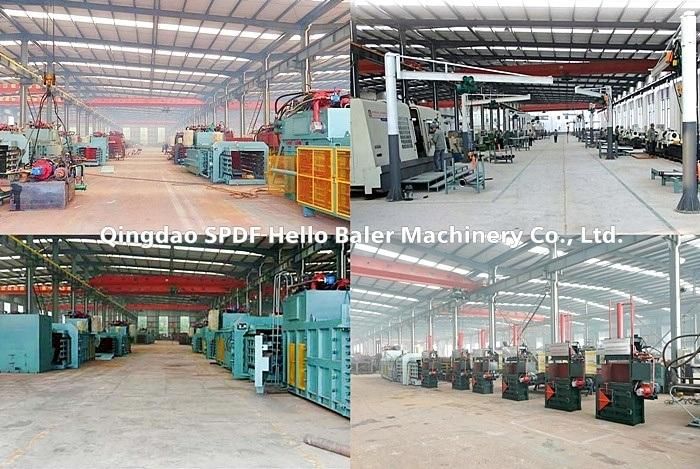

About Hellobaler:


Our factory built in 1986, with 28 years development, we are the biggest baler machine manufacture in China, our baler is very popular in China Market, the reputation is more than 65%. In 2012, we expand our business to the world market, within 2 years development, we get more global customers with the machine good quality and economic price. Hellobaler company welcomed worldwide capable agents join us! 1.The leader of baler production, 30 years rich experience, more than 70% customers' choice; 2. 3 workshops covers more than 200,000 square meter; 3. 60 sets of various types of testing instruments; 4. More than 300 employees, including over 40 senior engineers, 100 technicians; 5.The biggest baler equipment manufacturer in China; 6. The first straw baler was produced here; 7. The protoplasmic of baling equipment standards; 8. ISO9001,TS16949,SGS certificate


If you have any inquiry about the balers or other packing machine, please don't hesitate to contact with us!
