Kubota DC35 Rubber Track 400*90p*43 for Agricultural Harvester

Shanghai Puyi Industrial Co., Ltd.
  • Type:Electronic Security Devices
  • Usage:Agricultural Products Processing, Harvester
  • Material:Rubber
  • Power Source:Gasoline
  • Product Name:Agricultural Rubber Track
  • Warranty:12 Months Under Normal Use

Base Info

  • Model NO.:400*90P*43
  • Export Markets:Global
  • Transport Package:Bare Packing or Wooden Pallets
  • Specification:400*90*47; 500*90*53
  • Trademark:No Marks or As Buyer′s Requests
  • Origin:Shanghai, China
  • HS Code:8431499900
  • Production Capacity:5000PCS,Months

Description

Basic Info.

Model NO. 400*90P*43 Export Markets Global Transport Package Bare Packing or Wooden Pallets Specification 400*90*47; 500*90*53 Trademark No Marks or As Buyer′s Requests Origin Shanghai, China HS Code 8431499900 Production Capacity 5000PCS/Months

Product Description

KKUBOTA DC35 Rubber track 400*90P*43:

Kubota DC35 Rubber Track 400*90p*43 for Agricultural Harvester
Kubota DC35 Rubber Track 400*90p*43 for Agricultural Harvester



Specifications:
1.excavator rubber track pad
2.excellent quality and low price
3.strong resistance to wear.
4.warranty:12 months

Characteristics:
1. Type of rubber tracks:
1). Continuous rubber track
2). Conventional type or interchangeable type rubber track
3). Warranty: guarantee one year under normal use
4). Application: mini-excavator, bulldozer, dumper, crawler loader, crawler crane, crawler carrier vehicle, agriculture machinery, paver and other special machine.

2. The feature of rubber tracks:
(1). Less round damage
Rubber tracks cause less damage to roads than steel tracks, and less rutting of soft ground than either steel tracks of wheel products.
(2). Low noise
A benefit to equipment operating in congested areas, rubber track products less noise than steel tracks.
(3). High speed
 Rubber track permit machines to travel at a higher speed than steel tracks.
(4). Less vibration
 Rubber tracks insulate machine and operator from vibration, extending the machine's lifetime and lowering operate fatigue.
(5). Low ground pressure
The ground pressure of rubber tracks equipped machinery can be fairly low, about 0.14-2.30 kg/ cmm , a major reason for its use on the wet and soft terrain .
(6). Superior traction
The added traction of rubber, track vehicles permits them to pull twice the load of wheel vehicles of the sane weight.
3,How to Measure skid steer rubber chain?
To check for the size of your existing rubber track you will need to measure followings.
Measure the width of the track in millimeters or we can do the conversions for you. (1 inch = 25.4 millimeters)
Measure the distance from the top of the center of one link (metal piece that engages with the sprocket on the track) to the top of the center of the next link (in millimeters or we can do the conversions for you). This distance is known as the pitch of the track.
Count the total number of links (also called metal pieces or lugs) inside of the track.
The measurement of a track is Width x Pitch x Links.

Parameters:
SizeWeight for Each LinkSizeWeight for Each LinkSizeWeight for Each Link
130*720.36WD300*721.459400*1447.75
150*600.52B300*842.88400*144Y7.41
150*720.55T300*863.13420*1005.3
170*600.48300*109KW3.38450*714.45
180*600.56K300*1093.56DW450*714.82
180*720.64300*109N3.32450*73.54.57
180*72K0.87300*109W3.21450*765.27
H180*720.77320*52.51.69450*81.55.24
190*600.59320*541.81450*81N5.19
190*600.59B320*842.95450*81W5.02
190*720.72B320*862.99450*83.55.47
200*720.84B320*86SB2.99450*83.5Y5.67
200*72K1.07B320*86C3.01450*844.22
230*480.87B320*86Z3.12B450*864.33
230*48K1.06B320*86CM3.01B450*86SB4.3
230*721.09B320*86R2.99B450*86C4.31
230*72K1.34T320*863.22B450*86Z4.51
230*961.77T320*86MB3.3B450*86CM4.37
230*1011.92T320*86SB3.27B450*86R4.3
250*471.11T320*86C3.25450*904.07
250*48.51.13T320*86Z3.53KU450*903.9
250*52.51.04320*902.85450*1106.9
250*52.5K1.31320*1002.67T450*100MB5.3
250*721.17320*100W3.01T450*1005.09
B250*721.03320*1063.63T450*100SB5.16
250*962.21350*52.51.85T450*100C5.2
250*1092.39350*54.52.31T450*100Z5.55
260*55.51.48350*562.05450*16310.47
260*961.91350*75.53.58485*92W7.62
260*1092.16350*901.85500*717.5
280*721.43350*1003.69500*905.38
280*1063.05350*1083.92500*927.81
300*52.5KB1.67350*1094.12500*92W8.6
300*52.5KW1.71370*1074.68500*1006.34
300*52.5N1.44400*72.5KB3.44500*1469.97
300*52.5W1.56400*72.5KW3.72600*1008.3
JD300*52.5N1.54400*72.5N3.48600*12510.39
K300*52.51.72400*72.5W3.85650*11013.34
KB300*52.5N1.55400*72.5Y3.62650*12013.75
300*531.81400*743.4650*12515.8
300*551.88400*75.54.09700*10010.9
300*55.51.95400*864.14700*12514.29
300*713.31400*902.22750*15021.34
300*721.77400*1074.95800*12519.14
  400*1427.12K800*15021.55
ASV TRACK   M800*15020.05
280*102*371.36PAVER TRACK 900*15031.23
380*102*421.9356*152.4*464.811000*15033.3
460*102*512.41483*152.4*526.07
460*102*562.49460*225*367.79SPECIAL TRACK
460*102C*512.44  6"*3.5"*280.41
510*102*512.6  10"*3.5"*280.51

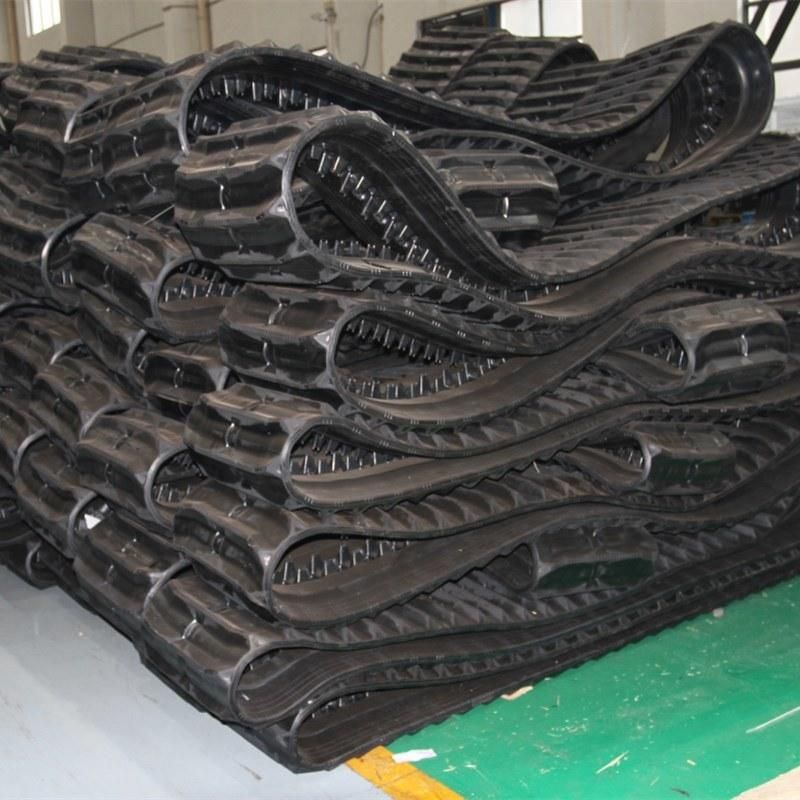

Warehouse:

Kubota DC35 Rubber Track 400*90p*43 for Agricultural Harvester
Kubota DC35 Rubber Track 400*90p*43 for Agricultural Harvester

Quality Control:

1.Ex works Inspection

2.Products Audits/Examination(Strict inspection according to customer's request)

3.Production Procedure Audit/Examination(Entire Procedure Control)

4.Raw material Inspection/Examination;Purchased Parts Inspection(Including All Purchased Material)

Rubber track warranty

2 year(18 months) or 1500 hours working time,If there is any quality problem,during the warranty period,we are responsible for the replacement of the new rubber track,just need to provide photos of the tracks as they sit on the machine and serial number on the tracks.

Company introduction:

Serving since 2000,POOYERT has been supplying the construction industry with premium grade replacement rubber track and rubber pads that can be widely applied in construction machinery,agricultural machinery and other specialized vehicles.

Made of all natural rubber and high quantity synthetic rubber compounds including carbon black,and continuous steel cords that are protected with thick vulcanized rubber,POOYERT leads the way in today's modem track manufacturing.POOYERT tracks are produces under strict quality guidelines and have ISO9001 Accredited Certification.
