Climate Control Poultry Farm Chicken House Control Panel with Controller

WEIFANG U-BEST HUSBANDRY EQUIPMENT CO.,LTD.
  • Type：Chicken Farm Equipment
  • Usage：Broiler Farm
  • Application：Chicken
  • Power Source：Electric
  • Heating and Ventilation Equipment Type：Heaters, Ventilation Fans, Cooling Pad
  • Epidemic Prevention Equipment：Spraying Line

Base Info

  • Model NO.：UBT-poultry farm
  • Blade Type：Straight Teeth
  • Computerized：Computerized
  • Certification：ISO9001:2008, CE
  • Condition：New
  • Main Feeding System：Feed Silo, Feed Hopper
  • Feeding Line System：3 or 4 Feeder Per 3m
  • Drinking Line System：12 or 15 Nipples Per 3m
  • Ventilation System：36" Box Fans, 50" Box Fans, 50" Cone Fans
  • Cooling Pad System：Cooling Pad & Aluminum Frame
  • Environment Control System：T607, T616, Imageii
  • Heating System：Space Heater, Gas Brooder
  • Spraying System：Dustproof&, Disinfection
  • Curtain System：Side Wall Curtains
  • Feeding Range：1-150m
  • Drinking Range：1-100m
  • Motor Power：0.75kw, 1.1kw, 1.5kw
  • Volt：220V, 380V
  • Lead Time：<20 Days
  • Warranty：1 Year
  • Transport Package：Standard Packages
  • Specification：customized
  • Trademark：U-Best
  • Origin：China
  • HS Code：84362900
  • Production Capacity：1000 Sets,Year

Description

Climate Control Poultry Farm Chicken House Control Panel with Controller

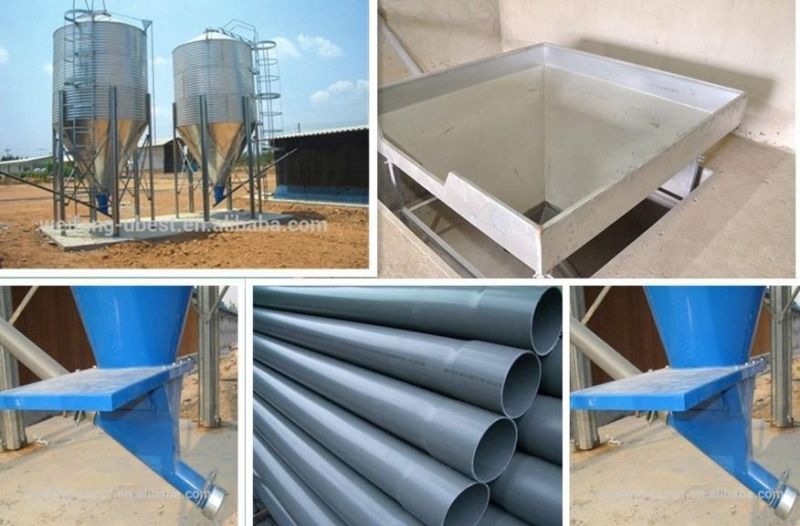

1. Main feed delivery line

(1. )Main feed delivery system is a complete set of automatic feeding system, included a material conveying pipe, silo or manpower hopper, auger, drive motor and a feed level sensor.

(2) Main Feed line is mainly used to deliver feed from silo or manpower hopper to the vice hopper in the poultry house. There is one feed sensor at the end of main feed line, which can control the drive motor on and off to realize automatically feeding.




Climate Control Poultry Farm Chicken House Control Panel with Controller2. Automatic pan feeding line system

There is a sensor at each feeding line which controls motor on and off to achieve automatically feed delivery.
The motor will start working and deliver feed when the feed pan (with sensor)
lacks feed and will stop working when the feed pan (with sensor) is full of feed.






Climate Control Poultry Farm Chicken House Control Panel with Controller
3. Automatic nipple drinking line system

This system can provide fresh and clean water for poultry which is crucial for the growth of Poultry.
The drinkers can be triggered from 360 degree which helps young birds start well and makes drinking easier.





Climate Control Poultry Farm Chicken House Control Panel with Controller4.    Ventilating system

The main parts of ventilation system is the big fan and small fan. They are controlled by the control system. The NO. of the fans to run was decided by the temperature of the poultry house.
About 200m2 need 1 big fan and 15-20m need a small fan, this is the standard to design the quantity of fans in chicken house.




Climate Control Poultry Farm Chicken House Control Panel with Controller5.cooling pad system

Cooling pad and fan, the longitudinal ventilation and cooling combination is the most economic and effective summer cooling system for poultry house.

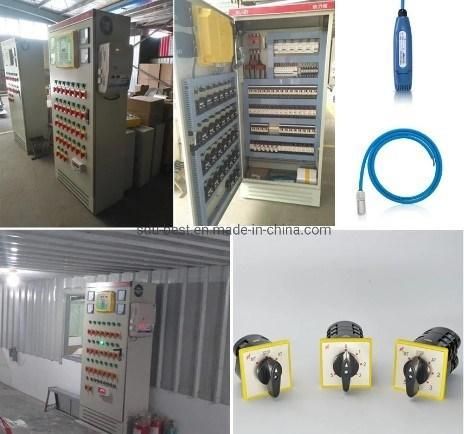

Climate Control Poultry Farm Chicken House Control Panel with Controller6.Controller & Control Panel

The ventilation control system consists of computerized controller, tempreture sensors, humidity sensors, negtive pressure sensor and alarm system.By means of the sensors and preset tempreturers, humidity, and negative pressure, the controller can regulate tempratures, moisture, wind speed and negative pressure in the house.
U-Best control panel select the world top brand electronic components Schneider, siemens & ABB to enure safety of the chicken farm.




Climate Control Poultry Farm Chicken House Control Panel with Controller7.Heating system-LB White& Damily Brooder and space heater

In winter or chicks,it make chicken house has a suitable temperature.




Climate Control Poultry Farm Chicken House Control Panel with Controller

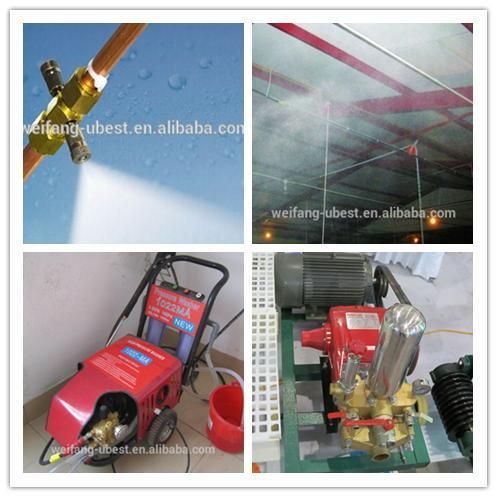

8. Fogging And Disinfection

It is effectively tools for cooling ,darmping,dedusting and dinsinfecting the house.




Climate Control Poultry Farm Chicken House Control Panel with Controller                                                                                                        (Main Customers Distribution)



Our Services For Your Project of Automatic Poultry Farm Equipment:

1. Poultry Farm Equipment: produce and supply first-class quality poultry equipment with Good Price;

2. Poultry Farm: select location, design and construction preparation guidance;

3. Layout Drawing: make layout drawing of our equipment to guide you build house and install equipment;

4. Equipment Installation: if you need, we send our engineer to your farm for guide of equipment installation;

5. Training: we can train your workers to operate our equipments and raise poultry;

6. After-sales service: free consultancy and prompt reply to questions from clients.
