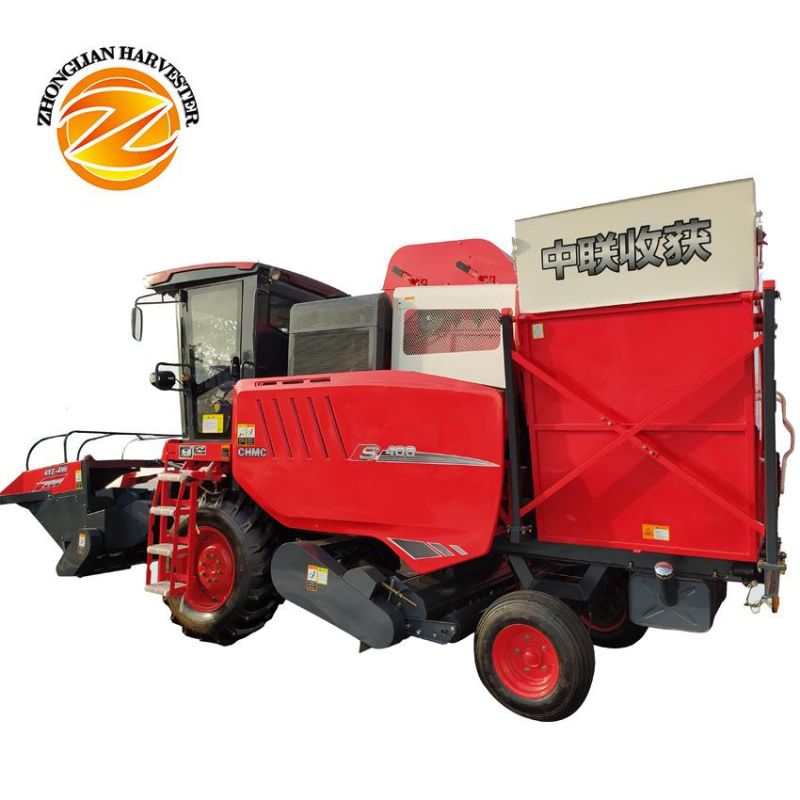

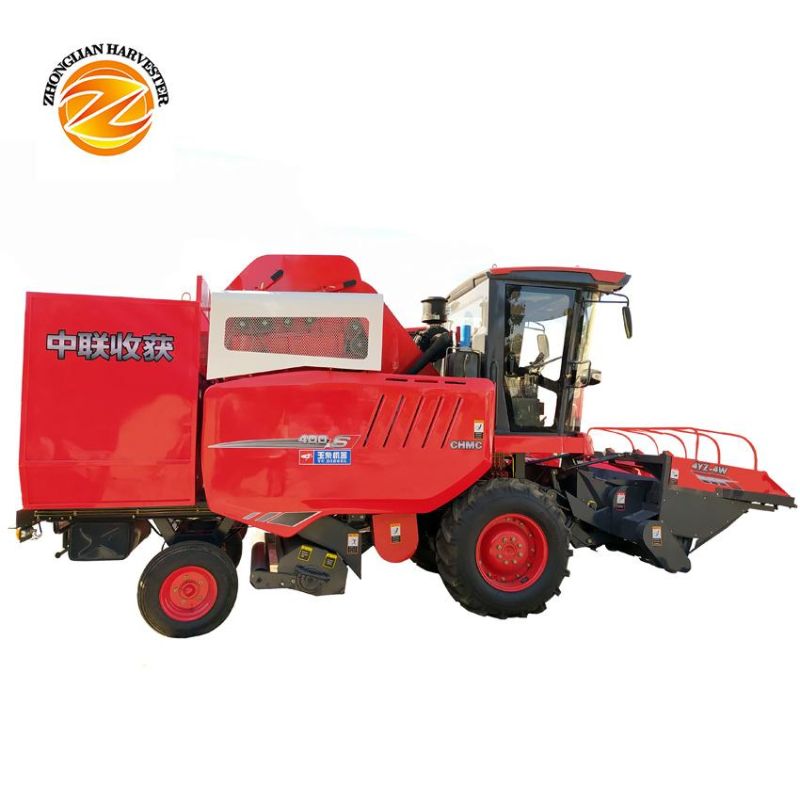

• Model NO.：CHMC Zhonglian harvester 4YZ-4W
• Application Field：Agriculture
• Warranty：One Year
• Transport Package：Container
• Specification：6392*2544*3210
• Trademark：CHMC Zgonglian Harvester
• Origin：Zhengzhou City, Henan Province, China
• Production Capacity：5000sets,Year

Basic Info.

Model NO. CHMC Zhonglian harvester 4YZ-4W Application Field Agriculture Warranty One Year Transport Package Container Specification 6392*2544*3210 Trademark CHMC Zgonglian Harvester Origin Zhengzhou City, Henan Province, China Production Capacity 5000sets/Year

Product Description

Main Feature:
1. Using straw crushing and returning device, can completely crush the corn straw and reduce the stubble height.
2. Peeling device with special design, adopt soft peeling technology,5 sets peeling device, 20 pcs rollers, metal and rubber rollers blended, this design makes peeling more clean, reduces the rate of seed damage & loss.
3. Flexible harvesting ways, suitable for different row space and different planting structure, can harvest even not in rows.
4. Assembling shake sieve and seed recycling bins, can collect the fallen corn seed, reduce loss rate.
5. Short machine body, short front-back wheel distance, small turning radius, easy to turn around in field.
6. Special cutter table, auger-type picking roller, forcelly and quickly to pull the corn stick into cutter table, not intertwine, not blocking.
7. Adopt hydraumatic side-dumping device, convenient for corn unloading.
8. Adopt closed, shock-absorbing and big-sized glass cab, comfortable and clear visibility to drive.
9. Peeling device and grain elevator with alarm system, first-time to warn the fault information.
10. Adopt visual images system to monitor grain tank and reversing, convenient, clear and safety.
11. Reserve a termination to connect air conditioner or fan.

Model	4YZ-4W
Type	Wheel type
Wheel	2 drive wheel + 2 direction wheel
Function	Picker + peeling, produce "corn cob"
Model of engine	YC4A165-T300
Power	129kw (175 hp)
Engine speed	2300-2400 r/min
Harvester rows	4 rows
Cutting width	2300mm
Harvest efficiency	0.33~0.66 hm2/h
Total loss rate	≤4%
Breakage rate	≤1.0%
Impurity rate	≤1.5%
Peeling rate	≥90%
Oil consumption	≤20kg/hm²
Minimum corn cob height from field	255mm
Granary volume	2200L
Size	6392*2544*3210mm

FAQ:

Q1.How long is the delivery date?

A:In general, we can ship the goods within 15 days after receiving your payment. Of course, it also depends on your quantity.



Q2. How can I visit your factory?

A:We are located in Zhengzhou city,middle of China,Airport&High-speed train, the transportation is very convenient



Q3: What's your main products?

A: Our products are covered rice&wheat combine harvester,corn harvester and peanut harvester.



Q4. What is your terms of payment?

A: T/T, L/C, Paypal,Western Union



Q 5: How is the quality of the harvesrter?

A : We are an experienced manufacturer which has been in this field for 30 more years, and can supply high quality harvesters for you.







Packaging & Shipping

1.We need to apart some parts from the whole machine,such as the header,cab,peeling machine,tank and so o,than it can load to the container,one 40' high container can loading one set.

2.We can deliver the goods to you by sea, by air, by express or by land transportation. We will try my best to make you get the goods faster and safe.



After-Sales Service

1.Training how to install and use the machine,engineers available to service machinery overseas.

2.Warranty period of one year since machine arrives destination port. Malfunctions which are caused by machine-self and quality will be responsible for our manufacturer. Other malfunctions which caused by operation mistakes, man-made problems, etc will be responsible for clients-self.

3. Timely response to customers' problems 7*24 hours, provide in time Feedback tracking and after-sales services to maximize the customer's satisfactory.


Our factory:
Zhengzhou Zhonglian Harvest Machinery Co., Ltd is a professional combine harvester manufacturing company which integrates product research,spare parts producing ,complete machine assembling and product after-sale service. The company was founded in 1995.The company products has 7 series and in total more than 100 types which cover peanut harvester,wheat harvester,rice harvester,corn harvester ,soybean harvester ,corn seeds harvester and silage harvester.In international market,the products mainly are exported to South Asia,Southeast Asia,West Asia,Africe and Middle Europe.
