Sg40 Multifunctional Small Hammer Mill
SHANDONG BISON MACHINE CO., LTD.- Type:Grinding Equipment
- Processing Object:Animal-Derived Feed
- Processing Technics:Crushing-before-Mixing
- Screen Mesh:With Screen Mesh
- Grinding Equipment Type:Roll Crusher
- Pellet Mill Type:Flat Die Pelletizer
Base Info
- Model NO.:SG40
- Condition:New
- Applicable Materials Shape:Powder
- Color:Selected
- Hammer Quantity:12PCS
- Finish Products:2-12mm
- Transport Package:Iron Sheet Case or Container
- Specification:CE ISO
- Trademark:YULONG
- Origin:Jinan, Shandong Province, China
- HS Code:84361000
- Production Capacity:100 sets,week
Description
Basic Info.
Model NO. SG40 Condition New Applicable Materials Shape Powder Color Selected Hammer Quantity 12PCS Finish Products 2-12mm Transport Package Iron Sheet Case or Container Specification CE ISO Trademark YULONG Origin Jinan, Shandong Province, China HS Code 84361000 Production Capacity 100 sets/weekProduct Description

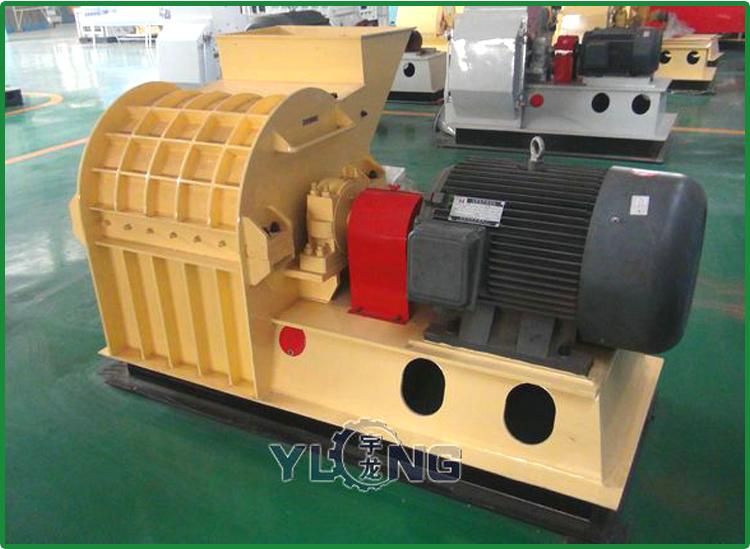

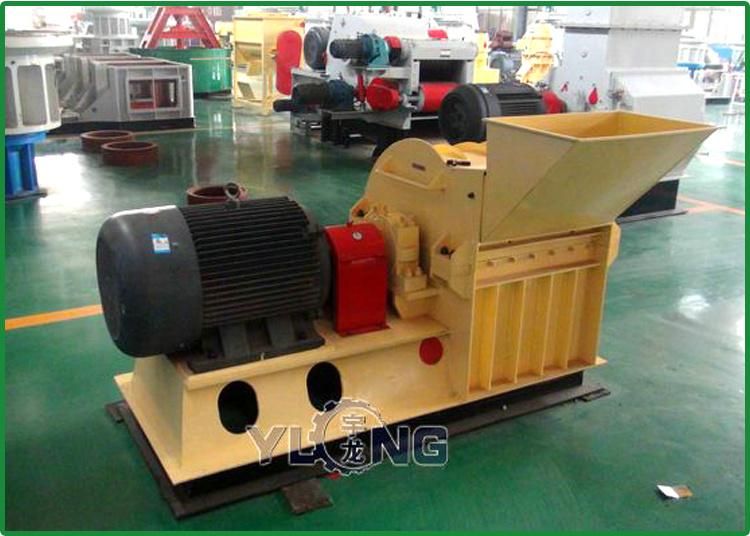

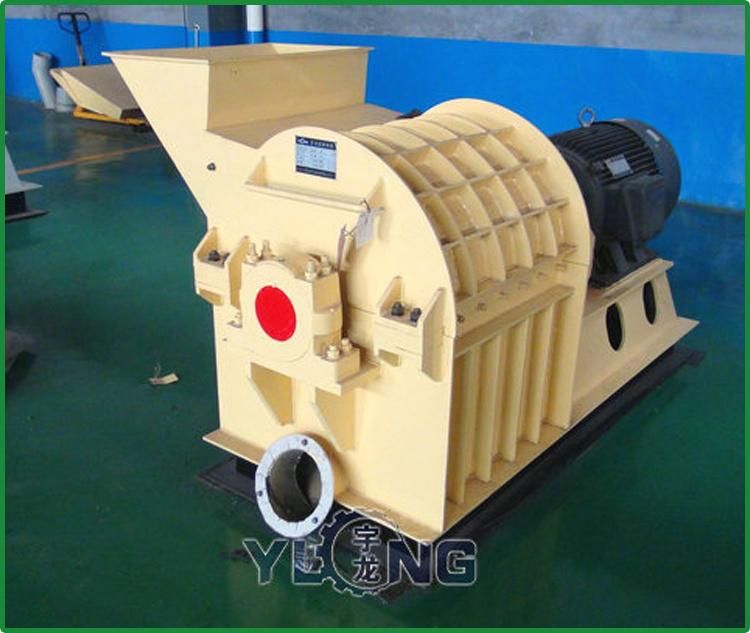

SG Multifunctional small hammer mill:1. Small hammer mill model of 40, 50, 60, 65 types is special products.
2. The small hammer mill is the most ideal grinding equipment of all kinds of stalk, weed, corn, soybean, PVC foaming board, rubber, and etc. Structure reasonable, firm durable, safe reliable, easy operation, the vibration small, and the efficiency is high.
3. The small hammer mill is widely used in the professions such as fodder factory, cultivation factory, organic fertilizer factory, Chinese medicine, chemical industry and so on.
4. We will install fit hole screener at the small hammer mill bottom according to materials moisture and Characteristics. If raw materials were high humidity, then we will send 10-20mm hole screener even no screener at the bottom, if dry, then will install 2-4mm hole screener, which means will outlet smaller than 2mm fine powder.
5. The small hammer mill spare parts hammers and screener are made by our CNC systems, through high technical heat treatment, standing out from other suppliers is that we could ensure its high precision and durable working efficiency.
6. Small hammer mill works connect with air fan and cyclone, crushed powder will outlet from cyclone bottom, which is very environmental protection and easy to collect powder.
Contact me
Grace Yuan
Model | SG40 | SG50 | SG60*27 | SG65*55 | SG65*75 |
Diameter of rotor (mm) | 400 | 500 | 600 | 650 | 650 |
Width of studio (mm) | 205 | 275 | 275 | 550 | 750 |
Rotate speed (r/min) | 3400 | 3100 | 2950 | 2950 | 2950 |
spec of screener (mm) | 675×200 | 750×270 | 940×270 | 540×1020 | 740×1020 |
Linear Velocity | 71 m/s | 81 m/s | 92 m/s | 100 m/s | 100 m/s |
Spec of hammer (mm) | 120×40×4 | 180×50×5 | 180×50×5 | 180×50×5 | 180×50×5 |
Hammer qty (pieces) | 4×3=(12) | 4×4=(16) | 6×6=(36) | 6×8=(48) | 6×18=(108) |
Related power (kW) | 7.5 | 15 | 22 | 30/37 | 45/55 |
Model of bearings | 1307 | 1310 | 2315 | 2316 | 2316 |
Wind absorbed quantity ( m/min ) | 5 | 11 | 18 | 22/25 | 33/38 |
Weight (kg) | 90 | 180 | 280 | 1200 | 1500 |
