• Model NO.：xgz-zp-061
• Condition：New
• Insulation：Fiberglass, Sandwich Panel
• Life Span：30~50years
• Design Load：Wind Speed, Snow Load, Earthquake etc
• Strucuture Anti Rust Grade：Hot DIP Galvanized
• Purlin：C Section Steel, Z Section Steel
• Size：Custermized Design
• Roof Panel：Color Steel Panel, Sandwich Panel
• Transport Package：Seaworthy Packing
• Trademark：xgz
• Origin：China Qingdao
• HS Code：9406900090

Basic Info.

Model NO. xgz-zp-061 Condition New Insulation Fiberglass, Sandwich Panel Life Span 30~50years Design Load Wind Speed, Snow Load, Earthquake etc Strucuture Anti Rust Grade Hot DIP Galvanized Purlin C Section Steel, Z Section Steel Size Custermized Design Roof Panel Color Steel Panel, Sandwich Panel Transport Package Seaworthy Packing Trademark xgz Origin China Qingdao HS Code 9406900090

Product Description



Product Description
1. Product description:

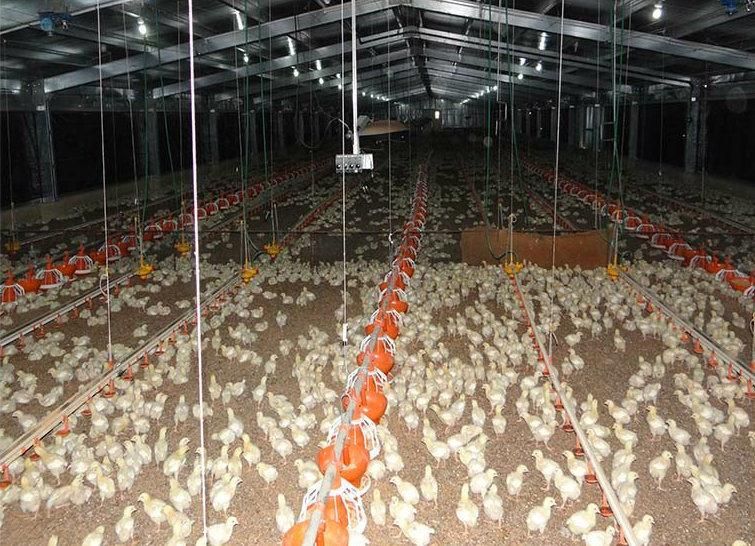

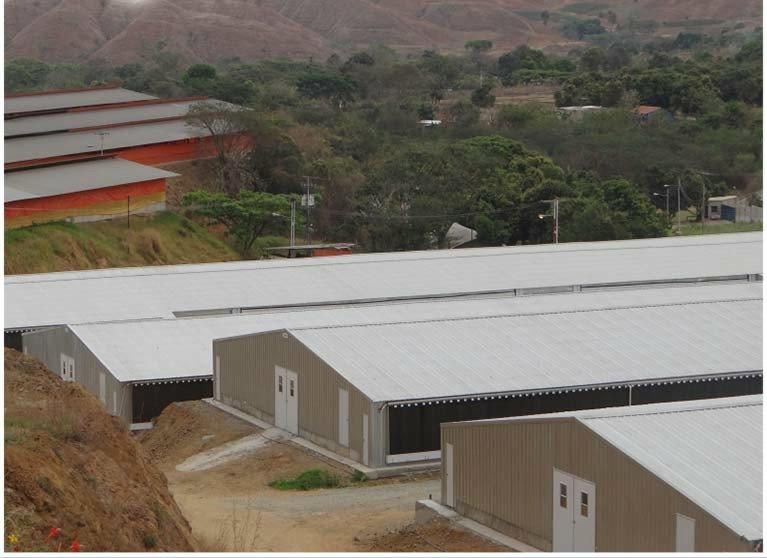

2017 China newest prefabricated chicken farm house is a new type of building structure system for chicken shed, broiler house, egg layer chicken house, etc. The main steel frame is formed by linking up Q235, Q345 steel H section, square tube, C section steel frame, and C section, Z section and U-section steel components, and the roof and wall using a variety of sandwich panels with thermal insulation or corrugated steel plate without thermal insulation.




2. Characters:

1). Posesses a wide span, with either a single or multiple spans and can have a maximum span clearance distance in 36m without middle columns.

2). Low cost with unit price ranging from USD30 to USD60 per square meter FOB according to customer's requirements.

3). Fast construction and easy installation.

4). Has a long service life of more than 50 years.

5). The warehouses are also environmentally friendly, and have a stable structure. The buildings are earthquake resistance, water proof, and energy saving.

6). Widely application: the buildings aer widely used as industry factory building, warehouse, gymnasium, poultry shed, school and medical clinic, garage, hangar, etc.

3. Main components:

Main Steel Frame	H section or C section steel	Q345 steel 8mm/10mm
2	Welding	Automatic Submerged Arc Welding
3	Rust removing	Sand blasting
4	Surface processing	Alkyd Paint or galvanized
5	Intensive bolt	Grade 10.9
Supporting System	Angle Brace	L50x4,Steel Q235, Process and Painting
2	Cross Support	Φ20, Steel Q235, Process and Painting
3	Belt Bar	Φ89*3, Steel Q235 Process and Painting
4	Small Brace	Φ12,Steel Q235 Process and Painting
5	Ordinary Bolt	Galvanized Bolt
Roof	Purlin	C160*60*2.5,Steel Q235, painting and Galvanized
2	Out-roof Panel	Sandwich Panel or corrugated steel plate
3	Transparent lighting panel	6mm thick PVC
4	Accessories	Glass glue, self-tapping screw etc.
5	Edge Cover	Made of color steel sheet thickness 0.5mm
6	Gutter	Made of steel sheet thickness 0.8mm
7	Rainspout	Φ110PVC
Wall	Purlin	C160*60*2.5,Steel Q235, Paint
2	Wall	sandwich panel or corrugated steel plate
3	Accessories	Glass Cement, Self-tapping Screw etc.
4	Edge Cover	Made of color steel sheet thickness 0.5mm

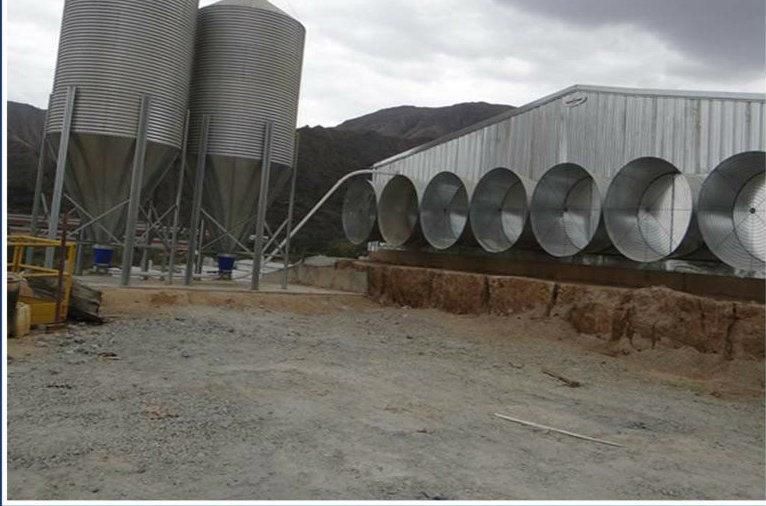

5	Axial fan	Axial Fan
6	Door	Rolling door/sliding door
7	Window	PVC / alu / steel frame window
8	Crane	With or without crane in 5 tons to 20 tons

4. Design Common Norms:

1). Steel Design Code"(GB50017-2003)

2). Cold-formed steel structure technical specifications "(GB50018-2002)

3). Construction Quality Acceptance of Steel "(GB50205-2001)

4). Technical Specification for welded steel structure"(JGJ81-2002,J218-2002)

5). Technical Specification for Steel Structures of Tall Buildings"(JGJ99-98)

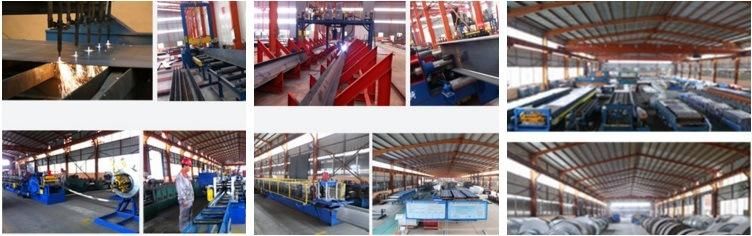

5. Our workshop and production equipments:

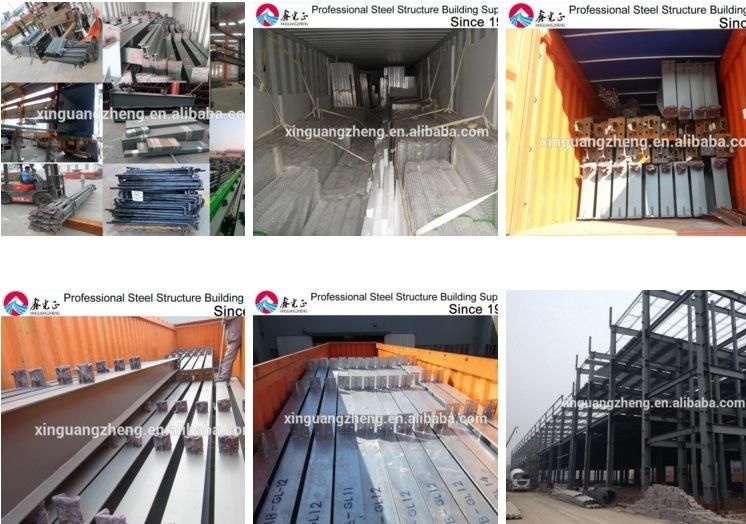

6. Loading goods pictures:
The goods will be loaded into shipping container
