• Model NO.：MXGJ-19
• Transport Package：Paper Box
• Trademark：VIC
• Origin：Chia
• Production Capacity：10000set,Year

Basic Info.

Model NO. MXGJ-19 Transport Package Paper Box Trademark VIC Origin Chia Production Capacity 10000set/Year

Product Description

Mini  Farm Tiller With Double Wheel1.IntroductionThe tiller is designed according to the hills, mountains, small plots, high height difference, and inorganic cultivation.
The tiller features front-wheel drive for easier operation. Suitable for loose soil and weeding of sandy cash crops. Widely used in field farming, plastic greenhouses, tobacco, nursery, orchard management, tea and other planting operations.
The tiller has the advantages of light weight, small volume, simple structure, convenient operation, easy maintenance, low fuel consumption and high production efficiency.
The tiller uses a fully enclosed fender for safer and more secure use.
The tiller is driven by a gasoline engine, and the power is transmitted to the cutter head through the transmission device to drive the cutter disc to rotate, thereby completing the loosening and weeding operations.

2.Technical Parameters

Model	MXGJ-19
Engine	1E44F
Power	1.9KW
Engine speed	6500r/min
Exhaust volume	50CC
Gasification form	Diaphragm
Fuel ratio	25:1
Engine idle speed	2800-3200r/min
Fuel tank capacity	1200ml
Blade diameter	25mm
Tillage width	35mm
Tillage depth	6-11mm
Startup mode	Hand start
Weight	20kg

3.More pictures:Thick steel knife wear resistance

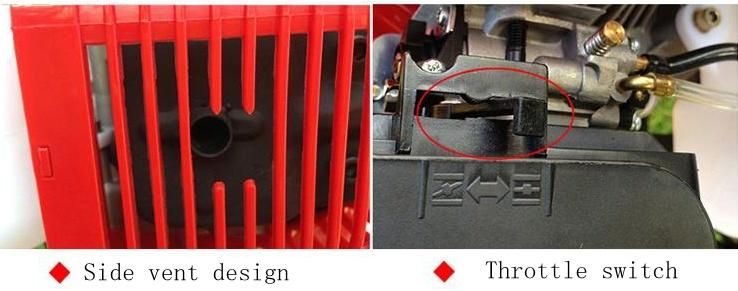

Vent and throttle switch


Start and cluth

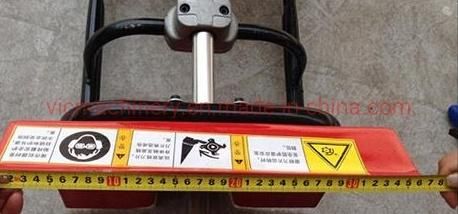

Widened baffle prevents grass and dirt

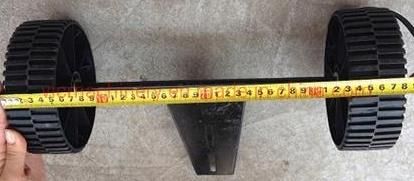

15mm diameter double rear wheel design is more labor-saving


Other similar machine:



Our factory:
