• Model NO.：FDSP series
• Pellet Mill Type：Ring Die Pelleter
• Bulking Machine Type：Twin Screw Bulking Machine
• Expanding Method：Wet Expansion
• Condition：New
• Applicable Materials Shape：Granular
• Warranty：1 Year
• Raw Material Could Be：Corn ,Wheat ,Bran, Rice Meal, Grass Meal etc
• Voltage：380-440V
• Motor Brand：Siemens
• Equipment Needed：Hammer Mill,Mixer,Pellet Mill,Cooler,Crumbler etc
• Power：1400kw
• Oil Seal：Made in Germany
• Pelleted Feed Size：6mm 8mm 10 mm
• Size：24.5*22.5*35m
• Capacity：40tph
• Application：for Making Feed Pellets
• Transport Package：Iron Pallet and Soft Guard
• Specification：2000KG
• Trademark：FDSP
• Origin：China
• HS Code：84361000
• Production Capacity：10 Sets,Month

Basic Info.

Model NO. FDSP series Pellet Mill Type Ring Die Pelleter Bulking Machine Type Twin Screw Bulking Machine Expanding Method Wet Expansion Condition New Applicable Materials Shape Granular Warranty 1 Year Raw Material Could Be Corn ,Wheat ,Bran, Rice Meal, Grass Meal etc Voltage 380-440V Motor Brand Siemens Equipment Needed Hammer Mill,Mixer,Pellet Mill,Cooler,Crumbler etc Power 1400kw Oil Seal Made in Germany Pelleted Feed Size 6mm 8mm 10 mm Size 24.5*22.5*35m Capacity 40tph Application for Making Feed Pellets Transport Package Iron Pallet and Soft Guard Specification 2000KG Trademark FDSP Origin China HS Code 84361000 Production Capacity 10 Sets/Month

Product Description

Poultry Chicken Feed Production Line Professional Factory
Poultry & livestock feed is generally refers to the food for farmed poultry and livestock , it is the conventional feed in the feed classification.

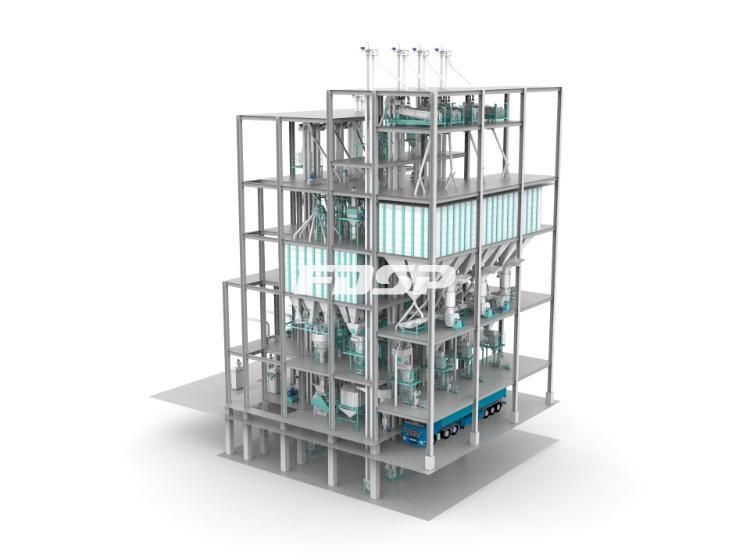

four-line SZLH420(20tph) poultry and livestock feed production line

Raw material:

The conventional raw material of poultry& livestock feed includes corn, wheat, barley, oats, sorghum, soybeans, soybean meal, fish meal, amino acids, mixed meals, whey powder, oil, meat and bone meal, grain, feed additives and so on more than 10 varieties of feed raw materials.

Introduction of process:

The features of poultry & livestock feed are moderate grinding fineness(screen hole diameter 2-4mm),moderate curing and conditioning requirements(pellet mill adopts two layers conditioners),finished products with big pellet diameter(pellet diameter is around 2.5-4mm).

Four lines of SZLH420 poultry & livestock feed process is with 40tph capacity, it adopts three grinding lines, two batching & mixing lines, four pelleting lines and four packing lines. The total equipment power is around 1400kw. The construction area of the production area is about 24.5×22.5×35m, it equipped with 3T boiler. The whole line is compact in design, reasonable in structure, meeting the requirement of environmental protection, and can be customized designed according to the requirements of customers.

Process diagram:

Raw materials receiving and cleaning section--Grinding section --Batching & mixing section--Pelleting section--Packing section/in bulk --Auxiliary section

Process introduction:

Raw materials receiving and cleaning section:

In this section, pellet feeding cleaning and powder feeding cleaning are separated independently and separate dust removal. Dust removal effect is good.

Cleaning equipment:granules sifter SCY100,capacity 30-50T/H;powder cleaner SQLZ90X80X110, capacity 30-50T/H.

Grinding section:

This section adopts three hammer mills, and each set allocated with two pre-grinding bins, which can grind different materials at the same time and improve the efficiency. Before entering the bins, the impurities are removed by magnetic separation device to ensure the safe operation of the hammer mill.

Grinding equipment(3sets): Hammer mill SFSP668×1000, 132kw, designed to produce 15-18t /h/set(¢3.0mm screen hole).

Batching and mixing section:

This section adopts 36 batching bins, 4 of them are shared.There are 2 sets of batching and mixing systems. Each set of batching system is allocated with 2 sets batching scales which can work at the same time. It is developed by our company to realize accurate fast and slow feeding, fast batching and high precision.

Weighing equipment: Dosing scale PCS20/PCS10, dosing precision: dynamic ≤3‰, static ≤1‰.

Mixing equipment(2sets): mixer SHSJ4, (30KW, 2000kg/ batch), designed to produce 20-30t/h/set. Mixture uniformity CV ≤5%

Pelletizing section:
This section adopts four sets of double-layer conditioner pelletizer, and each set with two pre-pelleting bins, which is convenient to switch between varieties. After pelleting, they are respectively entered into the cooler, crumbler, and the elevator into the rotary screener in order to be screened, and the finished products are put into the packing bins. The sieved out powder material back to granulation, sieved out large particle material back to crumbler.

Pelleting equipment(4sets) : SZLH420, 110KW, designed to produce 10-12t/h/set.

Cooling equipment(4sets) : SKLN6, designed to produce 10-15t/h/set.

Packing section:

There are 16 finished product bins in this section, 8 bins of them are specially used to store pellet feed; 4 bins of them are both for powder material and particle material. The powder material finished products bins are designed special anti - grading device. The pellet or powder is automatically weighed and packed by the packing scale. There is also bulk trucks for packing and transportation.

Packing equipment: Belt scale (it can be used as powder feed or granule feed), packing range: 20-50kg/ bag, 6-8 bags/minute.

Auxiliary section: Dust removal system to improve workers' working environment; Grease adding system, common mixer place added to improve feed palatability.
