• Model NO.：4QZL-1600
• Portable Harvester Type：Backpack Type
• Certification：QS, ISO9001:2008
• Color：Red
• Condition：New
• Application Field：Agriculture
• Working Width：1400mm
• Power：130HP
• Delivery Time：20days
• Working Speed：6 Km,Hour
• Transport Package：40′ Contaienr Can Load 2 Set
• Specification：SGS
• Trademark：SH
• Origin：Shangdong
• HS Code：8433510090
• Production Capacity：3000 Sets,Year

Basic Info.

Model NO. 4QZL-1600 Portable Harvester Type Backpack Type Certification QS, ISO9001:2008 Color Red Condition New Application Field Agriculture Working Width 1400mm Power 130HP Delivery Time 20days Working Speed 6 Km/Hour Transport Package 40′ Contaienr Can Load 2 Set Specification SGS Trademark SH Origin Shangdong HS Code 8433510090 Production Capacity 3000 Sets/Year

Product Description

Small/mini/micro Combining/combine/crawler/ Track Type Belt Type Corn Harvester

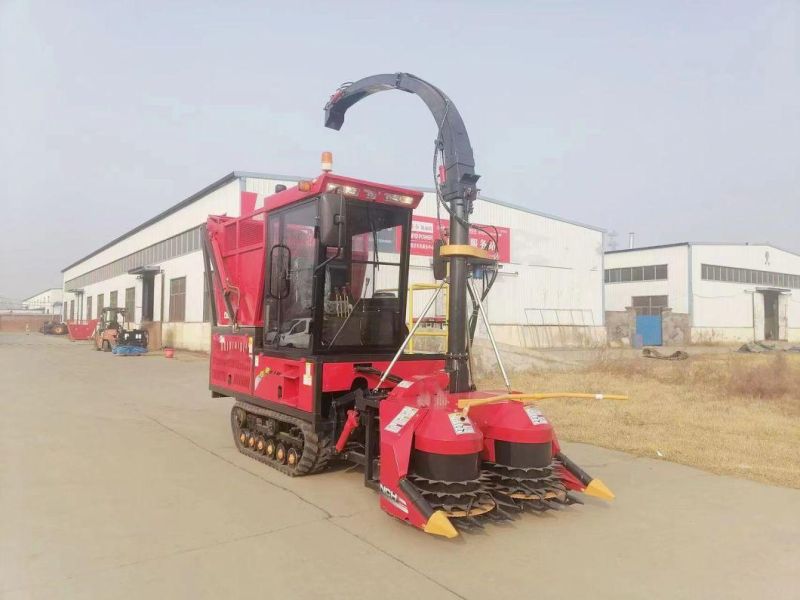

SH Series 4QZL-1600   Crawler Green harvester Feature and Specification

NO	ITEM	UNIT	DETAILS
1	MODEL	/	4QZL-1600 Green harvester
2	TYPE	/	Track type
3	Dimensions in working state (length × width × height)	mm	5200×1680×4200
4	Matching engine rated power (self-propelled, traction type with engine)	kW	95.6
5	Matching engine rated speed (self-propelled, traction type with engine)	r/min	2400
6	cutting width	mm	1550
7	Crop Collection Header Type	/	Straight cutting table
8	Header cutter type	/	Disc cutter
9	Type of feeding mechanism	/	feed roller
10	Number of feeding institutions	pcs	4
11	Straw Chopping Mechanism Type	/	disc
12	Type of grain crushing mechanism	/	kneading board
13	Cab type (self-propelled)	/	ordinary cab
14	Transmission mode (self-propelled)	/	manual transmission
15	Drive mode (self-propelled)	/	Hydraulic drive
16	Brake type (self-propelled)	/	Built-in wet friction lining
17	Track width (self-propelled)	mm	280
18	Track ground length (self-propelled)	mm	1400
19	Gauge (self-propelled)	mm	1240
20	Working speed range	km/h	1-3
21	Design cut length	mm	15

Structural features
1. Compact structure, good mobility, no manual to clear the way, can complete corn crop snapping, transportation, bract stripping ear, ear closed container, straw chopper or collect the whole process.
2. it pulled the chain using forced feeding technology to solve a variety of problems spacing adaptability.
3. Pull stalk rolls, snapping plate Abstract simple ear device structure, small size, light weight, low grain loss, high production efficiency.
4. High efficiency automatic dial transdermal devices, straw chopped to field devices.
5. Pre-peeling machines, branches dial skin, to prevent clogging
6. It is the shortest, lightest, most full-function self-propelled two-row harvester.
7. Adjustable front and rear tracks
8. Dual link, slider lift mechanism, increase stability and lifting height of the cutting table.
9. Hydraulic steering flexible and comfortable operation
10. Rear cargo hopper, hydraulic unloading the corn
11. Main gear lever on the right side of the steering wheel, convenient and comfortable for changing gear.
