• Model NO.：SKJZ3000
• Pellet Mill Type：Ring Die Pelleter
• Bulking Machine Type：Sigle Screw Bulking Machine
• Expanding Method：Dry Expansion
• Condition：New
• Applicable Materials Shape：Granular
• Warranty：1 Year
• Output：1-3tph
• Power：87kw
• Size：12*6*8m
• Application：for Making Pellet and Mash Feed
• Cleaning：Crushing-Mixing-Pelletizing-Cooling-Sieving
• Feed：for Livestock, Poultry Fee
• Transport Package：Pallet
• Specification：1000KG
• Trademark：FDSP
• Origin：Jiangsu China
• HS Code：84361000
• Production Capacity：5 Sets,Month

Basic Info.

Model NO. SKJZ3000 Pellet Mill Type Ring Die Pelleter Bulking Machine Type Sigle Screw Bulking Machine Expanding Method Dry Expansion Condition New Applicable Materials Shape Granular Warranty 1 Year Output 1-3tph Power 87kw Size 12*6*8m Application for Making Pellet and Mash Feed Cleaning Crushing-Mixing-Pelletizing-Cooling-Sieving Feed for Livestock, Poultry Fee Transport Package Pallet Specification 1000KG Trademark FDSP Origin Jiangsu China HS Code 84361000 Production Capacity 5 Sets/Month

Product Description

Factory Supply Poultry Feed Production Line Small Feed Pellet Plant Line
Jiangsu Liangyou Zhengda Co., Ltd. is professional in manufacturing feed machinery and projects. Our company is able to provide turn-key projects for all kinds of feed production like poultry feed, livestock feed, ruminant feed, ordinary aquatic feed, special aquatic feed, extruded aquatic feed, premix, pet food, etc.
The following introduction and instructions are based on SKJZ3000 feed set.

Definition of 'feed set':
Feed set is short for manual feeding small feed production set, of which the capacity is usually less than 5 tons per hour. It takes modular design to make it easier to load, ship and install. Also, this feed set can save budget and get repaid more quickly. In this modular structure, feed set takes up less area, need lower requirements for workshop, and costs less for basement investment. Also, buyers can customize according to their specific needs. Feed set is particularly suitable for small feed plants or farms.

Brief introduction of processing flow:
SKJZ3000 feed set takes manual way of adding raw materials. Its designed capacity is 2-3T/H for powder feed and 1-1.5T/H for pellet feed. During the processing, raw materials need weighing ahead, and then will be put into the production line from two different feeding gates. Materials which need grinding will be put into the hammer mill from pellet feeding gate by lot. Materials which don't need grinding will be put into the line from powder feeding gate. The materials having been mixed can either be sent directly into product bin as powder feed or be sent into pelletizing process to be pelletized and cooled to be pellet feed, which need manual scaling and packing.

The total power of this feed set is about 87kw, taking an area of 12*6*8m, equipped with 0.2T boiler. The whole feed set takes joint frame that is in tight design, reasonable structure and is eco-friendly. Also, the feed set can be specially designed according to buyers needs.

Introduction of technical features and processes:



Raw material receiving and cleaning process:
Pellet and powder raw materials will be put into the production line separately from two different feeding gates. Pellet raw materials will be cleaned by pre-cleaner and then put into hammer mill. Powder raw materials need cleaning ahead.

Grinding process:Taking FDSP tear-circle hammer milll which can make both coarse grinding and fine grinding, the feeder is combined together with the pre-cleaner which can clean the material and also feeding into the hammer mill, variable frequency control, evenly feeding and equipped with pulse filter. Mechanical induct discharging. The process is simple and with low cost, it is suitable for small capacity and multi type of material's grinding.
Grinding machine: SFSP568-I, 22KW, designed capacity 2-3T/H.

Mixing process: Above the mixer, there is a bin for mixing that can make the production continuous. Materials having been mixed can be sent to bin for pelletizing or product bin, which satisfied the production need of both powder feed and pellet feed.
Mixing machine: Double shaft paddle mixer FHSJ0.5, 5.5KW, 250KG/LOT, designed capacity 2-3T/H. Mixing evenness CV≤5%.

Pelletizing process: Taking one pellet mill with single conditioner which is suitable for normal poultry feed and ruminant feed production. Finished pellets will be sent into cooling and vibrating sieve and then be packed.
Pelletizing machine: Pellet Mill SZLH25, 22KW, designed capacity 1-1.5T/H(¢3.5 ordinary chicken feed formula)
Cooling machine: Counter flow cooling sieve SNSZ120, designed capacity 1-2T/H.

Auxiliary Process: equipped with liquid adding system, oil can be added in mixer to improve the palatability of feed; equipped with air compressor, which provide compressed air for pneumatic parts of the production line.

According to individual needs of different buyers, the solution can be optimized:
1. Considering the small capacity demand, Instead of powder material cleaning system designed in this feed set, we choose manual pre-cleaning, but customer could require to add this cleaning system based on needs
2. There is mesh feed bins and pellet feed bins both in feed set, if customer do not need the mesh feed we can remove it.

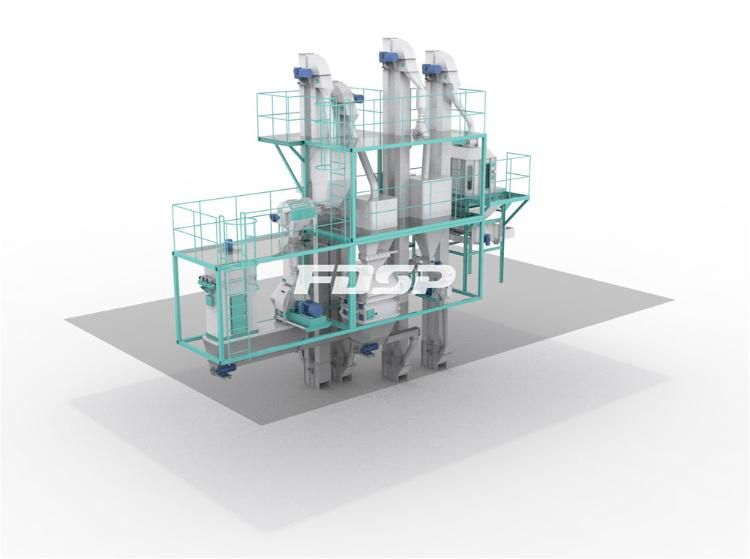

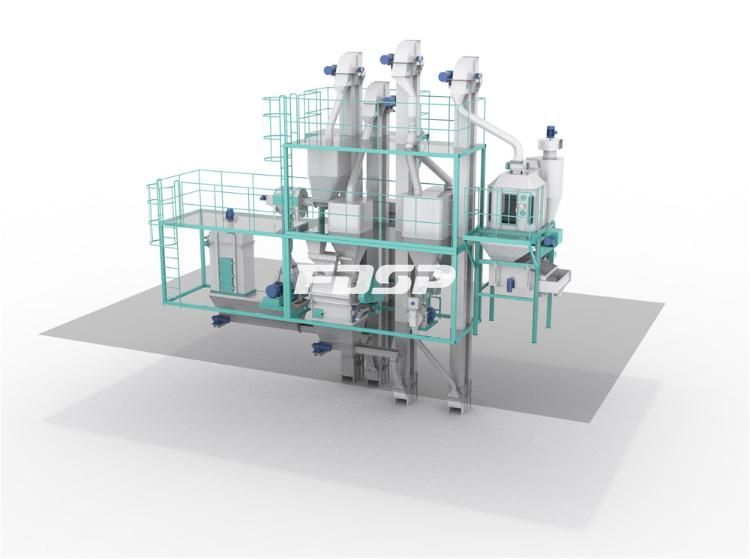

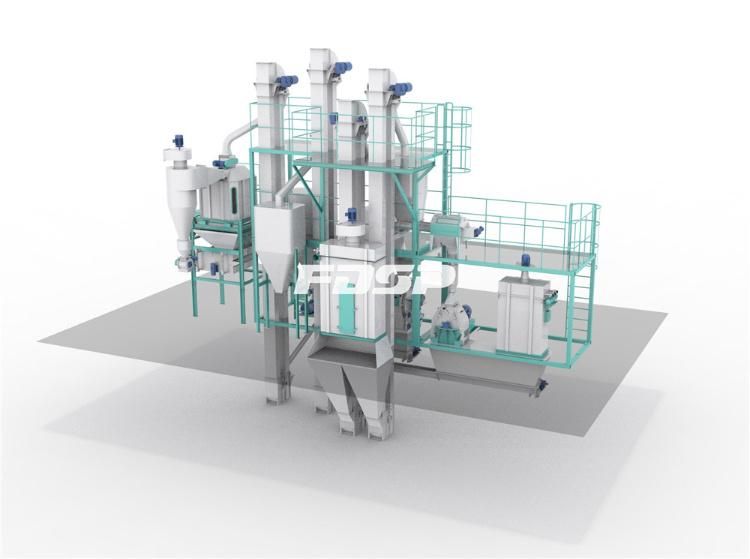

Product Show:



FDSP Workshop:

About Us:





FAQ
1.Q: How can I trust on your quality?
Answer:
1). All of the machine be tested successfully in Liangyou workshop before shipment.
2). The working lifespan of Liangyou machines is at least 20 working years.

2. Q: Does your company provide Engineers Abroad Service?
Answer: Sure, we provide it. And we can provide free training for on-site workers.

3. Q: How to train our staff about operation and maintenance?
Answer : We will provide every detailed technical instructive, pictures, videos to teach them for the operation and maintenance. In addition, our engineers for guide assembly will teach your staff on site.

4. Q:What shipment terms you offer?
Answer: We can offer FOB, CIF, CFR etc based on your request.

5. Q:What payment terms you take?
Answer: T/T, LC ,D/A,D/P etc.
