China Professional Factory Swung Drop Hammer Heavy Duty Ventilation Exhaust Fan Wall Window Mounted Poultry House Animal Husbandry Livestock Equipment
Shandong Yuyun Sanhe Machinery Co., Ltd.- After-sales Service：2 Years
- Type：Poultry House, Greenhouse, Industrial Factory
- Usage：Ventilation and Cooling Equipment
- Application：Chicken Pig Cow
- Power Source：Electric
- Heating and Ventilation Equipment Type：Air Duct
Base Info
- Model NO.：DJF(a)
- Certification：ISO9001:2008, CE
- Condition：New
- Warranty：2 Years
- Shutter Opening Systme：Drop Hammer, Weight Hammer
- Frame Material：Galvanized Sheet
- Zinc Coating：275g,Sqm
- Blade：Stainless Steel 6PCS
- Belt Tensioner：Advanced Belt Tensioner
- Belt：Jananese Mitsubishi
- Bearing：Imported Bearing
- Shutter：8PCS
- Motor：Good Quality Chinese Motor
- Belt Pulley：High Strength Aluminum-Magnesium
- Size：1380*1380*400mm 50inch
- Install：Wall Window Mounted
- Name：Heavy Duty Drop Hammer Ventilation Exhaust Fan
- Apply：Animal Husbandry Livestock Equipment
- Transport Package：Standard Paper Carton
- Specification：11 specifications
- Trademark：Yuyun Sanhe
- Origin：China(Mainland)
- HS Code：8414809090
- Production Capacity：300PCS,Day
Description
50 / 60
Product Description:

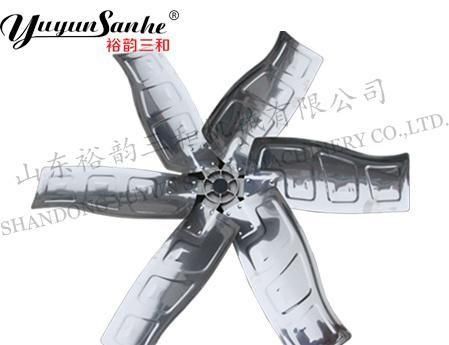

Fan blades
1. Material : 430 stainless steel, thickness 1.2mm
2. Diameter: 1270mm
Advantage:
Large air flow, no deformation, no fracture, no dust, attractive and durable.
Note:
Blade material also have galvanized sheet, aluminum alloy for option
Belt Pulley
1. Material: High strength aluminum-magnesium alloy by die-casting.
2. Blast-sanding treatment, eliminate internal stress to improve its own rigidity and stability
Advantage:
Light weight, Low vibration ,attractive appearance.

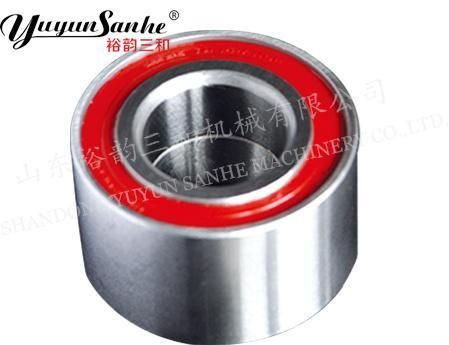

Bearing
Imported double-row bearing with special waterproof design.
Advantage:
High strength, low noise, free maintenance and long service life.
Opening System
1.Material: High quality Nylon PA66
2.Guide Rod: 304 stainless steel with special material outside, high strength, no rust, reduce friction.
3.Rivet: 304 stainless steel , wear-resisting, no rust.
Advantage:
It can keep the shutters open at complete 90 degree to ensure the lowest air resistantce and biggest air volume.

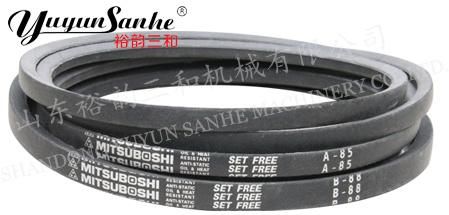

Belt
Brand: Mitsuboshi belt (Japanese)
Type: A type
Advantage:
Famous brand, Long service life, maintenance free

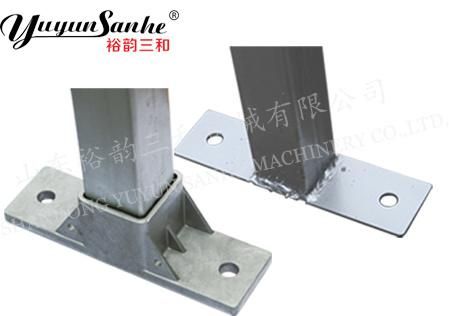

Blade Support Base
1.Material: Aluminum Magnesium Alloy.
2. Type: Plug-in connection
Advantage:
Compare with the traditional welding connection , Our new type Aluminum magnesium alloy base has greatly reduced the friction coefficient, fixed more firmly, avoided
Motor
1. Brand: Chinese famous motor, Siemens motor, ABB motor and WEG motor
2. Motor Protection Grade: IP55
3. Isulation Class: F grade
Advantage:
Motor voltage and frequency can be customized.
Chinese famous motor OEM by special design for fan, the first put in the phase lack protection device which would power off when shortage of electricity.

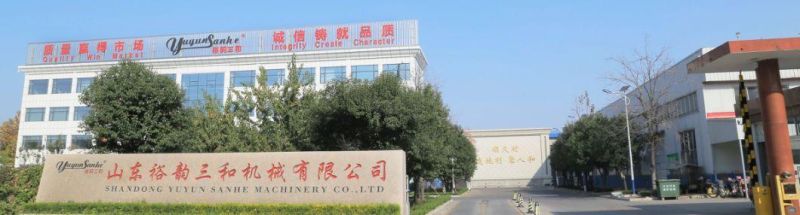

About our Company
Shandong Yuyun Sanhe Machinery Co.,Ltd is the biggest and the most professional manufacturer of ventilation equipment in

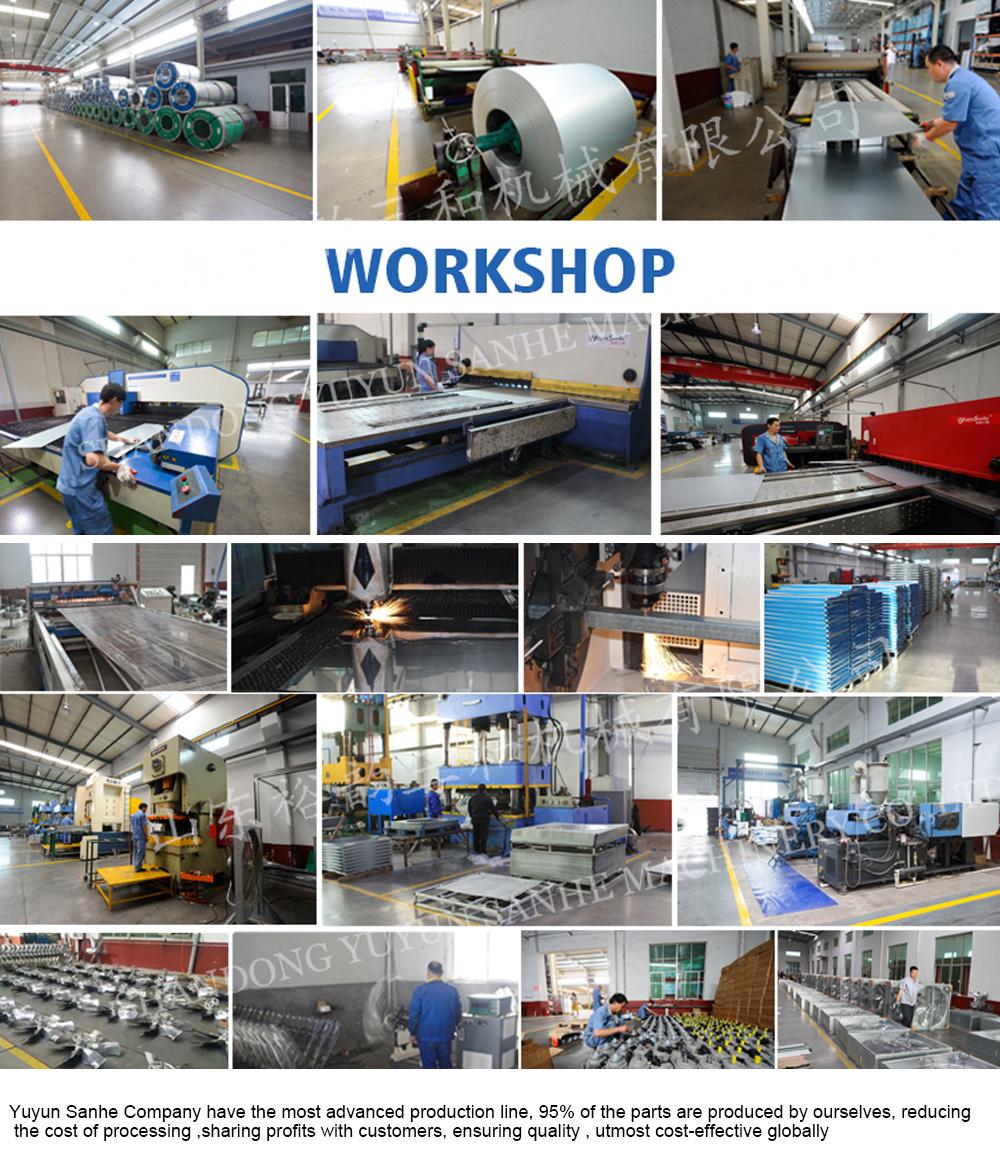

China,equipped with the most advanced CNC production lines and laser cutting machines, top quality level in the industry.
