• Model NO.：5XZ-6
• Transport Package：Wooden Case or Container
• Specification：ISO9001-2008, TUV, SGS SONKAP
• Trademark：SYNMEC
• Origin：China
• HS Code：84371090
• Production Capacity：1000 Set,Year

Basic Info.

Model NO. 5XZ-6 Transport Package Wooden Case or Container Specification ISO9001-2008, TUV, SGS SONKAP Trademark SYNMEC Origin China HS Code 84371090 Production Capacity 1000 Set/Year

Product Description

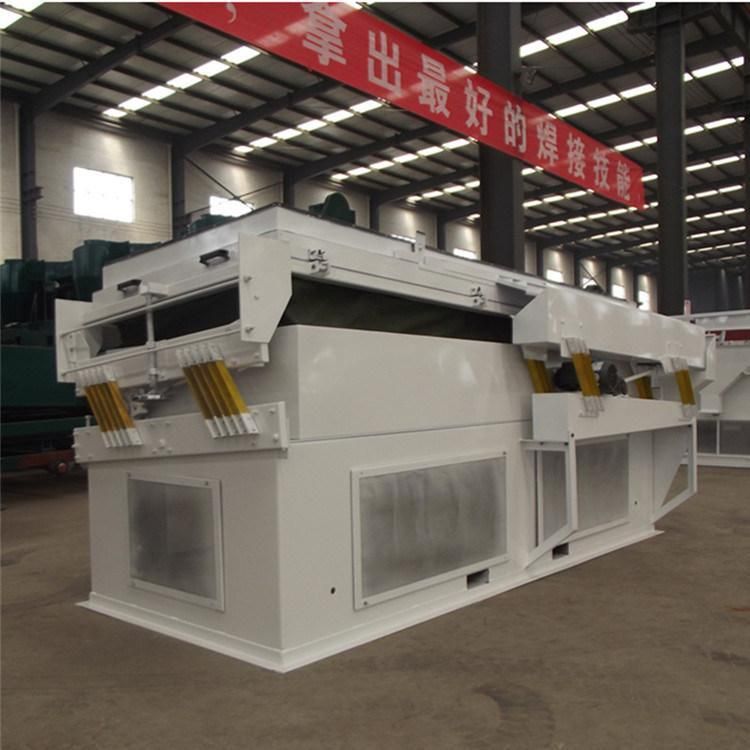

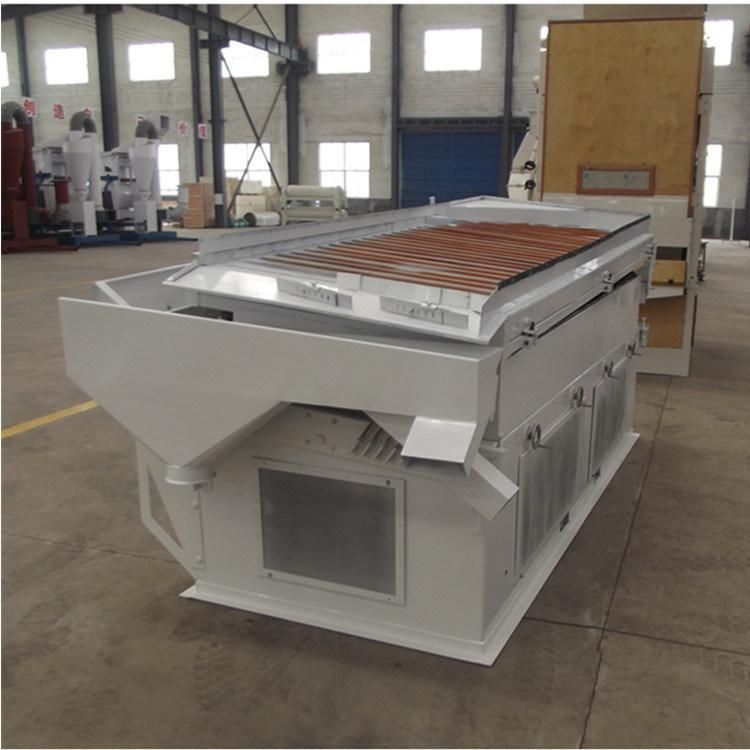

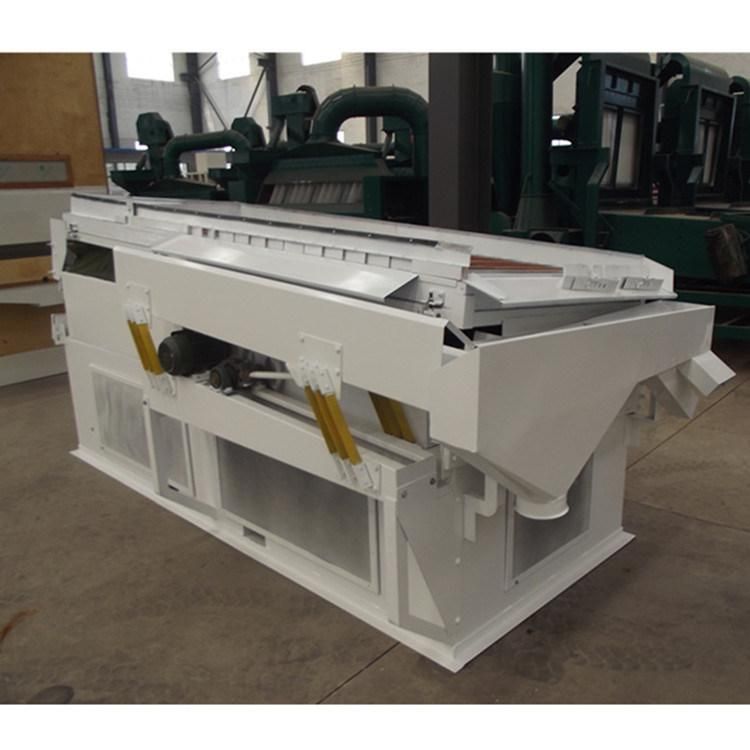

Introduction of Gravity Separator
Gravity Separator is the blowing type High Quality Stanard Gravity Separator, used for separating grain and seed which have same shape but different in gravity, finally obtain the best seed which will be used for sowing.

Application of Gravity Separator
The High Quality Stanard Gravity Separator can efficiently remove moldy kernel, immature shriveled, insect damaged seed or broken seed to ensure maximum quality of the final product. The High Quality Stanard Gravity Separator can be used to separate all kinds of seed and grains, such as coffee bean, cocoa bean, peanuts, corn, peas, beans, rice, wheat, sesame etc.
The High Quality Stanard Gravity Separator also has wide applications, from heavy industrial materials like glass, stone, metal and sand, to lighter agricultural seeds beans and nuts.

Working Principle of Gravity Separator
The High Quality Stanard Gravity Separator works on a fluidized bed principle. Materials is fed on oscillating sieve deck. By the pressure of air & deck oscillation, material is fluidized and stratified. Heavy fraction sink into the deck while light fraction is suspended in fluidized state. Deck oscillation causing heavy and light fraction travel in separated path and collected separately.

Model	Capaciy(KG/H)	Power(KW)	Dimension(mm)	Weiht	Remark
5XZ-3	3000	13.2	3800*1410*1600	1800	3 mute air blower
5XZ-6	5000	8.95	3900*1700*1750	2000	4 mute air blower
5XZ-10	10000	15	4300*1960*2500	2500	6 mute air blower

FAQ:
1.Q Are you the factory?
   A Yes, We are a professional grain cleaning machine manufacturers.
2.Q Can you ship to my country?
   A Yes, no problem.
       We can ship your cargo to worldwide.
3.Q How long does the cargo to delivery to my address?
   A It takes about 25-35 workdays to arrive your address by sea.
4.Q Do you help to install the machines?
   A Yes, no problem.we will send our senior engineers to take charge the installation, test running, and training local operators.
