• Model NO.：IGN90, 105, 125, 135, 150, 180
• Drive Type：Gear Drive
• Arbor Configuration：Horizontal Axis
• Certification：CE
• Color：Customize
• Model：Ign90, 105,125,135,150,180
• Net Weight：250kg, 265kg, 285kg, 300kg, 320kg, 350kg
• Gross Weight：285kg, 300kg, 320kg, 342kg, 362kg, 397kg
• Tilling Width：895mm, 1045mm, 1245mm, 1345mm, 1495mm, 1795mm
• Tilling Depth：150mm
• No. of Blade：18, 24, 30, 30, 36, 42
• Pto Turning Speed：540 R,Min
• Tractor HP：16-20HP, 20-28HP, 25-30HP, 25-30HP, 30-50HP, 40-75
• Transport Package：Steel Crates
• Specification：CE Standard
• Trademark：Kaideli
• Origin：Changzhou, China
• Production Capacity：50PCS,Month

Basic Info.

Model NO. IGN90, 105, 125, 135, 150, 180 Drive Type Gear Drive Arbor Configuration Horizontal Axis Certification CE Color Customize Model Ign90, 105,125,135,150,180 Net Weight 250kg, 265kg, 285kg, 300kg, 320kg, 350kg Gross Weight 285kg, 300kg, 320kg, 342kg, 362kg, 397kg Tilling Width 895mm, 1045mm, 1245mm, 1345mm, 1495mm, 1795mm Tilling Depth 150mm No. of Blade 18, 24, 30, 30, 36, 42 Pto Turning Speed 540 R/Min Tractor HP 16-20HP, 20-28HP, 25-30HP, 25-30HP, 30-50HP, 40-75 Transport Package Steel Crates Specification CE Standard Trademark Kaideli Origin Changzhou, China Production Capacity 50PCS/Month

Product Description

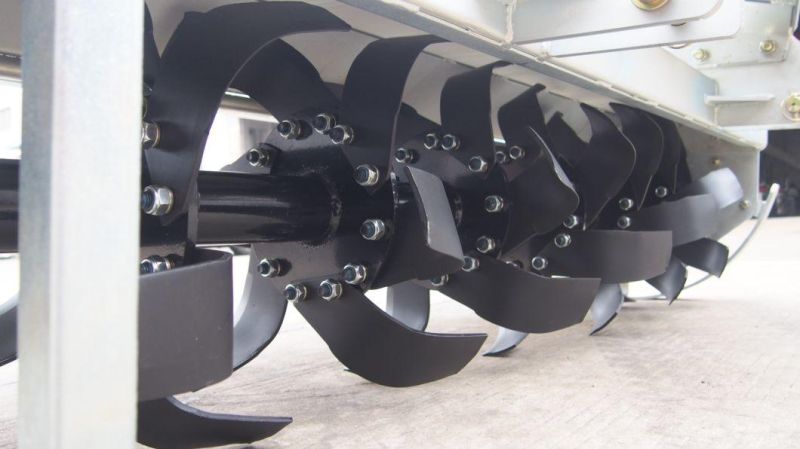

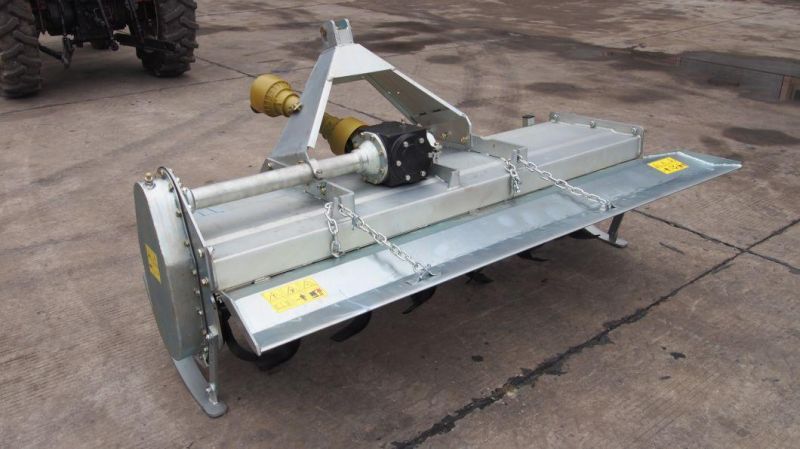

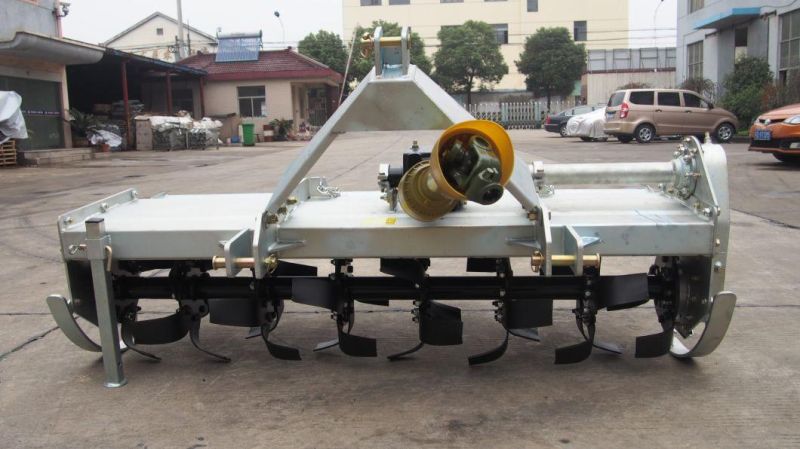

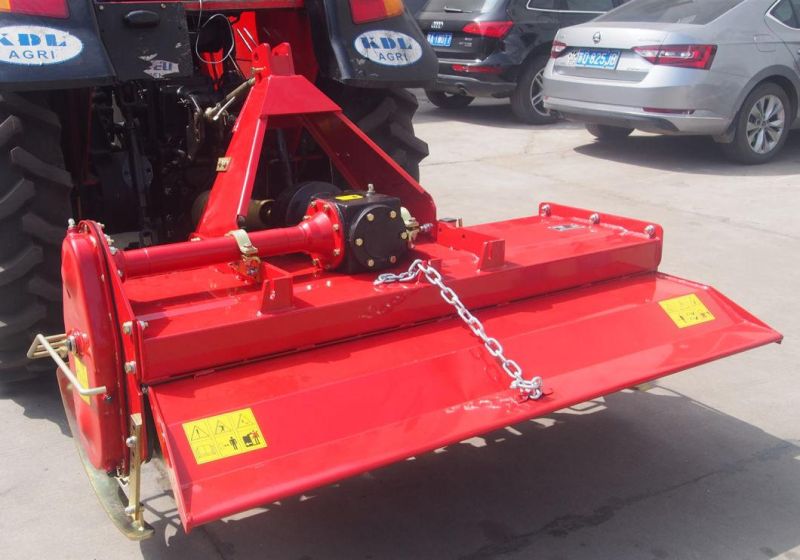

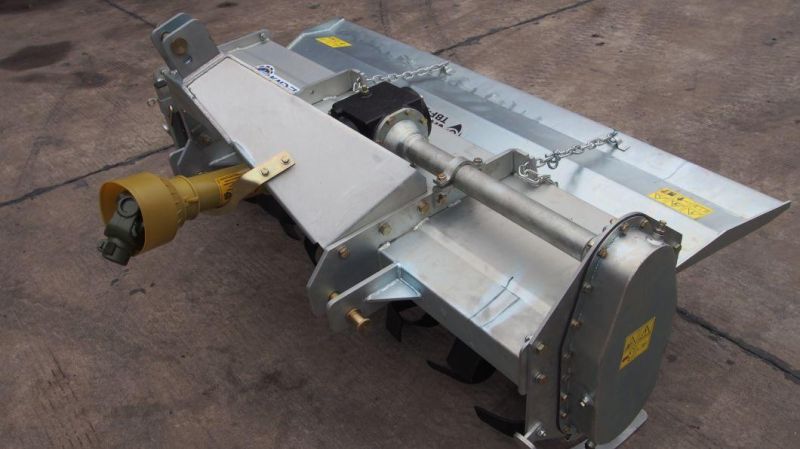

Medium Tillage Equipment Mulch Finisher Field Cultivator (IGN135)

Uses:

Whether you are laying turf around a golf course or growing small crops, the rotary hoe is perfect for preparing your top soil for planting~ Creates a smooth finish and is perfect for crop and lawn preparation~ Improving productivity, as well as presentation.

MODEL	IGN 90	IGN 105	IGN 125
Structure Weight	250kg	265kg	285kg
Tilling Width	895mm	1045mm	1245mm
Tilling Depth	150mm	150mm	150mm
No. Of Blade	24	30	36
PTO Turning Speed	540r/min	540r/min	540r/min
Tractor HP	16-20hp	20-28hp	25-30hp



MODEL	IGN 135	IGN 150	IGN 180
Structure Weight	300kg	320kg	350kg
Tilling Width	1345mm	1495mm	1795mm
Tilling Depth	150mm	150mm	150mm
No. Of Blade	36	42	48
PTO Turning Speed	540r/min	540r/min	540r/min
Tractor HP	25-30hp	30-50hp	40-75hp

Why choose KAIDELI IMPLEMENT:

Any quality problem you have in one year, we promise to help you solve  asap.

Every customer to us is unique, best service will give you.

We provide you our machine with good material and promise not to deduct the material.

Every model of our machine will have a testing before the delivery to the port.

If you want to visit our factory, our boss will give you a best reception.

Every year's Christmas we prepare gifts to our customer.

Every year we  attend the agricultural exhibition in Germany or Italy.

Shipment

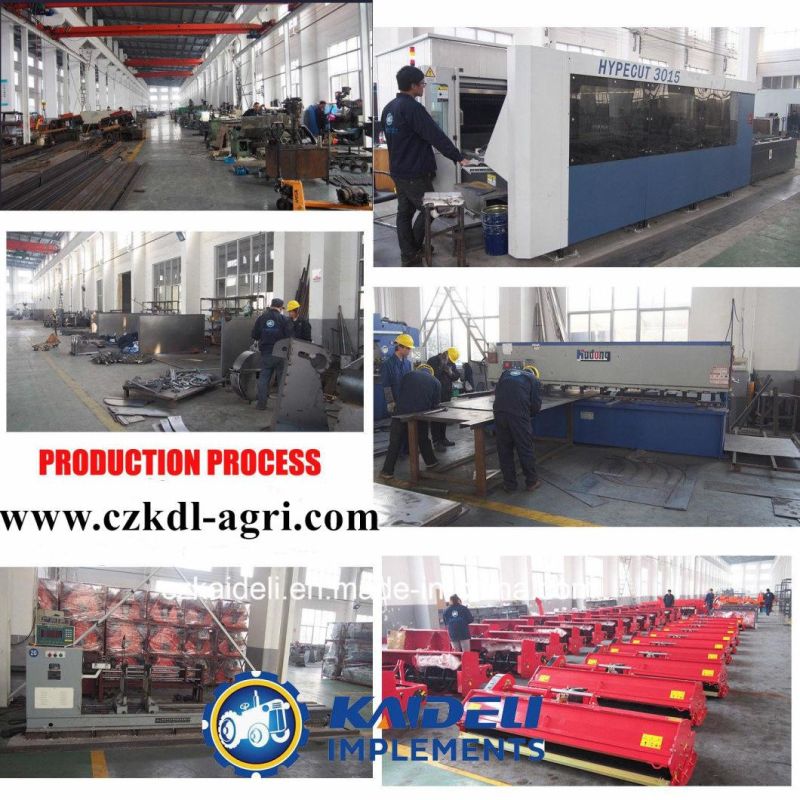

Workshop

Certificate
