• Model NO.：VIC-5DH
• Power：7.74 kw
• screen layers：3
• Selected rate：98%
• Sieve form：Rubber ball sieve
• noise：less than 85db
• Transport Package：Wooden Box
• Specification：4970*1950*3100 mm
• Trademark：VIC
• Origin：China
• Production Capacity：5000PCS,Year

Basic Info.

Model NO. VIC-5DH Power 7.74 kw screen layers 3 Selected rate 98% Sieve form Rubber ball sieve noise less than 85db Transport Package Wooden Box Specification 4970*1950*3100 mm Trademark VIC Origin China Production Capacity 5000PCS/Year

Product Description

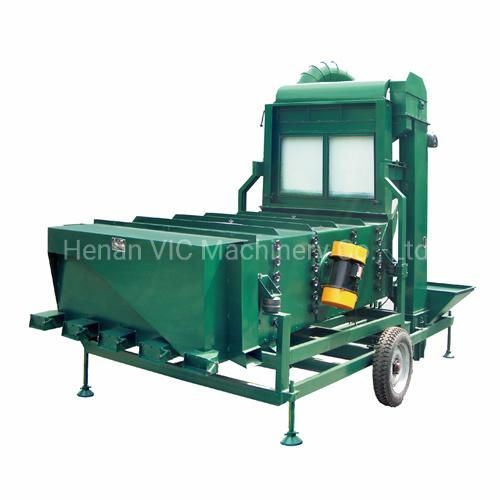

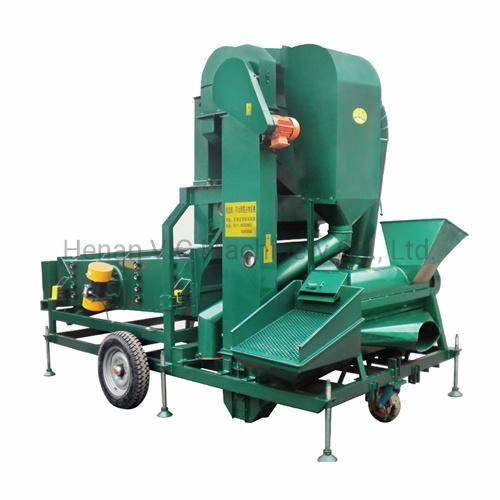

                                                      VIC-system Seed Cleaning Machine

Application:
1.This machine main function is accomplished by vertical air screen, which according to the aerodynamic characteristics of the seed, the seeds and the impurities in accordance with the critical speed is different, by adjusting the flow rate, to achieve the purpose of separation of the lighter impurities are inhalation settling chamber concentrate discharged through the air after a good seed sieve into the shaker.

2.Sorting is based on the principle of vibrating screen geometry characteristics of the seed determined different kinds of seeds and varieties, all sizes are different, choose to replace the different specifications sieve, sorting will be able to meet the requirements.

Feature:
1.The machine is my company developed for the primary grain cleaning equipment.
2.The amplitude of screen box is 4mm,the vibration frequency is 960times/min.
3.The body is 2m and made of high quality steel welded bending.
4.Galvanized sheet punching screen thickness is 1mm, sieve flatness, pore size, pore width meet with the GB3943 requirements.
5.The suction efficient winnowing system, equipped with spiral dust, effectively improve the working environment.
6.Screen box is sealed and rubber balls sieve, little pollution. Have better adaptability and convenience, sieve layers can be customized on request.


Main data

Type	VIC-5DH Wind screen cleaning machine
Size	4970*1950*3100 mm
Weight	1500kg
Capacity	5000kg/h
Power	7.74kw
Sieve layers	3 layers
Sieve size(H*W)	2000*1000 mm
Selected rate	>98%
Sieve form	Rubber ball sieve
Noise	≤85dB

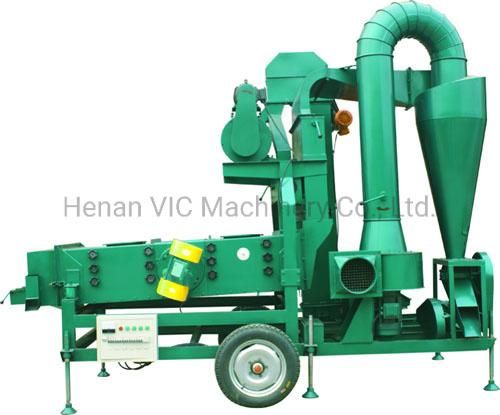

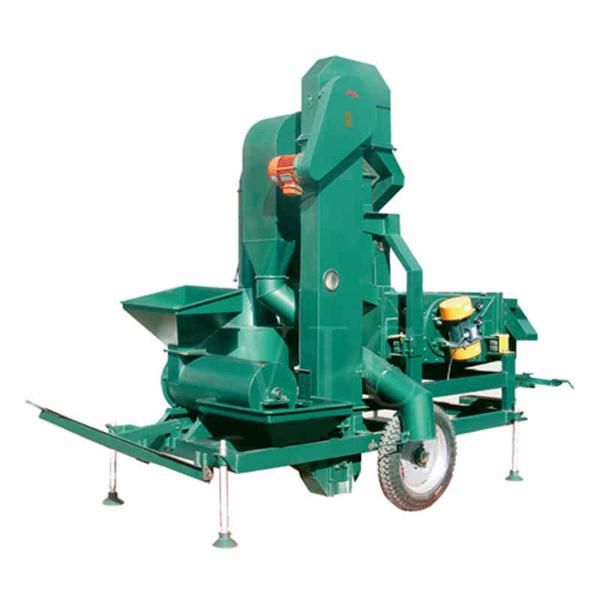

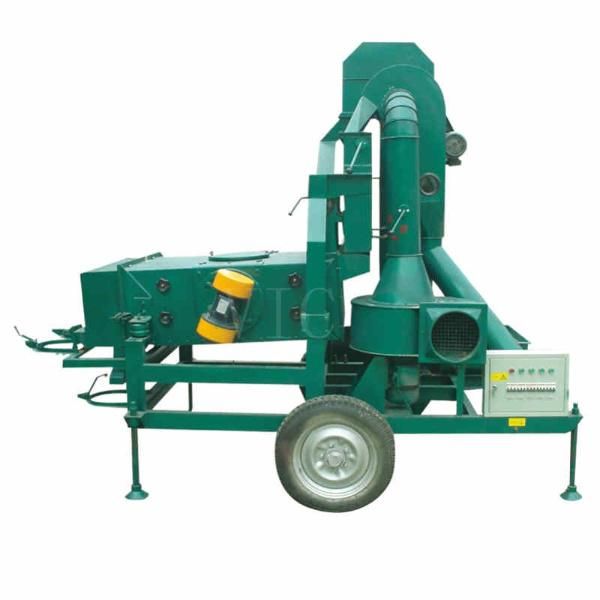

More pictures and details

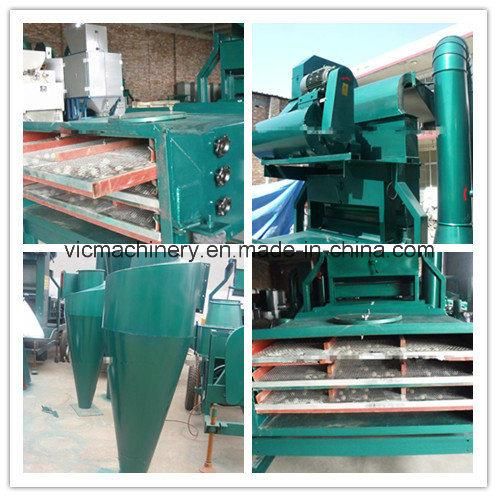

Spare parts pictures

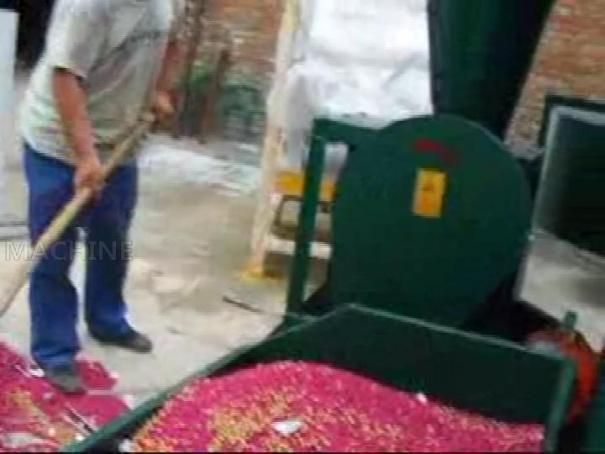

Working

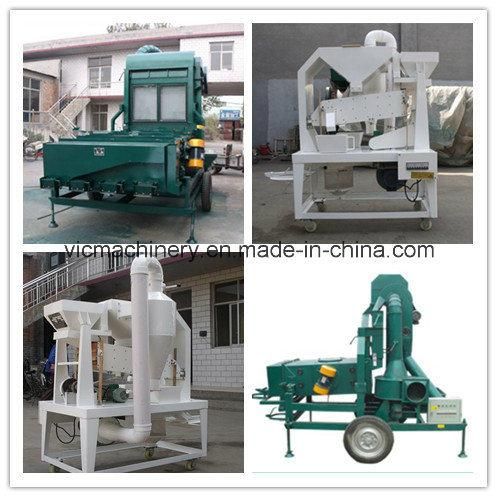

Other type seed cleaing machine
Kinds of seeds can be used for this type

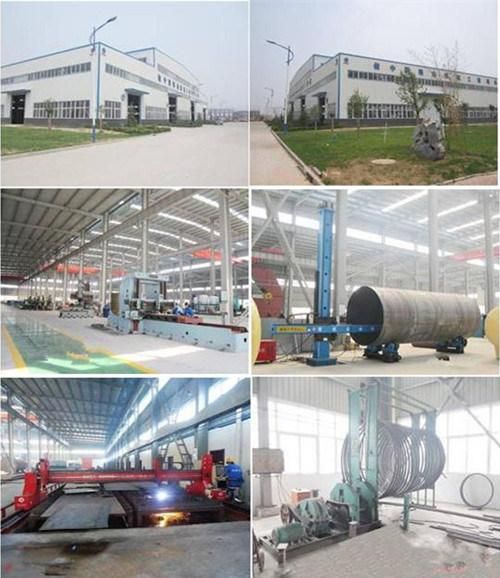

Factory view

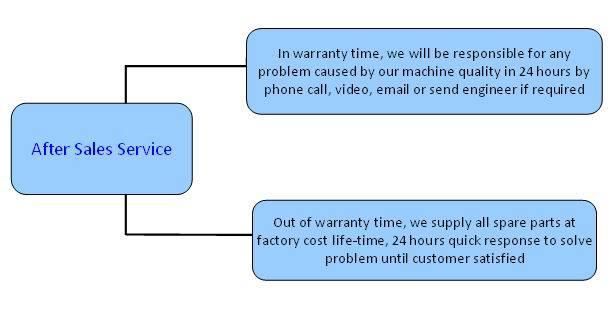

After sale service
