• Model NO.：crusher mixer machine
• Pellet Mill Type：Flat Die Pelletizer
• Bulking Machine Type：Flat Die Pellet Machine
• Expanding Method：Flat Die Pellet Machine
• Condition：New
• Applicable Materials Shape：Granular
• Warranty：1 Year
• Transport Package：Standard International Export Packing.
• Specification：According to the capacity
• Trademark：YUFCHINA
• Origin：Henan, China (Mainland)
• Production Capacity：30 Set,Sets Per Month

Main features of feed mixer machine:

1. This feed mixer machine is setting crushing and mixing equipment, After crushing feed automatic into mix step.

2. The raw material can be grain, corn, soybean, wheat, etc., and other additive can be added into the machine to mix.

3. The feed mixer machine is suitable for the family use and small factories.

4. This feed mixer machine posses lower conception, less area of occupancy, easily to loading and discharging, but longer mixing time.

5. The feed mixer machine has residual quality in the end of the bottom, generally used for small feed factory and complete feeding line.

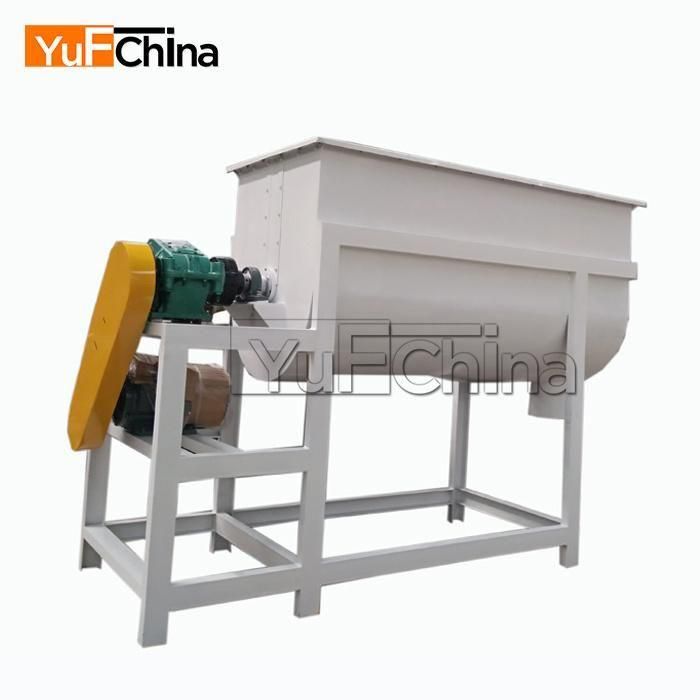

Advantage of horizontal mixer machine

        This horizontal mixer machine posses lower consption, less area of occupancy, easily to loading and discharging, but longer mixing time. It has residual quality in the end os the bottom, generally used for small feed factory and complete feeding line. Each batch of feed mixing need 15 minutes. It is batch type mixing equipment.

Specifacation :

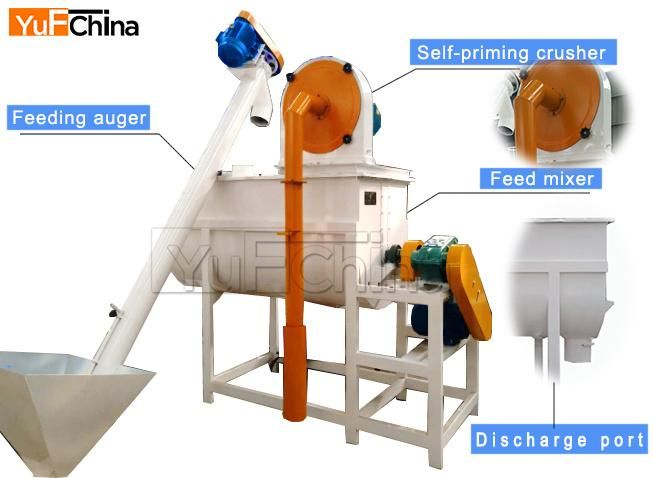

1. We can put the grinder by one side of the mixer machine. This compact design is suitable for medium sized cultivation companies and small-scale aquaculture feed processing plants.

2. Materials are pouring into the screw feeder and transfer to the mixer, after a mixing period around 15 minutes, open the gate for discharge.

3. Self - suction mill will be installation on top of the mixer if needed. So the materials will enter into the pin and by the function of fan wind to the hammer mill for grinding. After grinding discharge to the mixer for batching process.

4. There are two types of matching for the crusher and mixer. One is Self - suction mill installation on top of the horizontal machine, while another is hammer mill installation by side of the mixer. All these two types are optional to choose.
Product characteristics


1. High mixing efficiency, horizontal batch mixer.

2. It is suitable for mixing materials with more liquid, especially materials with more oil content.

3. The structure is reasonable, the model adds grease and pipeline, the overall structure is reasonable, and the operation and maintenance are convenient.

4. The mixing uniformity is high, the machine has novel rotor structure, double helical blade belt, mixing without dead angle, mixing uniformity CV less than 7%.

5. The machine is suitable for mixing medium powder, granular, flake and miscellaneous materials.
