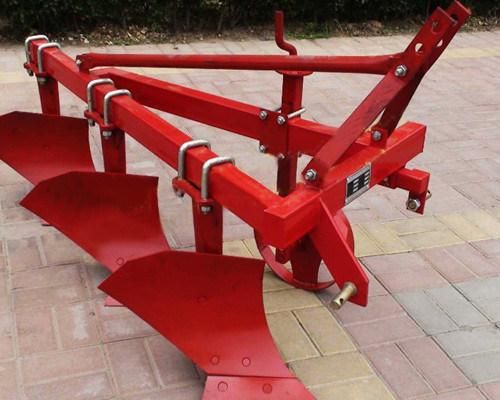

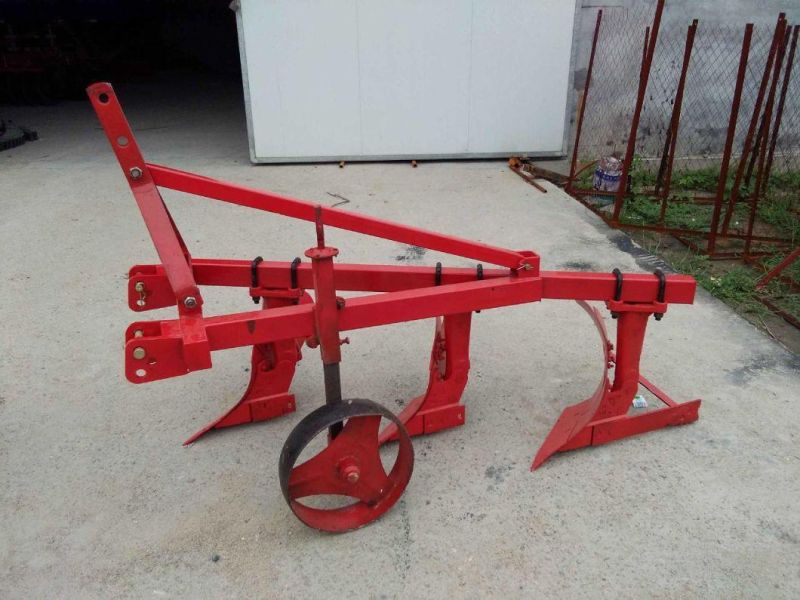

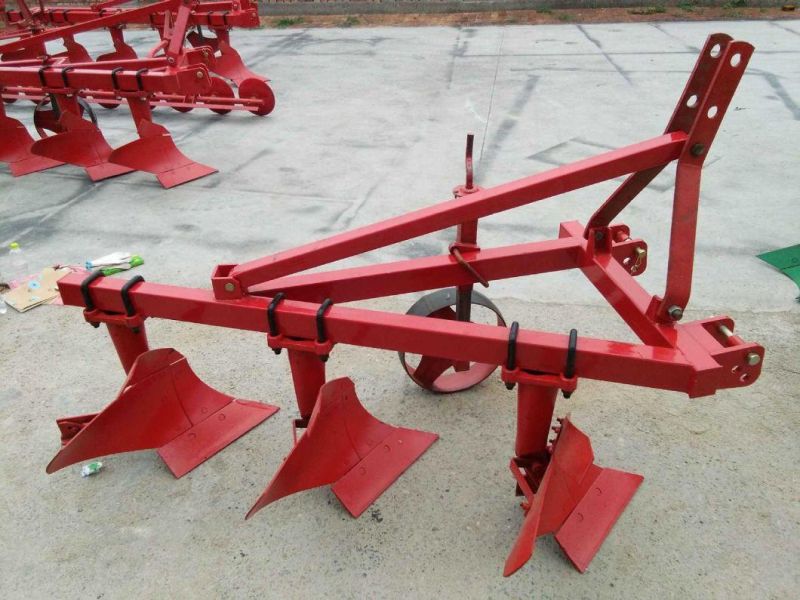

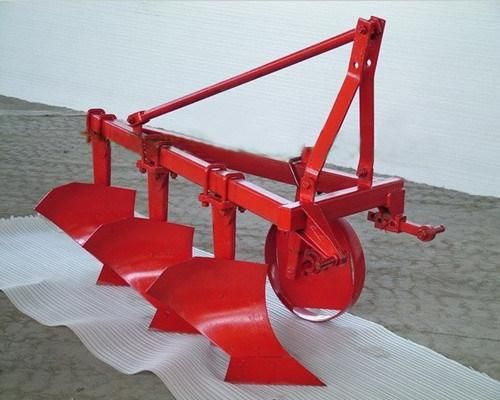

Mould Board Plough, with 2 to 6 Blades
Shandong Weituo Group Co., Ltd.- Type：Moldboard Plow
- Application Field：Agriculture
- Farming Policy：Dry Cultivating Machinery
- Power Source：Tractor
- Operation：Soil Preparation Machinery, Fixed Operation
- Transport Package：Steel Frame
Base Info
- Model NO.：12 to 100hp Tractor Matched Power and 2 to 6 Blade
- Specification：ISO9001, CE approved
- Trademark：weituo
- Origin：China
- Production Capacity：50, 000pcs,year
Description
Basic Info.
Model NO. 12 to 100hp Tractor Matched Power and 2 to 6 Blade Specification ISO9001, CE approved Trademark weituo Origin China Production Capacity 50, 000pcs/yearProduct Description
The machine is suitable for loam, or sandy loam soils in the cultivated area. It is compact in construction, and versatile in application. After plowing, the land surface is smooth and the furrow is narrow with a good pulverization and mulching.
| model specification | 1L-320 | 1L-420 | 1L-325 | 1L-425 |
| plough depth(mm) | 200-250 | 200-250 | 250 | 250 |
| plough width(mm) | 600 | 800 | 750 | 1000 |
| No. of bottom | 3 | 4 | 3 | 4 |
| matched power(hp) | 25-30 | 40 | 40 | 40-60 |
| weight (kgs) | 100 | 160 | 160 | 210 |
Capacity (mu/h) | 3 | 4 | 5.0 | |
| 850 | 1200 | 1600 | 2100 | |
| package size/ G.W. (mm) | 2200*1200*800 ( 10sets)1000kgs/p | 2200*1300*800 ( 10 sets) 2500kg/p | 2200*1200*1000 10 sets/1000kgs/p |
