• Model NO.：WSFB series
• Blade Type：Curved Teeth
• Computerized：Non-Computerized
• Certification：ISO9001:2008, CE
• Condition：New
• Capacity：50 Sets Per Month
• Key Word 1：Dewatering Machine
• Key Word 2：Manure Dewatering Machine
• Key Word 3：Animal Dung Dewatering Machine
• Transport Package：Wooden Cases
• Specification：ce co ccc
• Trademark：GMEC
• Origin：Henan
• HS Code：8474900000
• Production Capacity：20 Sets Per Month

Basic Info.

Model NO. WSFB series Blade Type Curved Teeth Computerized Non-Computerized Certification ISO9001:2008, CE Condition New Capacity 50 Sets Per Month Key Word 1 Dewatering Machine Key Word 2 Manure Dewatering Machine Key Word 3 Animal Dung Dewatering Machine Transport Package Wooden Cases Specification ce co ccc Trademark GMEC Origin Henan HS Code 8474900000 Production Capacity 20 Sets Per Month

Product Description

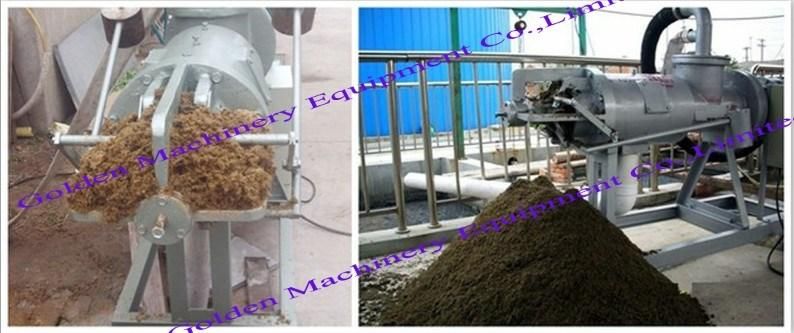

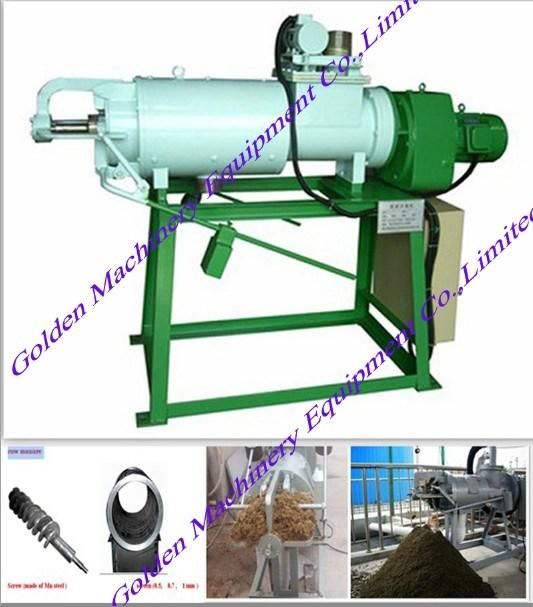

Poultry cow dung pig chicken manure extruder dewatering machine




Part one:
1. It widely used to reduce the water content of sawdust, animal dung, acid-sludge, medicine dregs, kitchen rubbish, and many other dregs.
2. If the raw material is solid, when its moisture more than 60-90%, the machine could lower the moisture to  around 50%.
3. If the raw material is liquid, the solid content in the raw material can be 30-40%, and the moisture of final product is about 40-50%, you can't press out any water by hands. After processing with this machine, the final product could be used as raw material of organic fertilizer or biomass briquette.

Main Description

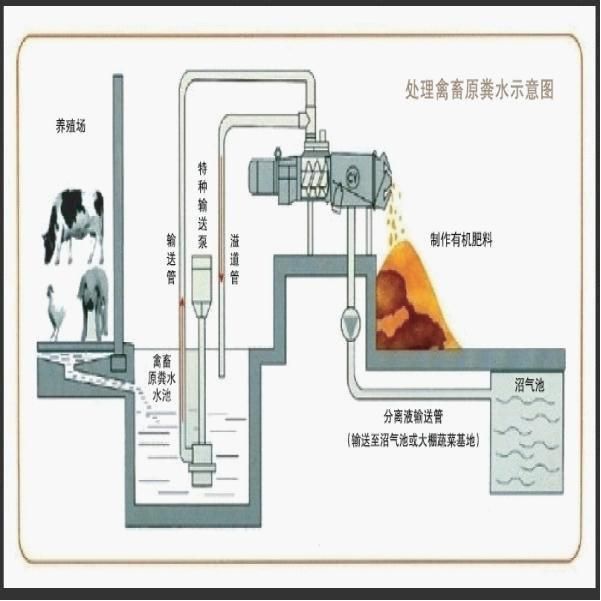

Cow dung dewatering machine is the ideal poultry and sewage treatment equipment
In scale livestock and poultry farm. The proper treatment of cow dung, can not only avoid
The environmental pollution, but also will serve as a resource recycling. This machine is mainly composed of a host machine, pumps, control cabinet, piping and other equipment. Its key components made of stainless steel material, the weight of the whole half
Tons and dimensions are small, is ideal poultry manure treatment equipment for scale
Production of livestock and poultry manure processing, which can greatly improve the efficiency of solid-liquid separation.

No.	Model nr.	Voltage(V)	Motor power(KW)	Conveyer pump power (KW)
WSFB-1	HM-140-3	380	3	3
WSFB-2	HM-180-4	380	4	3
WSFB-3	HM-400-11	380	11	6

Part two: Operation of dung dewatering machine

The machine receives the material to be separated and conveys it using the screw conveyor inside the

separator casing. The liquid phase is separated through the mesh of the cylindrical screen which encloses thescrew conveyor. Along its path toward the exit, the material gradually separates progressively the less linked

liquid and then the more strongly linked liquid until a plug of almost dry material has formed before the outlet. The plug is continuously expelled through the outlet diaphragm.The machine will automatically find its balance of squeezing force depending on the material. Consequently, it can be used for a wide range of materials withoutthe need for any manual adjustments.


Part three: Advantages of dung dewatering machine

1. Compliant with a wide range of materials in different throughput rates.

2. Optimized feeding thanks to compensator tank.

3. Outlet diaphragm for solids manufactured from anti-wear engineering polymer: cost saving in spare parts.

4. Self-balanced pressure at the solids outlet: steady and safe operation.

5. Simple operation and cost saving in spare parts.

6. Low power consumption.

7. Continuous operation.



8. Quick return on investment.

Remarks:
I.Delivery time: 15 days after receiving clients' prepayment.
II.Payment term: 50% as prepayment by T/T, the balance of 50% should be paid after the scan document of BL.
III. Valid time: This quotation is valid for one month.
IV .Quality Guarantee Terms:
Quality guarantee term is for one year. Malfunctions which are caused by machine-self and quality will be responsible for our manufacturer. Other malfunctions which are caused by operation mistakes, man-made problems, etc will be responsible for clients-self.
V. Contact details:
Contact:Miss Susan

TEL:0086-371-55960109
HP:0086-15838007835
Address:No 99th,guoji road,jinshui zone,zhengzhou city.
