• HS Code：84362900
• Production Capacity：800sets,Month

Basic Info.

HS Code 84362900 Production Capacity 800sets/Month

Product Description

Weifang U-Best Husbandry Equipment Co.,Ltd is one of the earliest companies in China to supply poultry equipment, adheres to the philosophy of First-class products, First-class concept, First-class products and First-class after sale service, continuously  engages in the research  development, production  and sale of intelligent integrated technology for husbandry machinery in the husbandry industry, unholds the product concept of doing high quality products and provides detailed and professional guidance and services for each customer  all over the world.
Any question, Welcome to contact Ms. Nancy Meng in U-Best company.

One full Set of Poultry Farm Equipments as follow:

Name	Items
Main feeding system	Silo/manpower hopper/feedbin, Driving system, Delivery system
Feeding pan system	Vice hopper, Driving system, Delivery system, Anti-perching system, Hanging system, Pan feeder
Nipple drinking system	Front system(Reuse filter), Hanging systemWater pipe with nipple drinker and cup, pressure regulator, End kits
Ventilation system	50" fan, 36"fan and air inlet.
Cooling pad system	Color: brown, yellow, green, black, red, ect Thickness: 100mm, 150mm Height: 1660mm,1960mm,2160mm(with frame)
Environment control system	T607, T610, T616, AC2000
Heating system	Gas/Diesel/Coal/Electricity heater
Spray&disinfecting system	Nozzle, Hanging system, Pipe

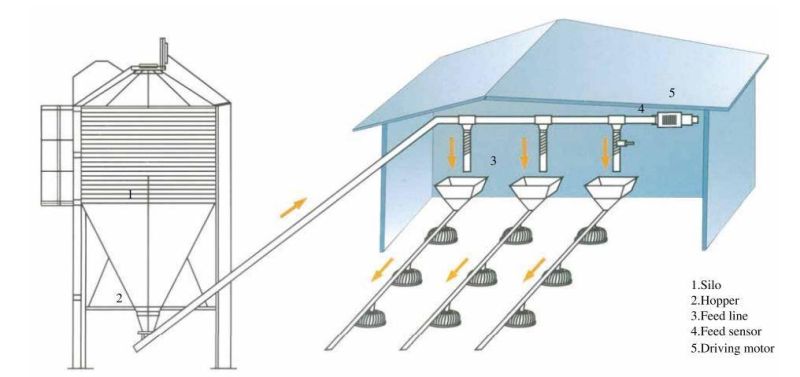

1. Main Feeding system
Silo or manpower hopper/feed bin is the beginning of main feed line. There is a feed sensor at the end of main feed line which controls motor on and off to achieve automatic feed delivery from silo or manpower hopper/feed bin to vice hopper at the beggining each feeding line.
Silo model: 5/8/10/11.3/14/16/20 Tons
Manpower hopper: 800/1200/1400

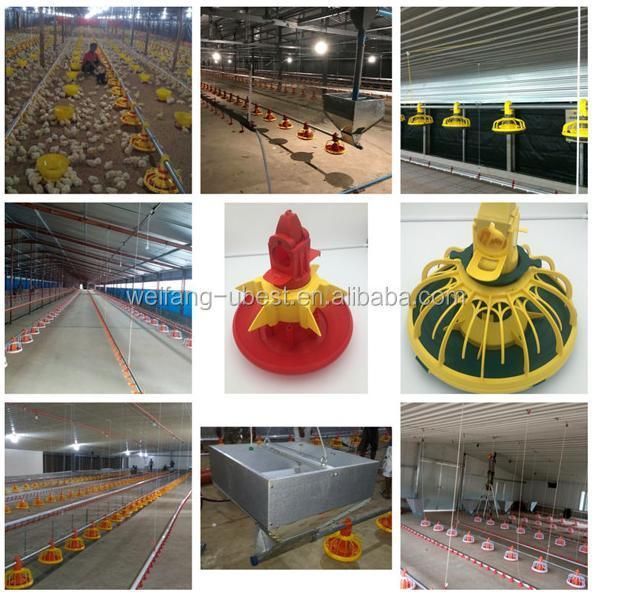

2.  Pan Feeding  System


         Vice hopper: made of hot dip galvanize sheet, 70/90kgs capacity


          Driving Motor:0.75/1.1/1.5kw high-quality special driving reduction motor
                         Taiwan Wanxin and Italy Transtecno for your choice
        Delivery system:                                            *Feed Tube: Φ45mm diameter, 275g/m2 hot-dip galvanized steel pipe with the zinc coating            *Auger: Helical spring auger from South Africa

        *Feeding ability:450kg/h

        *Maximum conveying length:150m                                                                                                                                                                             Pan Feeder(Type of Plasson/Valco Double Grill/Bigdutchman):         *4 pans/3 meters, 3 pans/3 meters.

        *Material: 100% virgin raw material PP

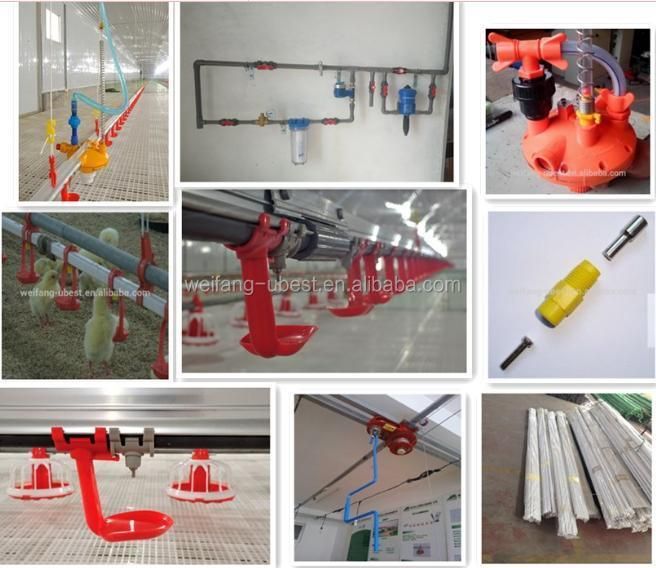

3. Nipple Drinking System
     Front system: front controller for drinking system,including filter, water meter and doser medicator etc, which is used to adjust water supply and stabilize drinking volume
    water pipe with nipple drinker and drip cup:

    * Type: square water pipe with galvanized support, round water pipe with aluminum support, square water pipe with                               aluminum support
    *Double Seal Structure which is absolutely no water leak
    *12nipples or 15nipples/3m, 20nipples/4m
    Pressure regulator: double water-inlet-tube and flushing pressure regulator ensure large water flow

   This system can provide fresh and clean water for poultry which is crucial for the growth of poultry. The drinkers can be       triggered from 360 degree which helps young birds start well and makes drinking easily.

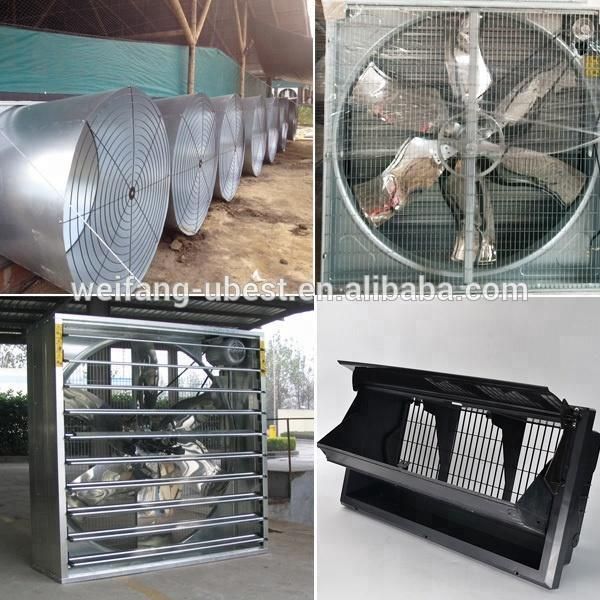

4. Ventilation System

This system controls climate conditions, fresh air, humidity and temperature in poultry shed. It is vital for growing birds, including air inlets and ventilation fan.

*36" Box Fan: 20800m3/Hr, 1000×1000×450mm, 0.5kw*50" Box Fan: 43070m3/H, 1380×1380×450mm, 1.1kw*50" Butterfly Cone Fan: 1.1KW 6 fan blades, Air capacity: 49452m³/h
*Air inlet: high quality engineering materials ABS production, high strength, strong anti-aging, can be directly cleaned with high pressure cleaner

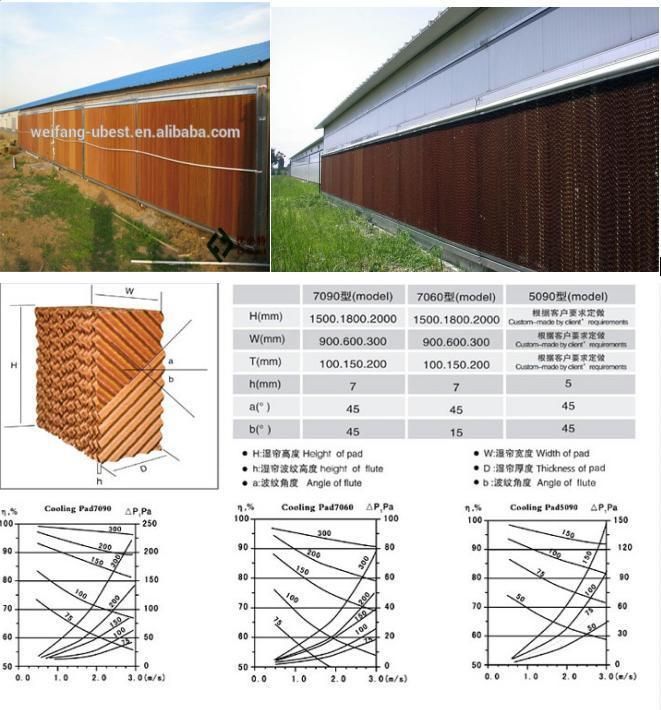

5. Cooling Pad System(Evaporativo Panel de Enfriamiento)

Cooling pad and fan, the longitudinal ventilation and cooling combination is the most economic and effective summer cooling system for poultry house.

Color: Brown, black, yellow, green, red etc;
Thickness: 100mm, 150mm; Height: 1660mm, 1960mm, 2160mm (with frame)

Frame: Aluminium frame -high strength, good corrosion resistance, even water distribution, compact structure, beautiful and practical. Galvanized steel frame for your option, lower price than aluminium frame.

6. Environment Control System

Automatic environment control system can save labors and resources under the condition of assuring a optimum growth environment for poultry chickens. Environment controller along with temperature is imported from Agrologic in Israel, which can set an optimum working mode according to the local climate and raising environment.



The Most Advanced Control System not only has the above function, but also could be done to do chicken feed weighing/chicks weighing/connecting to computer or personal phone.

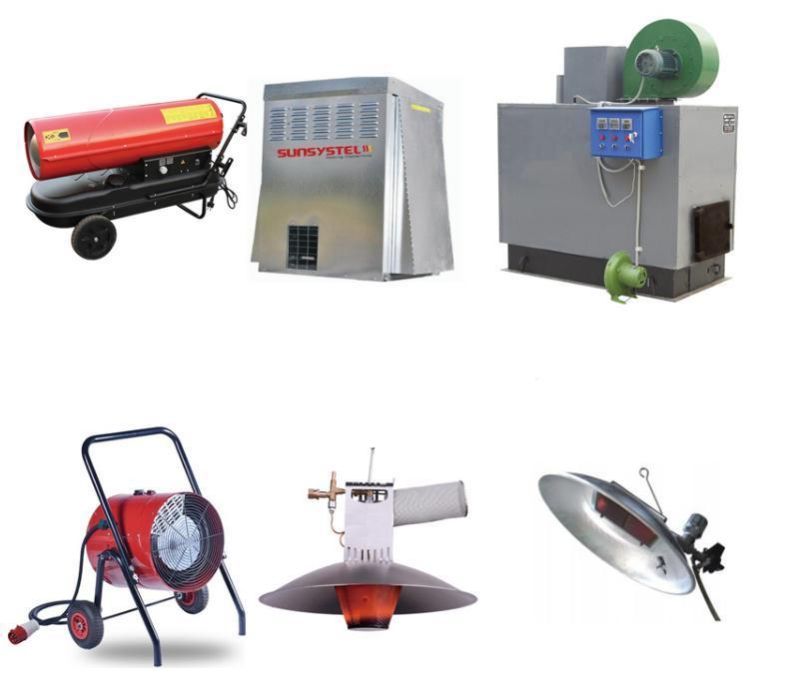

7. Heating System

 To meet the temperature requirements of chickens at different stages of growth, the chicken house/coop needs to be heated. Poultry gas space heater, diesel tank heater, infrared gas brooder and hot-blast heater for your choice.

8. Spray&disinfecting system
The spray & disinfecting system include  copper tube, nylon tube, double opening spaying sitting, copper spaying nozzle, copper T-connection part, ball valve, valve connection, direct connection, L-shaped connection, mobile main spaying machine, high pressure hose, high pressure slow shock tube, filter



Our Services For Your Project of Poultry Control Shed Farm Equipments:
1. Chicken House Equipment: produce and supply first-class Quality poultry equipment with Good Price;
2. Poultry Farm: select location, design and construction preparation guidance;
3. Layout Drawing: make layout drawing of our equipment to guide you build house and install equipment;
4. Equipment Installation: if you need, we send our engineer to your farm for guide of equipment installation;
5. Training: we can train your workers to operate our equipments and raise poultry;
6. After-sales service: free consultancy and prompt reply to questions from clients.
