• Model NO.：FB-1380
• Power Source：Electric
• Heating and Ventilation Equipment Type：Air Duct
• Epidemic Prevention Equipment：Ventilation
• Blade Type：Motor
• Computerized：Computerized
• Certification：ISO9001:2008, CE
• Condition：New
• Warranty：2 Years
• Size：1380X1380X450mm
• Blade Dia：1270mm
• Power：1.1kw
• Voltage：380V,220V,415V
• Air Flow：44000cbm,H
• Frame Material：Galvanize Sheet,Stainless Steel
• Belt：Sanlux,Mitsuboshi
• Pulley：Aluminum-Magnesium Alloy
• Impeller：Aluminum-Magnesium Alloy
• Bearing：Single Row with Special Water Proof Design
• Transport Package：CKD,Fa
• Specification：1380X1380X450
• Trademark：FUBOKAIYUAN
• Origin：China
• HS Code：8414
• Production Capacity：4000sets,Month
• Package size per unit product：1400.00cm * 1400.00cm * 450.00cm
• Gross weight per unit product：90.000kg

MODEL

BLADE.DIA. (MM)

AIR FLOW (CBM/H)

MOTOR POWER (KW)

HEIGHT (MM)

WIDTH ( MM)

THICKNESS (MM)

FB-800

710

18000

0.37

800

800

450

FBD-1000

900

23000

0.55

1000

1000

450

FBD-1100

1000

32500

0.75

1100

1100

450

FBD-1380

1250

44000

1.1

1380

1380

450

FBD-1530

1400

55800

1.5

1530

1530

450

Spare parts

Blade is special designed for the biggest efficiency which made of  stainless steel by punch forming. Large air volume, no deformation, no broken, no dust, attractive and durable. Thickness 1.2mm, surface finish BA grade. Stainless steel, galvanized and aluminum for option.

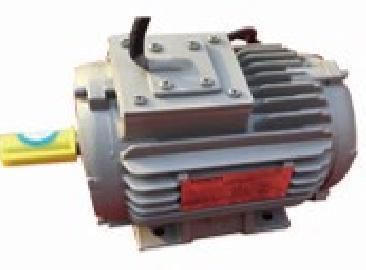

Both China famous motor and Siemens motor are available. Motor voltage and frequency can be customized. Chinese famous motor OEM by special design for fan, the first put in the phase lack protection device which would power off when shortage of electricity. Motor protection grade IP55, insulation class F grade.

Fan belt pulley and flange are made of high strength aluminum-magnesium alloy by die-casting. Light weight, lower vibration. Blast-sanding treatment for attractive appearance, eliminate internal stress to improve its own rigidity and stability.

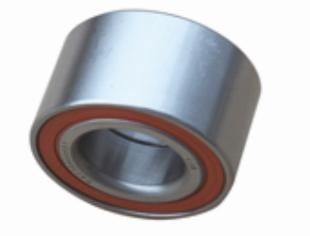

Fan bearing adopts imported single-row bearing with special waterproof design, high strength, low noise, maintenance free and long service life.

Centrifugal system open the shutters at complete 90 degree to ensure the lowest air resistance and biggest air volume. When close, the sealing can efficiently block light and wind into the poultry farm house. As the first one adopt high quality nylon PA66 to ensure the long service life. The fasteners of centrifugal system all are copper rivets, wear-resisting and no rust, flexible. Guide rod is made of 304 stainless steel, ensure the high strength, no rust, and reduce friction.

Belts are Japanese Mitsuboshi brand, ensure the long service life, maintenance free.

Frame adopts Hot Galvanized sheet with zinc thickness of 275g/m2, which extremely improve its anti-corrosion performance. Shutter fixed parts are made of high quality nylon which ensure long service life, open flexibly.Shutters are made of galvanized sheet with thickness of 0.8mm and 1.5mm, ensure shutters no deformation, running stable.

FAQ

1. Are you factory or trade company?
--We are the professional manufacture of ventailation exhaust fans, fiber glass cone fan, cooling pad equipment, heating products, feeding & drinking system for poultry houses.

2. Can you do make our own brand?
--Yes, we can provide the OEM &ODM service.

3. Any guarantee for your products?
--Our company's culture is "Quality is our culture!" All of our products with
12 months FREE GUARANTEE,never need to worry about the after-sale service,we will always be here to support your business!

4. How about the delivery time?

--Usually for sample order 1-2 days, for mass order 7-15 days.
