• Model NO.：SZLH420
• Pellet Mill Type：Ring Die Pelleter
• Bulking Machine Type：Twin Screw Bulking Machine
• Expanding Method：Wet Expansion
• Condition：New
• Applicable Materials Shape：Granular
• Warranty：1 Year
• Transport Package：Pallet
• Specification：2000KG
• Trademark：FDSP
• Origin：China
• HS Code：8436100000
• Production Capacity：3-20

Basic Info.

Model NO. SZLH420 Pellet Mill Type Ring Die Pelleter Bulking Machine Type Twin Screw Bulking Machine Expanding Method Wet Expansion Condition New Applicable Materials Shape Granular Warranty 1 Year Transport Package Pallet Specification 2000KG Trademark FDSP Origin China HS Code 8436100000 Production Capacity 3-20

Product Description

Factory Price 2022 New Hot Sale Single 1.5-2.5 T/H Shrimp Crab Feed Production Line

Shrimp and crab feed, as the name suggests, it is hard pellet feed used for feeding aqua animal like shrimps and crabs. 1.5-2.5t/h shrimp and crabs feed set has high requirement for the fineness of grinded feed, degree of gelatinization and good water resistance according to shrimp and crab's physiological characteristics.

Jiangsu Liangyou Zhengda Co., Ltd is specialized in manufacturing feed machinery and engineering, we can offer customer complete machine solutions for livestock feed(pig and others) , poultry feed(chicken, duck, goose and others), ruminant feed(cattle, sheep and others), normal aqua feed(four major Chinese carps), special aqua feed(shrimp, crab and others),  extruding aqua feed(floating and sinking fish feed, shrimp and others), premix feed(including various additives), pet food(cat food, dog food and others), we can meet customers' kinds of needs.

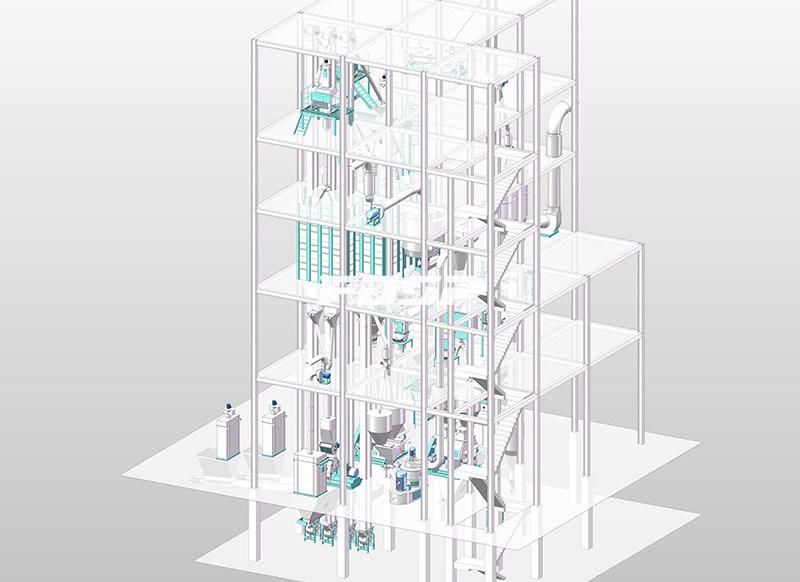

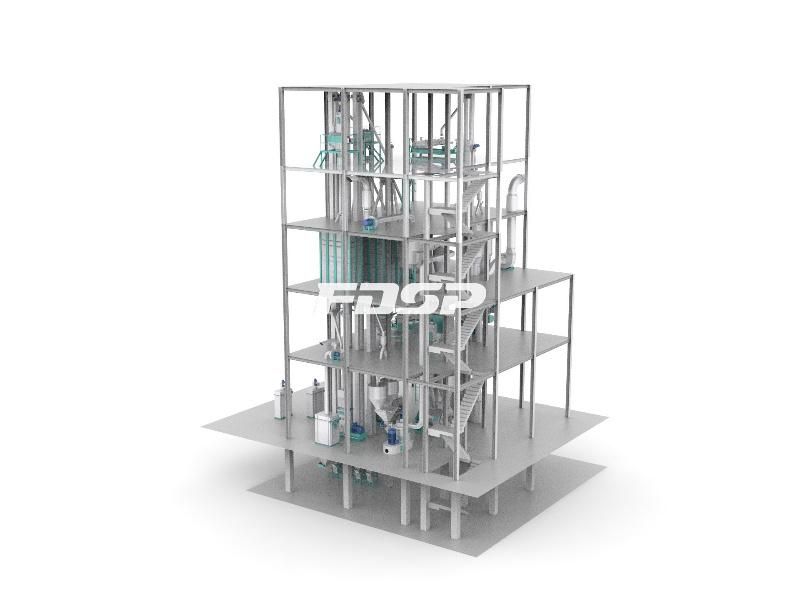

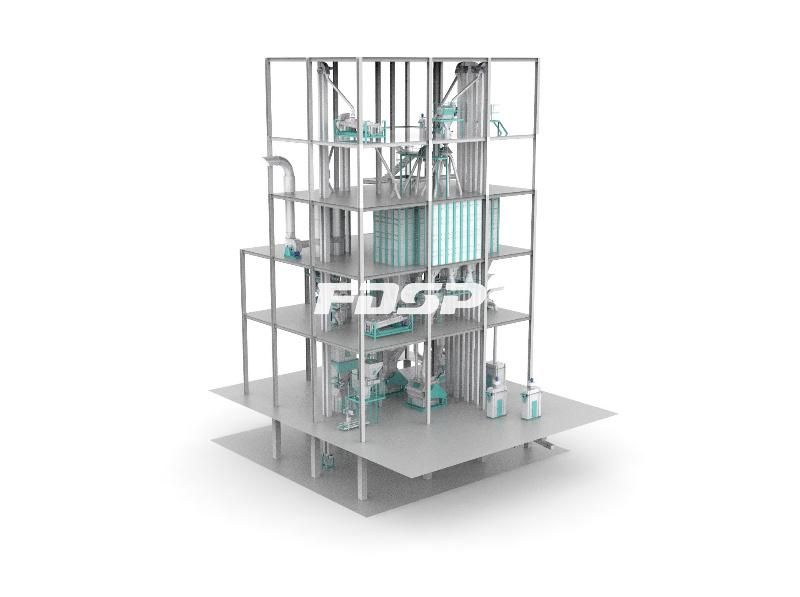

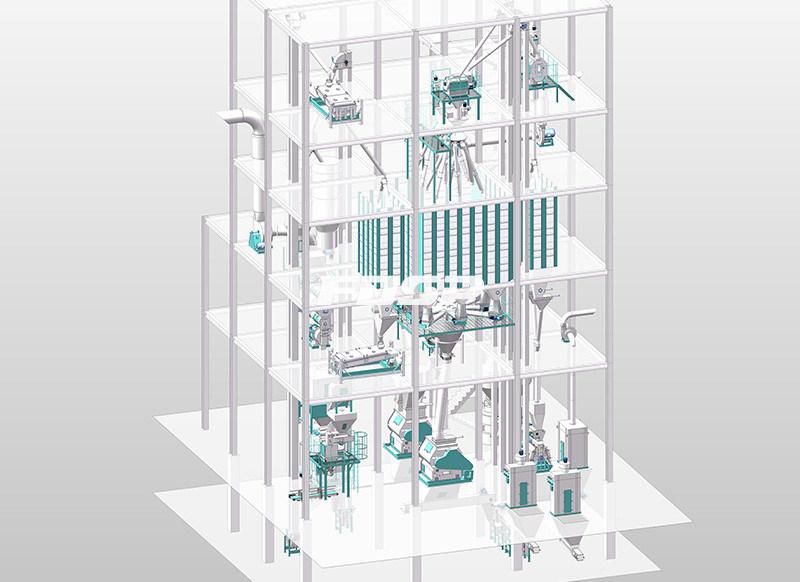

Now we take the case of Single SZLH420X shrimp and crab feed production line, make introduction based on process diagram and each process as follows:

Raw material:

The normal raw material will be soybean meal, rapeseed meal, cottonseed meal, wheat flour, yeast powder, fish meal, meat and bone meal , premix and etc.

Technological process chart:

RM receiving and cleaning process---first grinding process---first batching and mixing process--micro-grinding process--second mixing process--pelleting process- bagging process

Process intro:

The shrimp and crab feed has following characteristics: fine grinded particles(Pacific white shrimp feed requires 59% should be with 80mesh), high requirement for curing and conditioning(SZLH420x pellet mill adopt double shaft differential speed conditioner, retainer and jacket conditioner), good water resistance(using post-curing process), small diameter for finished pellet (the diameter around 1.0-2.5mm).  The output for this SZLH420x shrimp and crab feed is designed as 1.5-2.5t/h, with first grinding line, first batching and mixing line, second micro-grinding line, second batching and mixing line, single pelleting line and bagging line. the total power will be 605KW, production area dimension is : 22x17.5x30m, matching 1T boiler.  SZLH420x 1.5-2.5t/h shrimp and crabs feed set is characterized by compact design and reasonable structure, and the satisfaction of environment protection requirements, meanwhile it can be directed to customers design.



Technological characteristics and introductions:

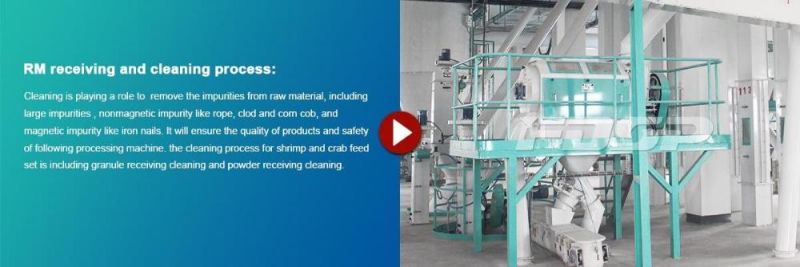

RM receiving and cleaning process:

In this process, the clean system for granule receiving and cleaning is separated from powder receiving and cleaning, dust collection are individual which is with the better effects.

cleaner: granule precleaner SCY63, output 10-15t/h, powder cleaner SQLZ60×50×100, output 10-15 t/h.



First coarse grinding process:

1set of hammer mill is adopt in this process, 2 grindings bins are equipped to cross exchange different raw material crushing ; The impurities could be removed from raw material by magnetic separation equipment before grinding bins to ensure the safe running of hammer mill.

Grinding equipment: hammer mill SFSP668×600, 55 KW, output 2-3 t/h(¢1.5 mm screen hole size)



First batching and mixing process:

In this process, we use 12pcs batching bins, one batching scale is controlled by FDSP developed independently batching program, achieve accurate quick and slow feeding, quick batching and with high accuracy.

Weighing equipment: batching scale PCS05, weighing accuracy: dynamic≤3‰, static≤1‰.

Mixing equipment: mixer SLHY1, (11KW,500kg/batch), designed output 3-6t/h/set,  homogeneity CV≤7%.



Pulverizing process:

As the high requirement for the raw material grinded particle size of shrimp and crab feed which usually is 80-120mesh. So we adopt 1 pulverizer with 2 grinding bins in this process to store material in turn, reducing the empty running for pulverizer. Pneumatic type discharging, cylone, pulse filter are used, the particle size after grinding can be adjust according to customers' needs.

Pulverizing equipment: SWFL110,110+11+2.2 KW. Output 2-4 t/h



Second mixing process:

Two batching bins and one mixer are used in this process extra manual adding hopper is adopt.

Mixing equipment: mixer SHSJ1, 11KW,500kg/batch, output 3-6t/h/set, homogeneity CV≤5%.

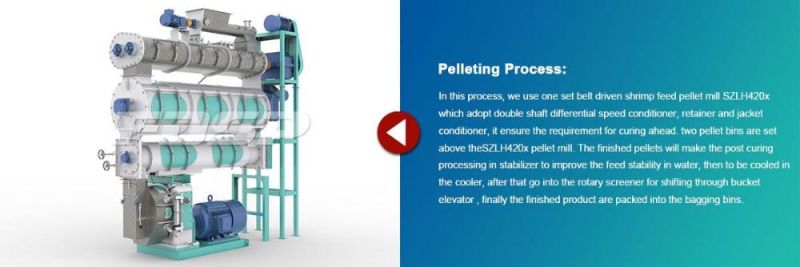

Granulation process:

This process adopts one belt driven shrimp specialized pellet mill SZLH420X, which is equipped with double shaft differential conditioner + retainer + jacket conditioner, effectively ensuring the pre-curing of granulation, two round pellet bins are equipped above the SZLH420x pellet mill together with dis feeder which can prevent the material arch. The finished product after granulation is put into the stabilizer for post-curing treatment to improve the stability of feed in water. Then enter the cooler to be cooled.

Pellet mill: SZLH420X,45×2 KW, output for shrimp feed 1.5-2.5/H. Stabilizer SWDB4,1.1+1.5 KW, Cooler SKLB4,1.1+1.5 KW, volume 4m3 output 4-5 T/H.



Packing process:

there are 2 FPbins in this process. Before the packing scale, the feed will be screened again to remove fine powder or oversized pellets to improve the product quality.

Packing equipment:

quick pellet packing scale, weighing rage 20-50 kg/bag, 4-6 bags /min.

Auxiliary process: dust collection system can improve the work condition, the oil adding system and water adding system can improve the feed palatability.

The process can be optimized according to different customer needs:

1. Single point dust collection mode is used in the plan which means pulse filter is equipped for every rotary distributor(mesh) and granule cleaner with good effect. Single point dust collection is kind of humanized design of our company, to provide a better working environment, but the cost increases, customers can consider whether it is needed in actual situation;

2. The quantity of bins can be adjusted to achieve the beast use ratio and effectively control the production cost based on factors such as customers' formula, characteristics of raw materials.

3.the second mixing in this process adopt non-automatic batch type mixing process, it has less cost for equipment, the customer also can choose full automatic batching system with larger cost but also higher efficiency.

4.We did not consider drying process here, if there is need to produce large crab pellet feed, we can add vertical dryer under stabilizer which can reduce the moisture of pellets to ensure the pellet quality.

5.Seedling shrimp and crab feed process is not considered in this process, it can also be added according to customer's demand.
