Factory Direct Price for Oil Press Machine
Sichuan Guangxin Machinery of Grain & Oil Processing Co., Ltd.- After-sales Service：Free Spare Parts
- Warranty：Free Spare Parts
- Structure：Horizontal
- Press Series：Third, Fourth
- Voltage：380V, 380V
- Type：Spiral Oil Press
Base Info
- Model NO.：YZYX120WZ
- Press Materials：Sunflower
- Condition：New
- Customized：Non-Customized

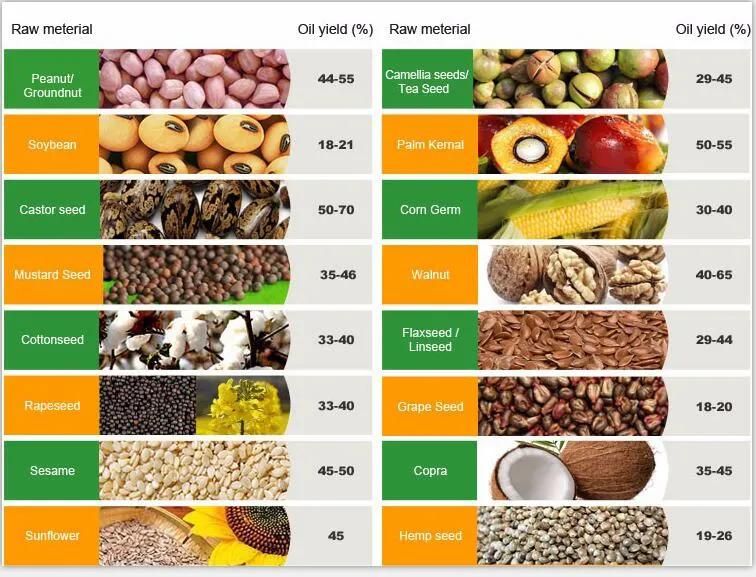

- Application：Rapeseed, Soybean, Sesame, Sunflower Seed etc
- Appearance：Single Spiral
- Squeezing Levels：Second, Third, Fourth Are Available
- Squeeze Way：Cold Squeezing and Hot Squeezing Are Both Ok
- Three Functions：electric Heating, Squeezing, Filtering
- Filtering Types：Vacuum Oil Filter
- Transport Package：Wooden Box
- Specification：SGS, BV, ISO
- Trademark：GuangXin
- Origin：China
- HS Code：84792000
- Production Capacity：500 sets per month
Description
Basic Info.
Model NO. YZYX120WZ Press Materials Sunflower Condition New Customized Non-Customized Application Rapeseed, Soybean, Sesame, Sunflower Seed etc Appearance Single Spiral Squeezing Levels Second, Third, Fourth Are Available Squeeze Way Cold Squeezing and Hot Squeezing Are Both Ok Three Functions electric Heating, Squeezing, Filtering Filtering Types Vacuum Oil Filter Transport Package Wooden Box Specification SGS, BV, ISO Trademark GuangXin Origin China HS Code 84792000 Production Capacity 500 sets per monthProduct Description
Advantages of YZYX120WZ combined oil press with vacuum filtration machine
1. Has multi functions in one-the press cage's auto-warming up, oil plants' squeezing and crude oil's filtrating, therefore saves labor cost and time consumption, thus, raises working efficiency.
2. The function of auto-warming up the press cage has replaced the traditional way by squeezing residue cake, which shortened the preparation work and reduced the energy consumption. When the squeezing is suspended, the temperature can be maintained at a certain degree by this system.
3. The two vacuum filters equipped on the machine has advantages of easy operating, high output and the filtration result is precise.
4. Day output 6.5ton/24h, oil content of residue cake ≤8%.
| Item | YZYX120WZ | Remark |
| Spiral axes rotate speed(r/min) | 32-42 | |
| Main electromotor power (kw) | 11 | Level 6 electromotor |
| Pump electromotor power (kw) | 1.5 | Level 4 electromotor |
| Temperature control power (kw) | 3.6 | |
| Measurement (mm) | 2120x1350x1890 | Length x width x high |
| Weight (kg) | 1080 | |
