• Model NO.：3WPZ-5000X2
• Pump Type：Diaphragm Pump
• Pump Pressure：0-45kgf,Cm²
• Spray Angle：110 °
• Nozzle Model：No.3
• Pump Flow：360L , Min
• Operating Efficiency：33-40 Acres , Hour
• Weight：4320kg
• Transport Package：Standard Package for Export
• Specification：5800 mm X 2500 mm X 3400 mm
• Trademark：LIXING
• Origin：Heilongjiang
• HS Code：8424490000
• Production Capacity：200

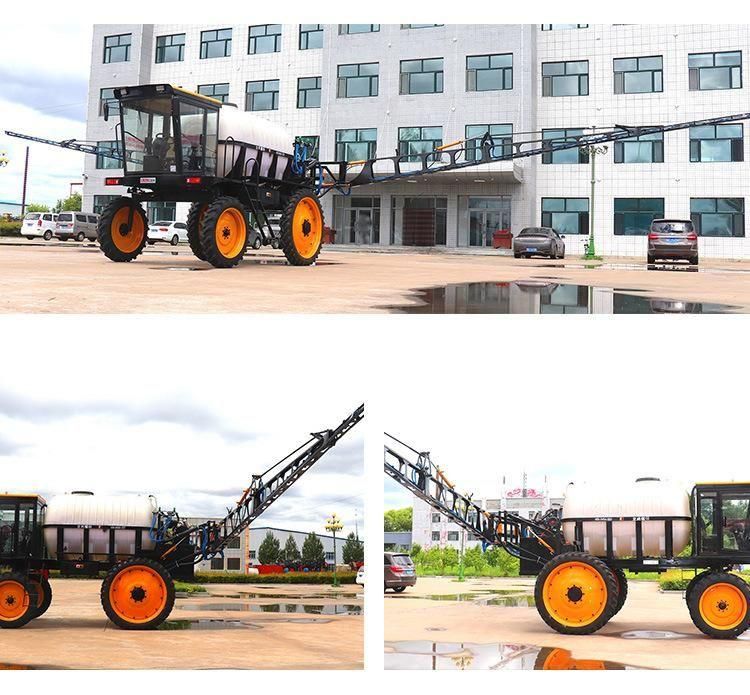

 Model3WPZ-5000X2 self-propelled spray boom sprayer Pump Type Diaphragm pump Engine Model 4L88 (Changchai) turbocharged diesel engine Pump Model MB6360 Power / Speed 73 hp   2400r / min Pump Pressure 0-45kgf/cm² Displacement Level China III Pump Flow 360L / Min Gear Forward gear 4,reverse gear 1 Pump Speed 600-800r / min Drive Mode Two-wheel drive Tank Capacity 5000L Steering Mode Hydraulic steering Spray Height 0.5-3.0 m Mixing Method Jet mixing Nozzle Model No.3 Folding Method Hydraulic folding Spray Angle 110° Spray Width 21m Nozzle Flow 1.2L / min Ground clearance 1.1-1.4 m(customizable) System Work Pressure 0.3-0.5Mpa Wheel Track 2.3 m(adjustable) 3 Filtration System Tank inlet, pump inlet, nozzle Operating Efficiency 33-40 acres / hour Battery 12v / 120AH Walking Speed ≤35Km / h Front Tire Model Tractor tires 9.5-32 Overall Dimension 6200 mm x 2800 mm x 3200 mm Rear Tire Model Tractor tires 12.4-54 Weight 4320Kg Water Tank 15L

Q:Are you a factory or trading company?

A:We are a factory.

Q: How does your factory do regarding quality control?

A: Quality is priority. we  always say great importance to quality controlling from the very beginning to the very end.

Q: Do you have a product accessory?

A: Yes, we have the accessories of the product.

Q:Can you customize the product?

A:We can customize the product.

Q: What's your payment terms?

A: Payment terms is T/T or L/C,We accept all reasonable payment.

Q: How about delivery time of your machine?

A: The delivery time is in 60 working days. It depending your quantity.
