• Model NO.：1KL-20
• Moving way：Crawler Loader
• Operation：High-speed Repeatedly Into a Ditch, Low Speed Once Into a Ditch
• Speed：80-110L,Min, 150-300m,H
• Certification：CE, CE, ISO9001
• Moving Way：Crawler Loader
• Warranty：One Year
• Transport Package：Wooden Case
• Specification：Metal
• Trademark：DEXU
• Origin：China
• HS Code：8432809000
• Production Capacity：5000 Piece, Year

Basic Info.

Model NO. 1KL-20 Moving way Crawler Loader Operation High-speed Repeatedly Into a Ditch, Low Speed Once Into a Ditch Speed 80-110L/Min, 150-300m/H Certification CE, CE, ISO9001 Moving Way Crawler Loader Warranty One Year Transport Package Wooden Case Specification Metal Trademark DEXU Origin China HS Code 8432809000 Production Capacity 5000 Piece/ Year

Product Description

A. Product Application

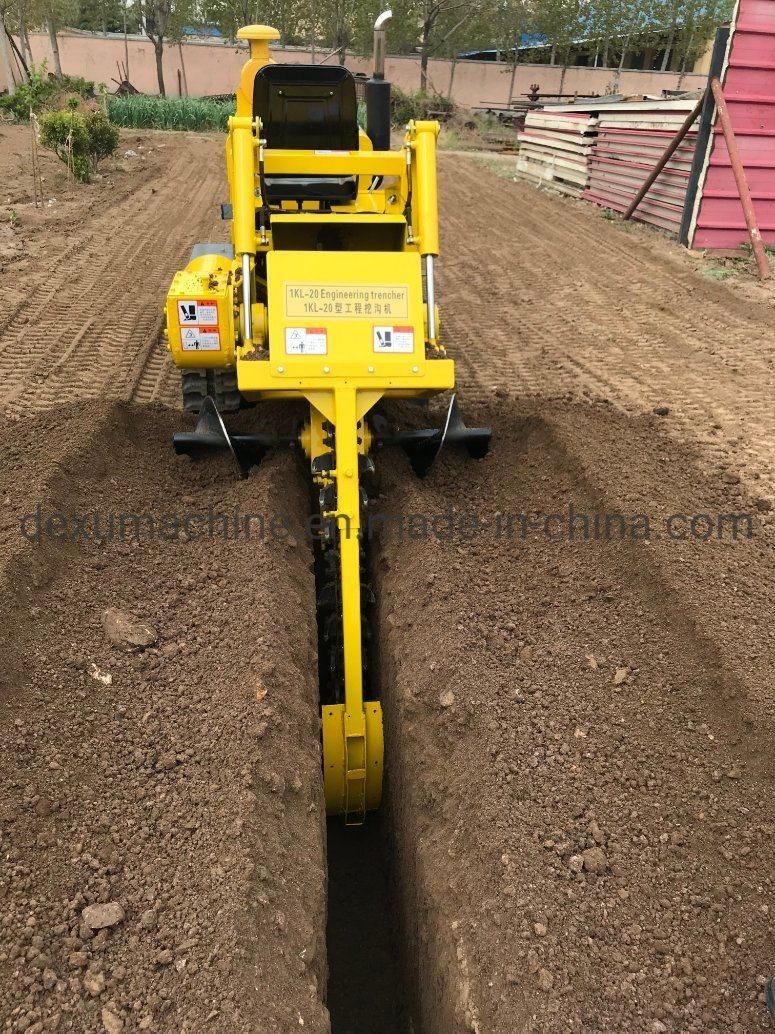

 This machine is used for dig ditch in engineering construction and agriculture, has the functions of digging and backfill, flexible and easy operating, especially apply to condition of environment space narrow difficult to carry out traditional opreating.

It is widely used in construction operating of communication cable, optical cable, all kinds off pipe, petroleum pipeline.
    B. Feature
a. Configure an efficient diesel engine, powerful, high efficiency.
b. Adopt alloy blade and carbon steel blade, more wear resisting.
c. Trenching width and depth can be freely adjusted.
 C. Standard Configuration

Yunnei diesel engine / high quality motor / electronic start / wear-resistant engineering rubber track / 200mm wide standard chain / carbon steel blade / equipped with water temperature gauge, oil gauge and water temperature gauge / headlights


D. Optional Configuration

150mm wide chain / 200mm wide chain / 300mm wide chain / depth can be customized as needed


E. Application

Suitable for irrigation channels, gas pipelines, oil pipelines, water pipelines, underground cable laying and other work ditching operations.


MODEL	1KL-20
WEIGHT
Total weight	1350kg
SIZE
L*W*H	3950*1000*1450mm
Track width	230mm
Track length	3096mm
DRIVE
Drive way	Diesel engine
Power	29.5kw
Motor speed	2400rpm
CAPACITY
Diesel tank capacity	28L
SPECIFICATION
Trenching depth	0-1400mm
Trenching width	120-300mm

F. About us

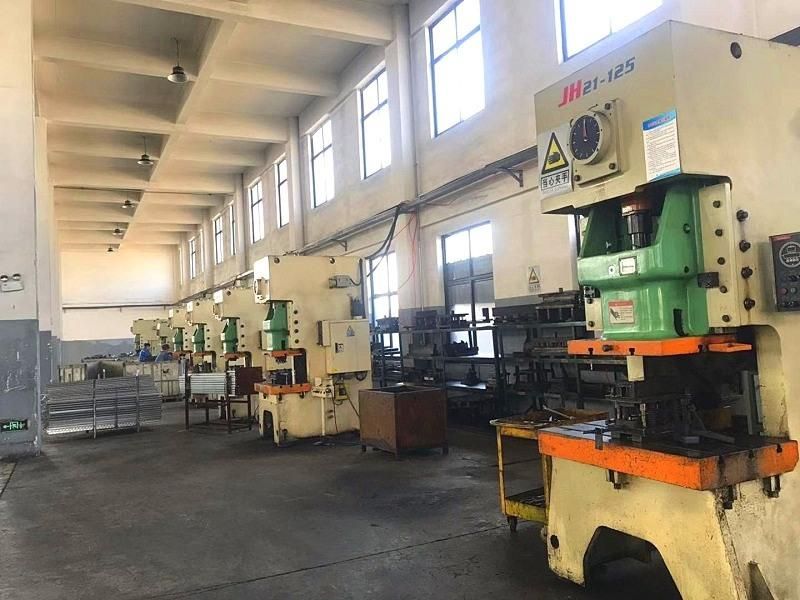

Qingdao Dexu machinery Co., Ltd. Is a machinery manufacturing and trading company. Mainly focus on shot blasting cleaning machinery, sand casting equipment, construction machinery, rubber machinery, machinery parts, and has all kinds of equipment, products import and export license.
