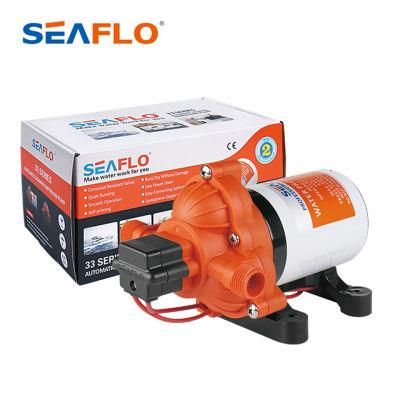

• Model NO.：SFDP1-030-045-33
• Ground Drainage and Irrigation Machinery Type：Pumping Irrigation
• Certification：CE, UL
• Condition：New
• Application Field：Yacht, RV
• Voltage：24V
• Flow Rate：13.2lpm,3.5gpm
• AMPS：4.0A Max
• Pressure：45psi,3.1bar
• Port Dimension：1,2"-14 Mnpt
• Diaphragm：Santoprene
• Valve：EPDM,Viton
• Protection：Thermal,Ignition Protection
• Application：RV,Marine,Yachts,Boat,Caravan,Water System, Ect
• Transport Package：Strong Carton,Poly Foam.
• Specification：CE
• Trademark：SEAFLO
• Origin：Fujian, China
• HS Code：8413509090
• Production Capacity：20000

PUMP

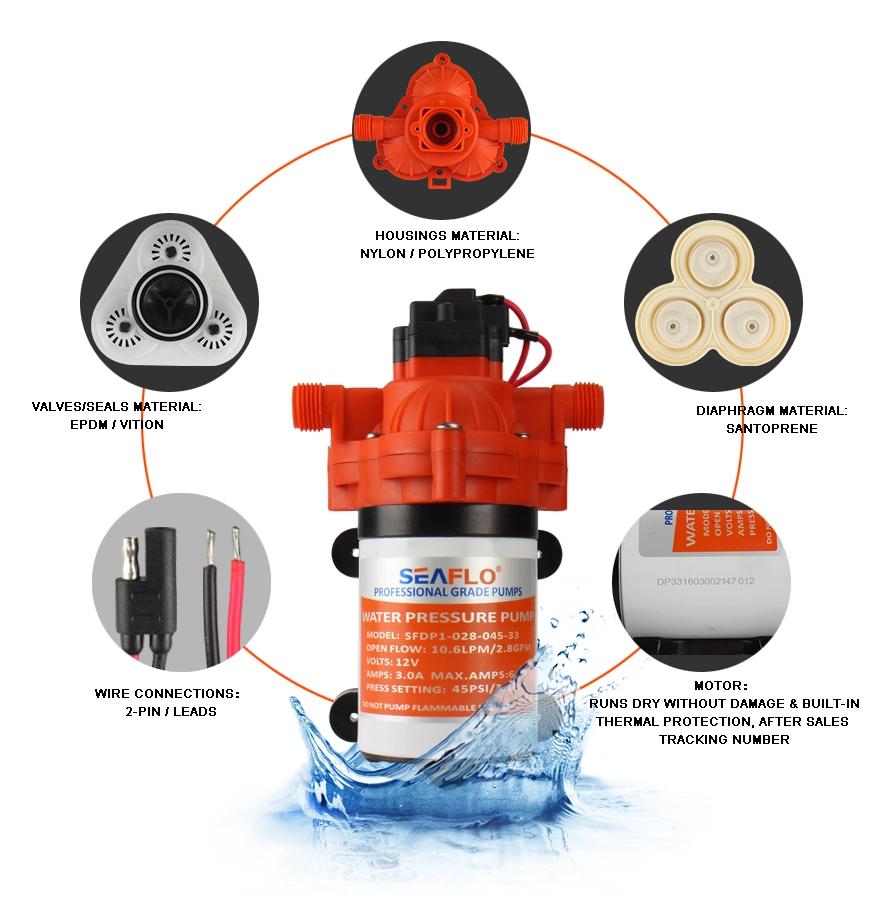

Type	3 Chamber positive displacement diaphragm pump, self priming, capable of being run dry
Control Type	Pressure switch
Max Recommended Temperature	60° C(140° F)
Priming Capabilities	6 feet (1.8 m) suction lift
Re-start Pressure	Shut-off Pressure 45PSI : 35 PSI ±5 PSI (±0.3 bar)

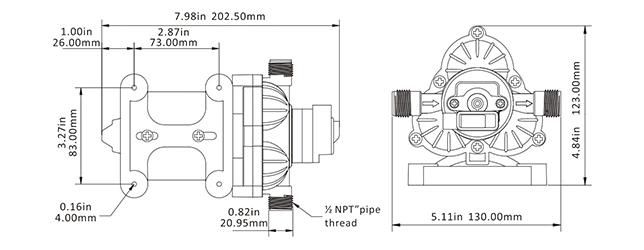

Inlet/Outlet Ports	1/2"-14 MNPT
Weight	4.2 lbs (1.9 kg)



MOTOR
Leads	16 AWG, 13" (33cm) long with 2-Pin connector/Leads
Duty Cycle	Intermittent
Max.Amp Draw	8.0 A
Fuse	12.0 A





STANDARD PUMP CONFIGURATIONS

ModelVoltage

Open Flow

(GPM/LPM)

Control Type

Max Draw

Shut-off Pressure

(PSI/BAR)

ValvesDiaphragmPorts

Wire Connections

SFDP1-030-045-3312V3.0 / 11.6Switch8.0A45 / 3.1EPDMSantoprene1/2"-14 MNPT2-Pin/LeadsSFDP2-030-045-3324V3.0 / 11.6Switch4.0A45 / 3.1EPDMSantoprene1/2"-14 MNPT2-Pin/LeadsSFDP1-028-045-3312V2.8 / 10.6Switch6.0A45 / 3.1EPDMSantoprene1/2"-14 MNPT2-Pin/LeadsSFDP2-028-045-3324V2.8 / 10.6Switch3.5A45 / 3.1EPDMSantoprene1/2"-14 MNPT2-Pin/Leads

Consult factory for other available models.





PERFORMANCE

2.8 GPM

PRESSURE		FLOW		CURRENT
PSI	BAR	GPM	LPM	APMS
0	0	2.67	10.11	3.6
10	0.69	2.30	8.71	5.8
20	1.38	1.98	7.49	6.7
30	2.07	1.67	6.32	7.5
40	2.76	1.37	5.19	8.1
45	3.10	0	0	0



3.0 GPM

PRESSURE		FLOW		CURRENT
PSI	BAR	GPM	LPM	APMS
0	0	3.03	11.47	5.4
10	0.69	2.74	10.37	6.3
20	1.38	2.43	9.20	7.3
30	2.07	1.98	7.49	8.4
40	2.76	1.56	5.9	9.3
45	3.10	0	0	0

SHIPPING INFORMATION



Unit Pump Weight

4.24 lbs (1.92 kg)

Selling Unit Size (L x W x H)

8.5"x 5.63"x 5.12
(26.4 x 14.3 x 13 cm)

Selling Unit Weight

4.77 lbs (2.16 kg)

Master Carton Size (L x W x H)

23.62"x 10.83"x 11.5"
(60 x 27.5 x 29.2 cm)

Master Carton Qty

8 pcs

Master Carton Weight

38.1 lbs (17.28 kg)

FAQ
1. What is your MOQ?
100 pieces in general, but we also sale about 10--50 pieces for new costumers for their sample testing.

2. What about the delivery time?
It depends on your order quantity; it usually takes 15-25days upon receipt of your 30% deposit by T/T.
Sample can be delivered within 7days.

3. Can I buy different types in one container?
Yes, you can mix different types in one container.

4. Do you have oversea agents?
1. Of course. We have many agents overseas, such as Dacon Europe A/S in Denmark, A P Lifting Gear Company LTD in United Kingdom, SEAFLO MARINE & RV NORTH AMERICA, LLC in United States, Bin Alshaikh Abobaker for Treading in Yemen, Williams Industrial Products Pty Ltd/Marine Systems Australia and SEAFLO AUS pty in Australia, Azzi Sport Marine S.A.R.L in Lebanon, SARAY DENIZ MALZEMELERI YATCILIK SAN.TIC.LTD.STI in Turkey, RECAMBIOS MARINOS S.L in Spain, DINO CO.,LTD in South Korea.
2. Welcome oversea agents!

5.Do you accept OEM/ODM
Yes. We are also the OEM supplier of many famous companies, such as WALMAT.

6. What is your terms of payment.
T/T, 30% in advance, balance against B/L copy.

7. What is your warranty?
5 years, and within 24 hours reply will be provided to solve customers' problems.

8. What is your port of loading?
Fuzhou Port.
