• Model NO.：PM-200B
• Pellet Mill Type：Flat Die Pelletizer
• Bulking Machine Type：Sigle Screw Bulking Machine
• Expanding Method：Wet Expansion
• Condition：New
• Applicable Materials Shape：Powder
• Warranty：12 Months
• Power：7.5kw
• Pellet Diameter：2-10mm
• Pellet Length：Adjustable
• Certification：Ce, SGS
• Keyword 1：Animal Feed Machine
• Keyword 2：Animal Feed Making Machine
• Keyword 3：Animal Feed Pellet Machine
• Keyword 4：Animal Feed Pellet Mill
• Keyword 5：Poultry Feed Pellet Machine
• Transport Package：Standard Export Package, Eooden Case
• Specification：1000*430*950 mm
• Trademark：AG Mach
• Origin：China
• Production Capacity：200-300 Kg Per Hour

Basic Info.

Model NO. PM-200B Pellet Mill Type Flat Die Pelletizer Bulking Machine Type Sigle Screw Bulking Machine Expanding Method Wet Expansion Condition New Applicable Materials Shape Powder Warranty 12 Months Power 7.5kw Pellet Diameter 2-10mm Pellet Length Adjustable Certification Ce, SGS Keyword 1 Animal Feed Machine Keyword 2 Animal Feed Making Machine Keyword 3 Animal Feed Pellet Machine Keyword 4 Animal Feed Pellet Mill Keyword 5 Poultry Feed Pellet Machine Transport Package Standard Export Package, Eooden Case Specification 1000*430*950 mm Trademark AG Mach Origin China Production Capacity 200-300 Kg Per Hour

Product Description

Factory Direct Supply Hot Sales Poultry Feed Processing Equipment



Introduction of China Best Quality New Technology Feed Pellet Machine:

These pellet machines are the new designed products of our company and the main parts of the fodder machinery system. They are widely used in feed factories, breed aquatics factories, organic fertilizer factories, chemical factory and China traditional medicine factories, etc. It can be used together with power material.Its capacity is superior in the same industry home and abroad.Now this animal feed pellet machine is mainly used to make feed pellets for rabbit, pigeon, layer chicken, broiler, duck, goose, fish, pig and so on.The key parts are made of alloy steel to be very strong and malleable.Now our machines have been exported to Zambia, Qatar, Sri Lanka, Indonesia, America, Tunisia, Turkey and so on.

Specification:

Model	Power	Capacity	Dimension	Weight
PM-200B	7.5 kw	200-300 kg/h	1000*430*950 mm	240/270 kg
PM-230B	11 kw	300-400 kg/h	1140*470*970 mm	290/320 kg
PM-260B	15 kw	400-600 kg/h	1200*500*1070 mm	330/380 kg
PM-300B	22 kw	600-800 kg/h	1270*520*1070 mm	410/450 kg
PM-360B	22 kw	800-900 kg/h	1270*520*1070 mm	470/500 kg
PM-400B	30 kw	1000-1200 kg/h	1470*600*1150 mm	630/660 kg

Functions China Best Quality New Technology Feed Pellet Machine:

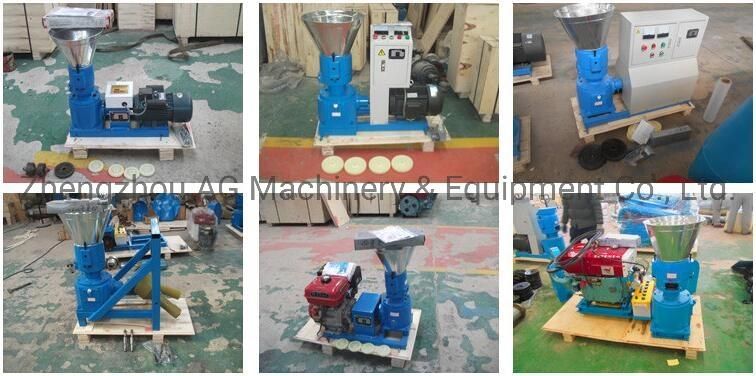

This series machine can be powered by both diesel engine and e-motor. We adopt the new design of direct connection of motor shaft and the main shaft that overcome the loose defect of belt connecting as long time using. When the raw materials are added in the template by pressing roller, they will be heated to 60-80 degrees by the friction among them. After being pressed through the template, the fodder will be thrown out from the machine in a state of granule. You can choose the size of the granules by using different template with different size of holes in it.A diesel engine is another choice to drive the machine, together with the clutch and accelerating decelerating device to change its speed. It is still for the belt to drive the main shaft. The feed pellet mill can run smoothly and with few noises.



Working Principles of China Best Quality New Technology Floating Fish Feed Pellet Machine:

The main shaft and flat die in the effect of friction drives the pressing roller rotating itself. The temperature will rise between the pressing roller and mould disk, then the high temperature will ripening the starch, make the protein denaturation and solidification. Finally the raw materials will discharged from the mould holes. Then the pellets can be get out of the machine through the throwing disk. We can control the length of the pellets according to adjust the angle of cutting knives.




Features of China Best Quality New Technology Feed Pellet Machine:
1. Main driving is high accuracy gearbox and high output.
2. It belongs to the feed making machine.The raw material can be corn, the soybean, the straw, the rice husk and any other agriculture materials, which is one equipment of the feed pellet mill.
3. It is widely used for pelletizing high rank poultry and livestock products.
4. It is widely used in large,middle, small scale aquatic. food and feed processing factory, livestock farm, poultry farm, individual raisers, middle and small farm.
5. It is widely used in large, middle, small scale aquatic, food and feed processing factory, livestock farm, poultry farm, individual raisers, middle and small farm.
8. International advance steam fittings and imported pressure reduction valve.

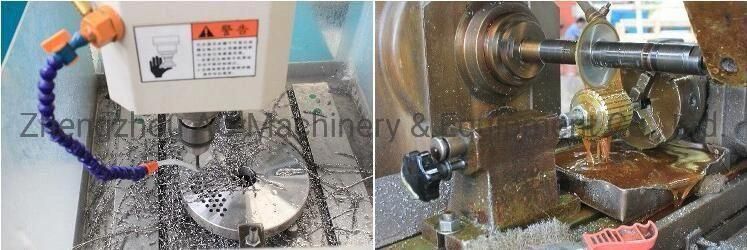

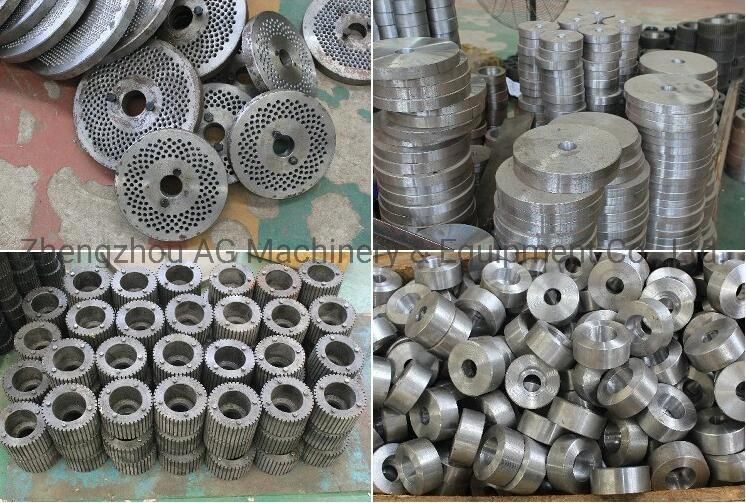

9. Flat die is made with international advanced equipment for long lifespan.
10. Drive with heavy duty gearbox, which can produce continuously in most adverse condition.
11. The key parts are made of alloy steel to be very strong and malleable.
12. The important key elements are of high performance with long life and low maintenance cost.






Raw material for feed pellets:

Rice husk, cotton stalk, cottonseed skins, weeds, crop stalks and other plant wastes, especially low-bonding and unformed materials.
The moisture of raw materials is less than the national standard of 13%. If not, the raw material must be dried. The size of raw materials is no more than 5mm, if not, the raw material must be crushed.

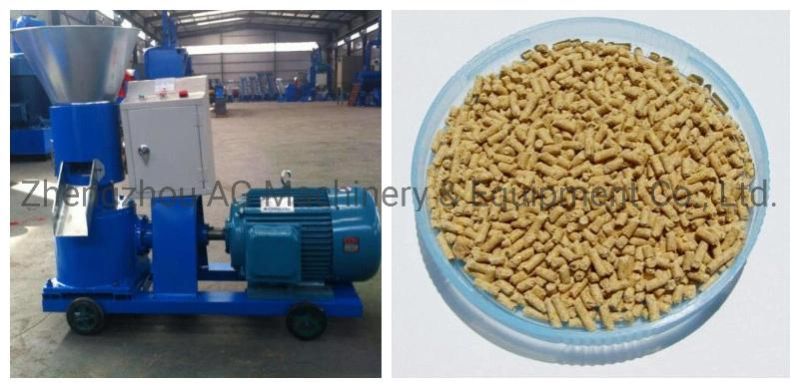

Feed Pellets:

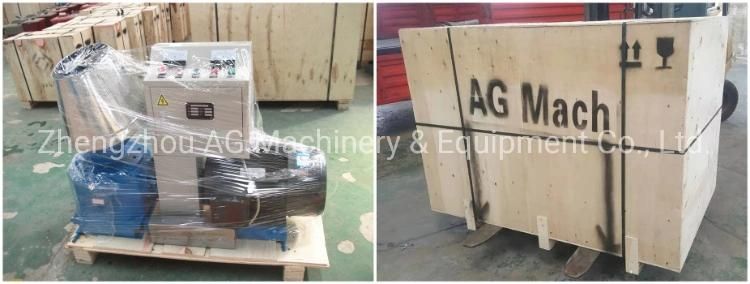

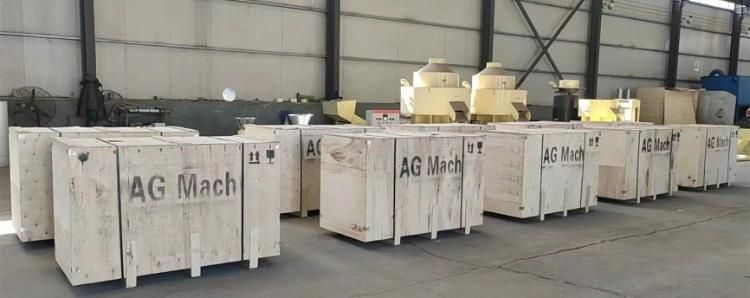

Package&Delivery
