• Model NO.：LX80
• Traction Type：Traction
• Drive Type：Chain Drive
• Arbor Configuration：Vertical Shaft
• Certification：ECE, EU, CE
• Warranty：1 Year
• Transport Package：Sea Freight
• Trademark：LuGong
• Origin：Shan Dong China

Basic Info.

Model NO. LX80 Traction Type Traction Drive Type Chain Drive Arbor Configuration Vertical Shaft Certification ECE, EU, CE Warranty 1 Year Transport Package Sea Freight Trademark LuGong Origin Shan Dong China

Product Description

LuGong Soil Preparation Machinery Rotary 3 Point Hitch tiller with ECE1. The frame is made of thickened steel plate, which is strong and durable, effectively reducing the vibration generated by the engine and prolonging the life of the machine;
2. The engine adopts a four-cylinder 498 Zhejiang Xinchai engine. National three-belt turbocharger, strong power, economical and fuel-efficient, less emissions, more environmentally friendly;
3. The special gearbox for crawler is formed in one piece, and the rear power output and the walking box are in the same gearbox, so that the walking and the rear power output are more coordinated.
tune. The unilateral power cut-off steering can turn 360° on the spot, making the turning and steering more flexible. There are dual brake systems to make the braking effect
Better fruit. There are 4 forward gears and 1 reverse gear, respectively with high and low gears, a total of 10 gears. Rear power output points are high and low
Gear, 720 rpm at high speed and 540 rpm at low speed. There are strong pressure cylinders at the front and rear, which can realize strong lifting and strong lowering, and the operation is more stable;
4. The unique wheel-side deceleration axle enables the machine to have a crawling gear, which can meet the needs of high-speed operations such as digging medicinal materials, ditching, and breaking roads.
4. Elevate and widen the chassis, so that the machine has a good passing performance;
4. Lengthen the bottom frame to make the grounding area of the track longer and wider, and also ensure the stability of the machine before and after, making it easier to climb hills, pass through ditches, etc. through complex terrain.
increase safety and smoothness;
5. The use of 2 top wheels can reduce the vibration of the track, so that the track will not derail;
6. The single side adopts the design of installing 1 driving wheel, 7 supporting wheels, 2 top wheels, and 1 tensioning wheel, and using 7 supporting wheels can effectively control the machine
The weight of the machine is distributed to each 1 wheel, which reduces the weight of the wheel and makes the wheel more durable.
7. The machine steering adopts unilateral hydraulic cut-off power to reduce the wear on the brakes (discs and pads) and prolong the service life;
7. The sheet metal parts of the machine are made of thickened steel plates above T4, which are strong and durable, not easy to deform, and the paint color is made of high-quality spray powder, which has good adhesion
Large and weather resistant.

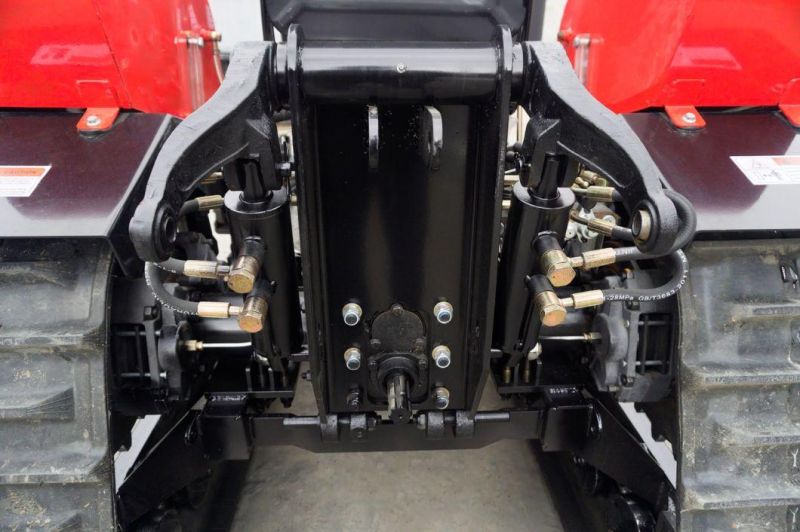

8. The rear-mounted suspension (with suspension) is compatible with all wheeled tractors and agricultural machinery;
9. The hydraulic system of this vehicle is hydraulic transmission oil, which is resistant to high temperature. An 80-mesh filter is installed, which can effectively filter iron filings and impurities in the transmission oil. Refill fluid
The pressure oil radiator reduces the temperature of the transmission oil during use to avoid damage to the gearbox and control failure;

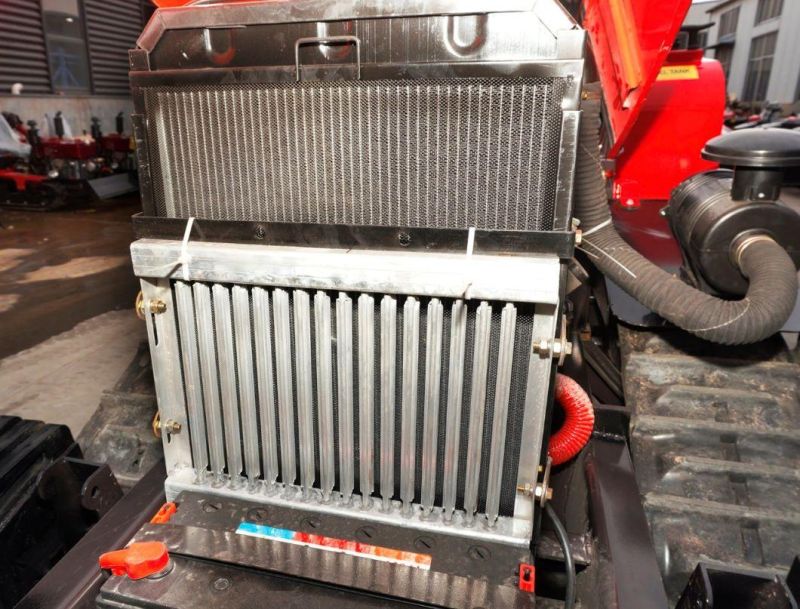

10. Install a water tank radiator to increase the water tank capacity, which can effectively reduce the high temperature generated by the engine during use;
11. The air filter is a dry filter, and the air filter is enlarged, which can filter a large amount of dust and soil. After each work, clean the air filter and blow the dust inside;
11. Install 120A enlarged battery for long battery life;
12. The diesel tank has a large capacity and a long battery life;
13. It is suitable for land operations with limited space and complex terrain such as mountains, hills, orchards, greenhouses, etc.
Free labor, farmers are a good helper


  Shandong LuGong Machinery Co., Ltd was founded in March 2000 which located at the junction of three cities(Yantai, Weifang and Qingdao)-Laizhou Shahe industrial trade park and it's the backbone enterprise of construction machinery national wide with fixed asset 500million Yuan. It covers a land of 200 thousand square meters and has 1,100 employees, 88 of whom are engineers and technicians.
Our company mainly produces loaders, excavators, tippers, tricycles etc. Products are mainly sold to over 20 provinces in China and exported to dozens of countries and regions in Africa, Southeast Asia, South America and Russia. The quality and performance of our small farm-use loaders and construction tippers are in leading position of the industry throughout the nation and well received by users. Now, "Lu Gong" brand loaders and tipper have gained acceptance by dealers and uses all over China.
We focus on quality, performance and consider of users as always. In management, we've achieved a new level by adopting ISO9001:2015 international quality management system.
We would like to develop in economic construction by holding our old and new friends and users hands by following our business philosophy of "Driven by science and technology, seeking survival by quality, benefiting by managing and winning market by service" and spirit of "Pioneering, innovating and pursuing excellence".
