• Model NO.：TQSF-125
• Delivery Time：5-15 Days After Advance Payment
• Has Been Exported to：Australia, Africa, Southest Asia, North America
• Workers Quantity：More Than 100 Workers
• Factory Address：610th, Heping East Road, Shijiazhuang City

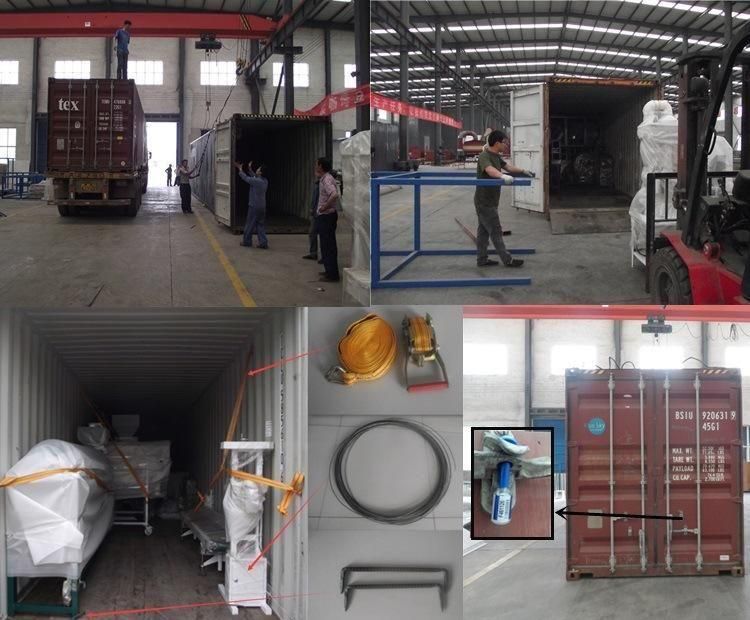

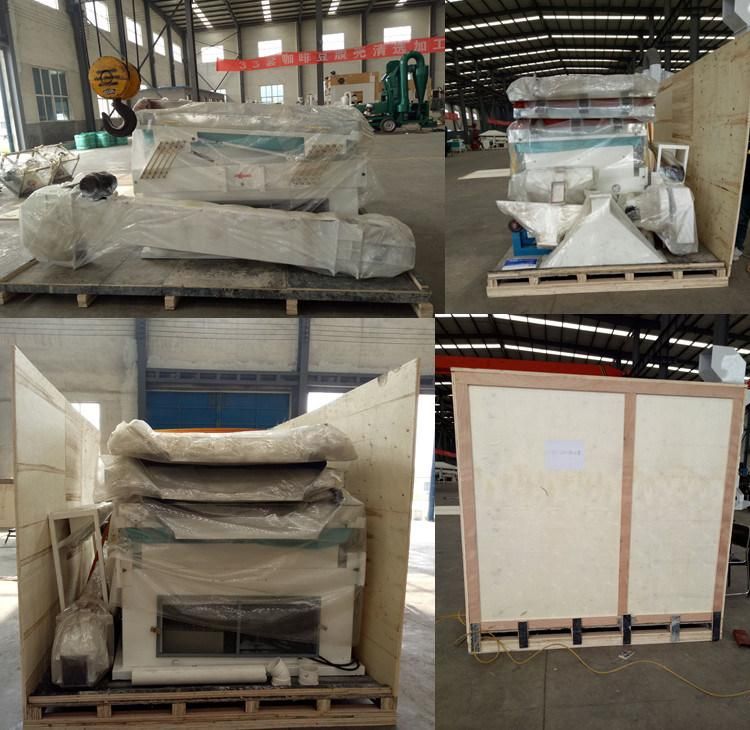

• Transport Package：Usually Export Standard Wooden Boxes
• Specification：SGS, ISO9001, TUV
• Trademark：SYNMEC
• Origin：Hebei, China
• HS Code：843710
• Production Capacity：30 Sets Per Month

Basic Info.

Model NO. TQSF-125 Delivery Time 5-15 Days After Advance Payment Has Been Exported to Australia, Africa, Southest Asia, North America Workers Quantity More Than 100 Workers Factory Address 610th, Heping East Road, Shijiazhuang City Transport Package Usually Export Standard Wooden Boxes Specification SGS, ISO9001, TUV Trademark SYNMEC Origin Hebei, China HS Code 843710 Production Capacity 30 Sets Per Month

Product Description

Sesame Wheat Black Pepper Seed Destoner Stone Remover

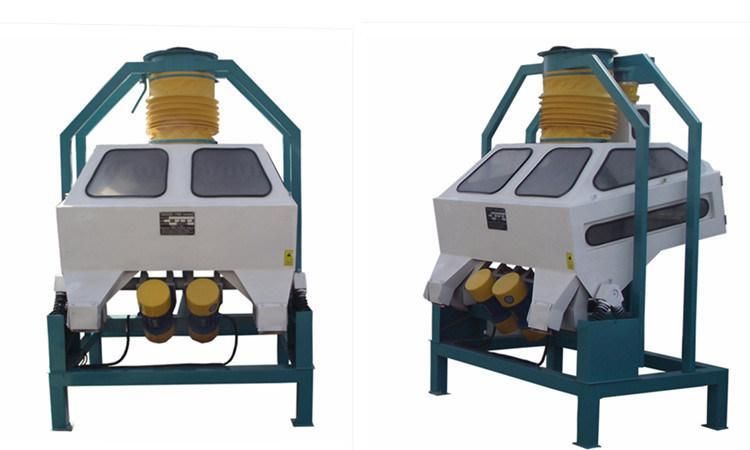

Introduction of TQSF-125 Seed Destoner Stone Remover
TQSF destoner is applied for efficient separation of stones and pebbles, glass, and other high-density impurities from the stream of grain, according to the difference in specific weight.

Features of TQSF-125 Seed Destoner Stone Remover
TQSF-125 Destoner is suction type destoner, but it has two sieve layers, the first sieve layer to remove out some large impurities such as straws, and the second sieve layer is used for remove out stones.

Working Principle of TQSF-125 Seed Destoner Stone Remover
The sieve box normally equipped with two-layer sieves, and its vibration depend on two vibratory motors.
The grain feed in with an elevator, and then the grain stream fluided by the vibration of the screen and air suction from bottom to top. The light particles collect at the top, and the heavy ones including the stones at the bottom.
The lower layer with the heavy particles flows upward and transport to the stone outlet. The stone-free grain streams on the two screens float on cushions of air, flowing slowly toward the grain outlet.
To achieve the optimum degree of separation, the inclination of the screens, the air volume and final separation can be adjusted accordingly.


Model	Capacity (tone/hour)	Power (kw)	Weight (kg)	Dimension (L×W×H)mm	Remarks
5XQS-3 Destoner	3	4.75	600	2200×1200×1600	Blowing type
5XQS-5 Destoner	5	7	700	2500×1660×1600	Blowing type
QSX-85 Destoner	5	3.55	400	1300 ×1500×3200	Suction type
TQSF-60 Destoner	5	3.5	320	1450×876×1800	Suction type
TQSF-80 Destoner	7.5	3.5	400	1450×1046×1800	Suction type
TQSF-100 Destoner	10	3.5	480	1450×1246×1920	Suction type
TQSF-125 Destoner	12.5	6.24	580	1460×1500×1940	Suction type
