• Model NO.：5XQS-5
• Cleaning Rate：98%
• Type：Air Blowing
• Input：3 Phase Electricity
• Customized：Available
• Transport Package：Plywood Case or Nude
• Specification：ISO9001, TUV, SGS
• Trademark：SYNMEC
• Origin：Hebei, China
• HS Code：8437109000
• Production Capacity：50 Set,Month

Basic Info.

Model NO. 5XQS-5 Cleaning Rate 98% Type Air Blowing Input 3 Phase Electricity Customized Available Transport Package Plywood Case or Nude Specification ISO9001, TUV, SGS Trademark SYNMEC Origin Hebei, China HS Code 8437109000 Production Capacity 50 Set/Month

Product Description

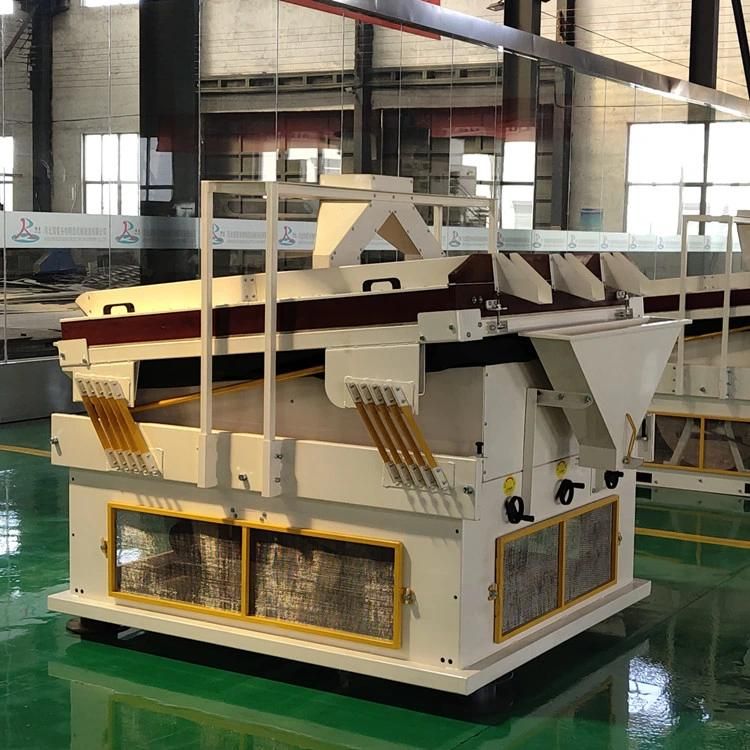

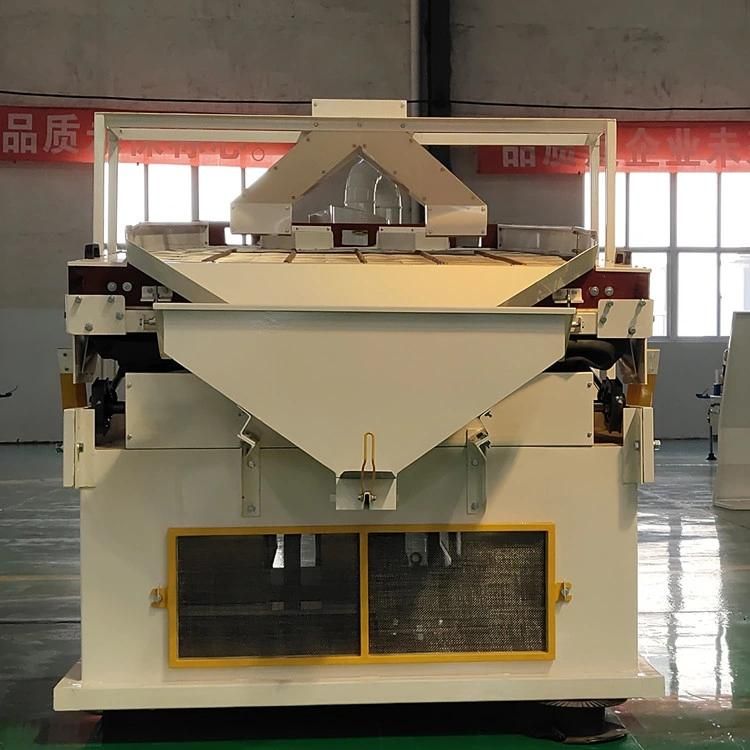

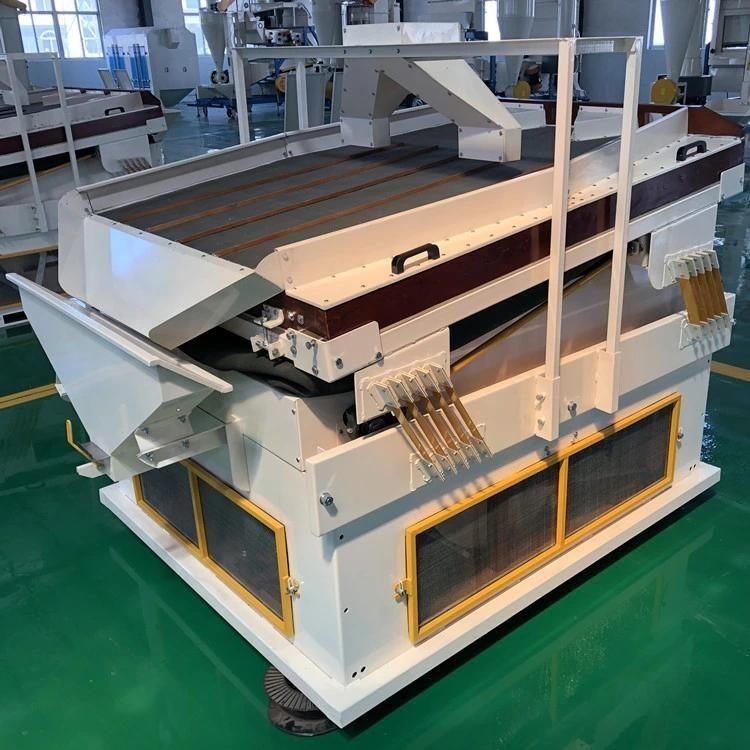

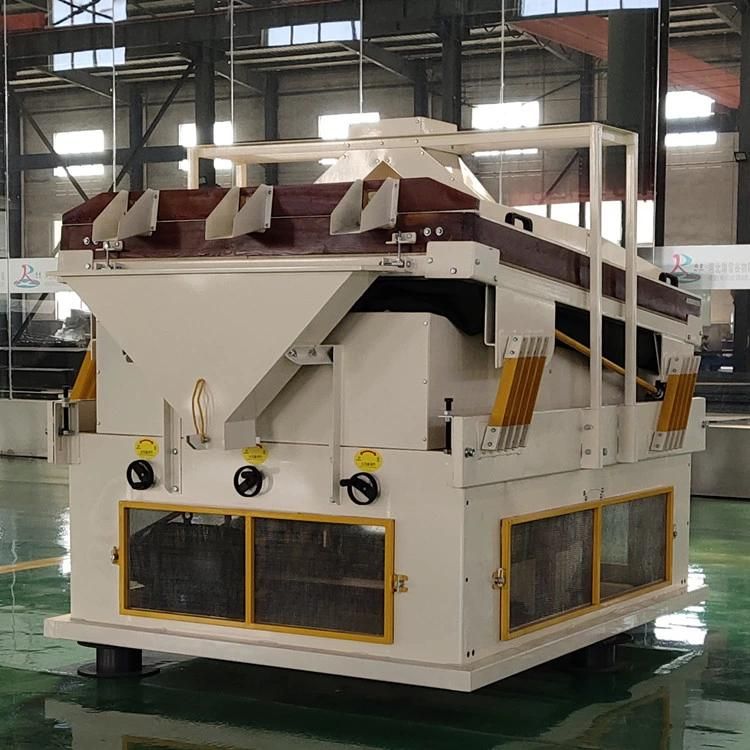

                                      Cocoa Bean Kidney Bean Destoner (5XQS-5)

Introduction of 5XQS-5 cocoa bean kidney bean dry stoner

5XQS-5 cocoa bean kidney bean dry stoner is used to remove heavy foreign impurity like stone, metallic and glass pieces etc., on the principle of weight difference.

Principle of 5XQS-5 cocoa bean kidney bean dry stoner

With the combination of fluidization and deck oscillation, heavy particles migrate to upper levels of the deck discharge from outlets and the light particles move to the lower level of the deck.

Features of 5XQS-5 cocoa bean kidney bean dry stoner

The 5XQS-5 cocoa bean kidney bean dry stoner is the blow type destoner, which is not only widely applied for removing stone from all kinds of seeds and grains, also can be used in other fields such as remove stone from active carbon.
The 5XQS-5 cocoa bean kidney bean dry stoneris equipped with the Electromagnetic speed controller which can adjust the vibrating frequency of sieve table, as a result it has a perfect effect on removing stones.

Parameter


Model	5XQS-3 destoner	5XQS-5 destoner
Capacity	3000 kg	5000 kg
Power	4.75 KW	7 KW
Dimension of Sieves	1260×1800 mm	1560×1800 mm
Dimension (L*W*H)	2200×1200×1600 mm	2500×1400×1600 mm
Weight	600 kg	700 kg
