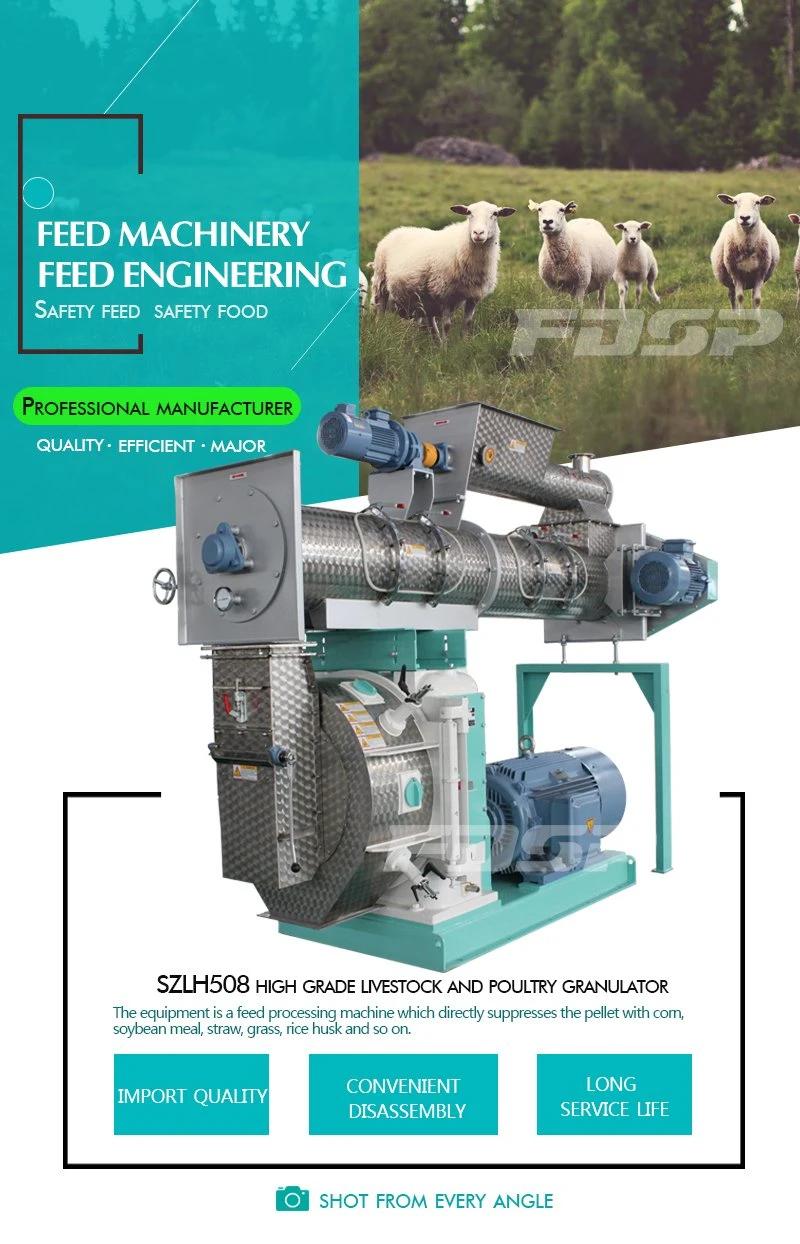

Hot Sale Feed Mill Machine Animal Feed Pellet
Jiangsu Liangyou Zhengda Co., Ltd.- After-sales Service：Provided
- Type：Pellet Mill
- Processing Object：Beans
- Processing Technics：Pelletizing System
- Screen Mesh：With Screen Mesh
- Grinding Equipment Type：Feed Hammer Mill
Base Info
- Model NO.：SZLH508
- Pellet Mill Type：Ring Die Pelleter
- Bulking Machine Type：Twin Screw Bulking Machine
- Expanding Method：Wet Expansion
- Condition：New
- Applicable Materials Shape：Powder
- Warranty：1 Year
- Output (T/H)：6-20
- Voltage：380V 50Hz
- Conditioner：Customized
- Material：Customized
- Transport Package：Pallet
- Specification：1500KG
- Trademark：FDSP
- Origin：Jiangsu China
- HS Code：84361000
- Production Capacity：6-20tph
Description
Basic Info.
Model NO. SZLH508 Pellet Mill Type Ring Die Pelleter Bulking Machine Type Twin Screw Bulking Machine Expanding Method Wet Expansion Condition New Applicable Materials Shape Powder Warranty 1 Year Output (T/H) 6-20 Voltage 380V 50Hz Conditioner Customized Material Customized Transport Package Pallet Specification 1500KG Trademark FDSP Origin Jiangsu China HS Code 84361000 Production Capacity 6-20tphProduct Description
Hot Sale Feed Mill Machine Animal Feed PelletFeatures
1. Gear directly-connecting driving is adopted for high efficiency;
2. Full stainless steel feeder; Variable pitch anti-bridging structure; Imported FC control;
3. LL stainless steel conditioner with axial steam spraying extends the conditioning and cooking time;
4. Main gear and pinion shaft adopt the carbonizing quenching with high accuracy; Smooth driving, low noise and long service life;
5. Gearbox and driving holes' accuracy are guaranteed by specialized casting supplier and NCC;
6. The bearing and oil seal in the main drive are imported, and especially lubrication oil return system is available to ensure reliable bearing lubrication;
7.2 pc quick disassembling type precisely-cast die clamp is adopted to connect the die and quill flange, resulting in convenient and quick disassembling of die;
8. Pellet chamber door and feed chute are fully made of stainless steel with high anti-corrosion ability and long service life;
9. The connection between motor and gearbox adopts new type S-shape spring coupling with more convenient disassembling and assembling and more reliable use.

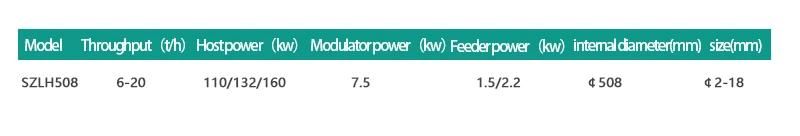

| Model | Output (t/h) | Main Power (kw) | Power Of Conditioner (kw) | Power Of Feeder (kw) | ID Of Die (mm) | Pellet Size (mm) |
| SZLH508 | 6-20 | 110/132/160 | 7.5 | 1.5/2.2 | 508 | 2-18 |
