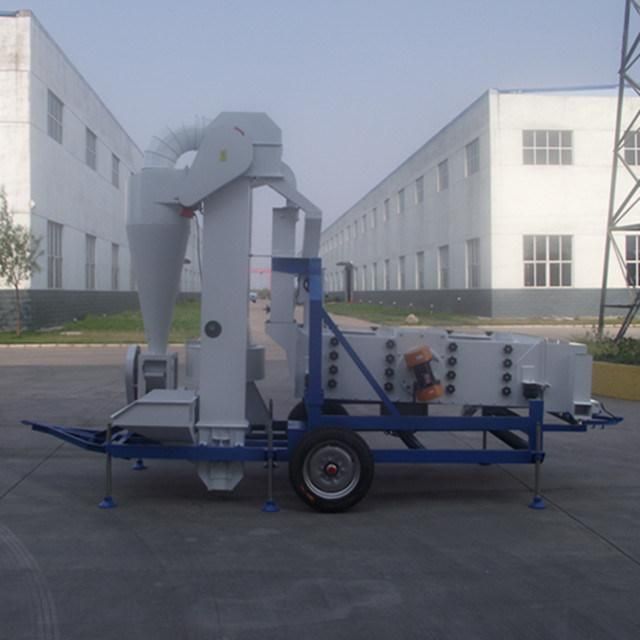

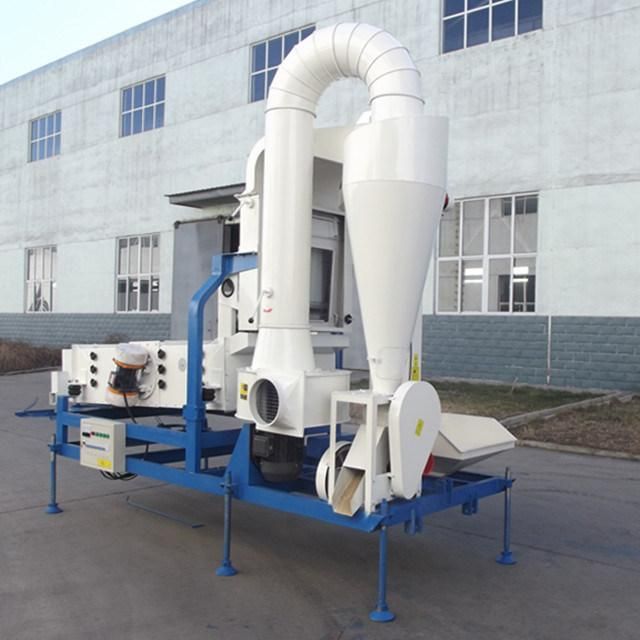

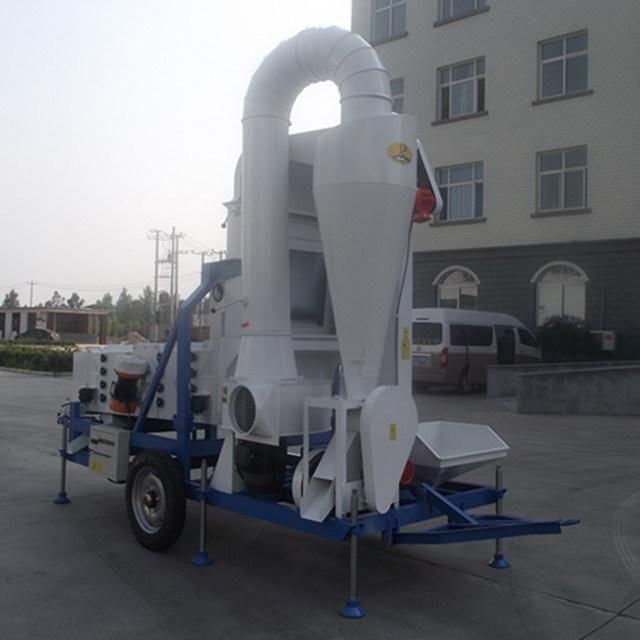

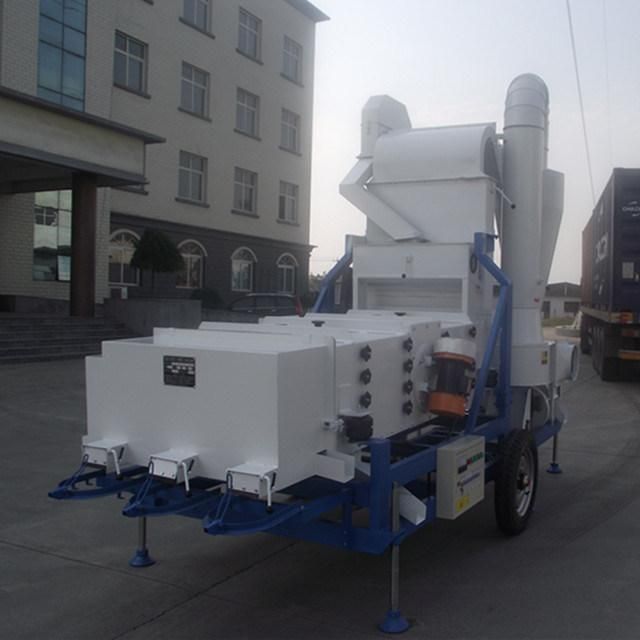

Grain Seed Cleaning Machine (5XZC-5DH)
Hebei Ruixue Grain Selecting Machinery Company Limited- Model：5XZC-5DH
- Capacity (T/H)：5
- Power(Kw)：7.74
- Weight(T)：1.6
- Advantage：Installed Cyclone Dust Separater
- Color：White
Base Info
- Model NO.：5XZC-5DH
- Sieve Layer：3
- Input：3 Phase
- Customized：Available
- Delivery Date：20 Days
- Transport Package：Plywood Case
- Specification：ISO9001 TUV SGS
- Trademark：SYNMEC
- Origin：Hebei China
- HS Code：84371090
- Production Capacity：100 Set,M
Description
Basic Info.
Model NO. 5XZC-5DH Sieve Layer 3 Input 3 Phase Customized Available Delivery Date 20 Days Transport Package Plywood Case Specification ISO9001 TUV SGS Trademark SYNMEC Origin Hebei China HS Code 84371090 Production Capacity 100 Set/MProduct Description
Grain Seed Cleaning Machine1. Range of use for 5XZC-5DH Grain Seed Cleaning Machine
2014 The Hottest Grain Seed Cleaning and Graing Machine (5XZC-5DH) is used for cleaning and grading seeds, grains, cereals, and other granule products, such as wheat, paddy, rice, maize, millet, cumin, sunflower seed, soybeen, coffee bean, cocoa bean, oil seed, etc. Seed Cleaning and Grading machine can be equipped to suit a variety of special jobs and purposes.
2. Working principe of Grain Seed Cleaning and Graing Machine (5XZC-5DH)
Dust and light impurity are removed by aspirator fan. Material falls on sieve layers and was separated by sieves according to width and thickness difference. All the oversize and undersize impurities were discharged from outlets.
3. Grain Seed Cleaning and Graing Machine Parameter
| mode | Capacity(T/H) | Power(KW) | weight(MT) | Dimension(MM) | Remarks |
| 5XZC-3A | 3 | 8.5 | 1.3 | 3750*1950*2750 | Installed Maize Thresher |
| 5XZC-5A | 5 | 12.74 | 1.6 | 4650*2120*3100 | Installed Maize Thresher |
| 5XZC-15A | 10 | 20.93 | 2.2 | 5400*2450*3250 | Installed Maize Thresher |
| 5XZC-3B | 3 | 4.25 | 1.2 | 3750*1650*2750 | Grain cleaniing and grading functions |
| 5XZC-5B | 5 | 6.99 | 1.5 | 4650*1850*3100 | Grain cleaning and grading functions |
| 5XZC-5DH | 5 | 7.74 | 1.6 | 4650*1850*3100 | Installs cyclone dust separator |
| 5XZC-25 | 20 | 20.95 | 2.9 | 5820*2650*3600 | Double air cleaning system |
| 5XZC-7.5F | 7.5 | 10.1 | 1.8 | 5150*2160*3400 | Double air cleaning ,stone removing and grading all in one |
| 5XZC-3C | 3 | 7.25 | 1.3 | 3750*1650*2750 | Installed Wheat Huller and Cyclone Dust Separator |
| 5XZC-5C | 5 | 10.99 | 1.6 | 4650*1850*3100 | Installed Wheat Huller and Cyclone Dust separator |
