Bean Seed Belt Type Separator

Hebei Ruixue Grain Selecting Machinery Company Limited
  • Capacity(T/H)：5000kg
  • Power：3kw
  • Dimension (L*W*H)：4100X2000X2900 mm
  • Weight：1600kg
  • Transport Package：Wooden Case or Container
  • Specification：ISO9001-2008, TUV, SGS SONKAP

Base Info

  • Model NO.：5XDC-4
  • Trademark：SYNMEC
  • Origin：China
  • HS Code：84371090
  • Production Capacity：1000 Set,Year

Description

Basic Info.

Model NO. 5XDC-4 Trademark SYNMEC Origin China HS Code 84371090 Production Capacity 1000 Set/Year

Product Description

Product Description
                                                                     Bean Belt Type Separator

1. Introduction of Bean Belt Type Separator 5XDC-5
TheBean Belt Type Separator 5XDC-5 is using differences of material's shape and specific gravity, under the
Function of gravity acceleration, to makes the different coefficients of sliding friction and rolling friction on the
Material (beans), lead to grading the material (beans). This machine is suitable for processing the round shape Seed, such as beans etc.
Base on the theory, the machine is made by many belts with certain angle, in order to increase coefficient
Of sliding friction. After starting work, under the function of the acceleration gravity, lead to material moving in
The belt. At the same time impurities will be moved to higher position and collected to impurity outlet, the
Impurity includes clod, stones, half size seed, blight seed and so on. The good seed has small friction, so will Drop to the low outlet. It will provide well clean to your beans.
There are many advantage of the belt-type separator such as advanced design, high manufacturing quality,
Optimal separating effects, efficient, easy to operate, movable, etc. Now it is the best bean separator in the
World.

          Model       Capacity         Power        Dimension          Weight
        5XDC-3             3           2.2  3700*2000*2900            1200kg
        5XDC-4             4             3  4100*2000*2900             1600kg
        5XDC-5             5             4  4500*2000*3300             1800kg

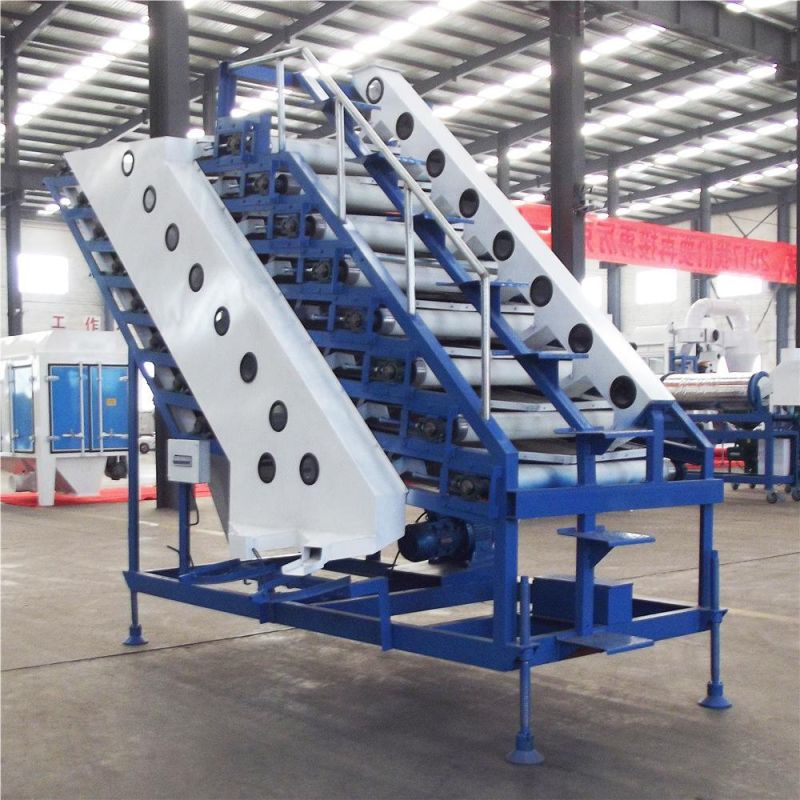

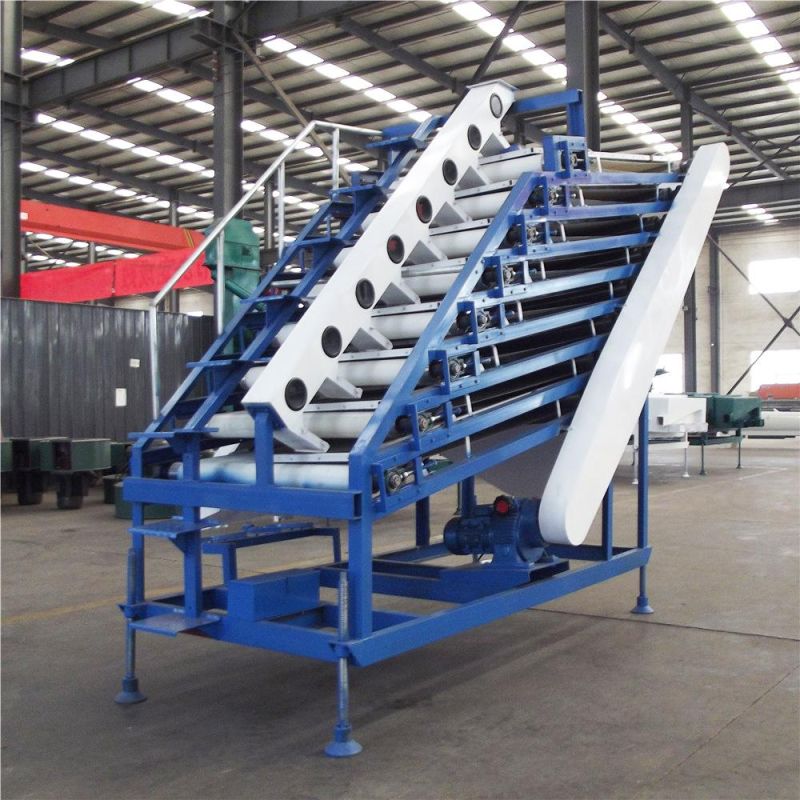

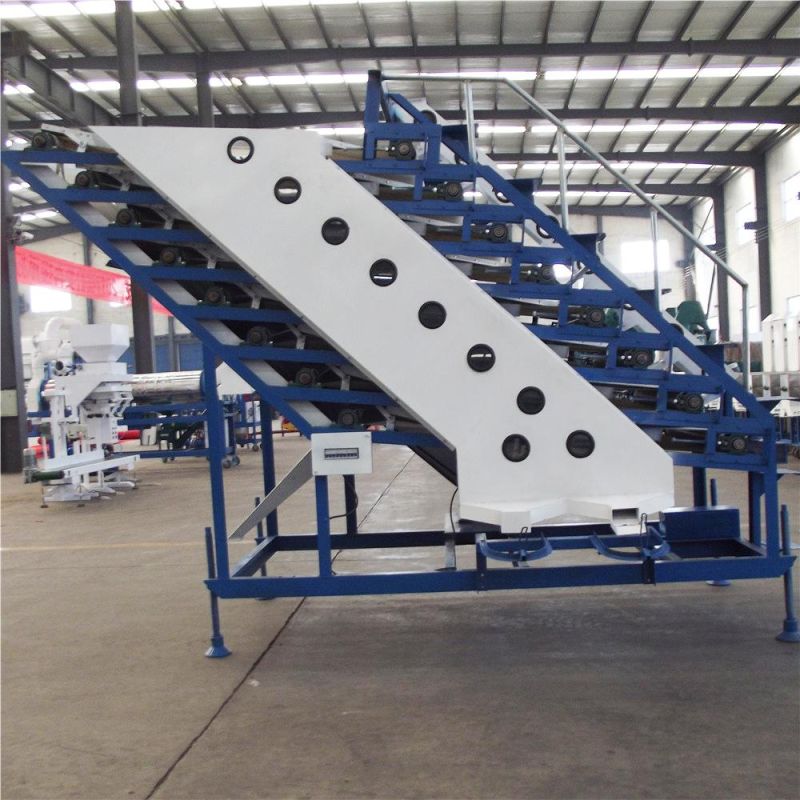

Photos of 5XDC-4
Bean Seed Belt Type Separator
Bean Seed Belt Type Separator
Bean Seed Belt Type Separator

FAQ:
1.Q Are you the factory?
   A Yes, We are a professional grain cleaning machine manufacturers.
2.Q Can you ship to my country?
   A Yes, no problem.
       We can ship your cargo to worldwide.
3.Q How long does the cargo to delivery to my address?
   A It takes about 25-35 workdays to arrive your address by sea.
4.Q Do you help to install the machines?
   A Yes, no problem.we will send our senior engineers to take charge the installation, test running, and training local operators.
