• Model NO.：5X-5
• Origin：Hebei, China
• HS Code：84371090
• Production Capacity：100 Sets,Month

Basic Info.

Model NO. 5X-5 Origin Hebei, China HS Code 84371090 Production Capacity 100 Sets/Month

Product Description

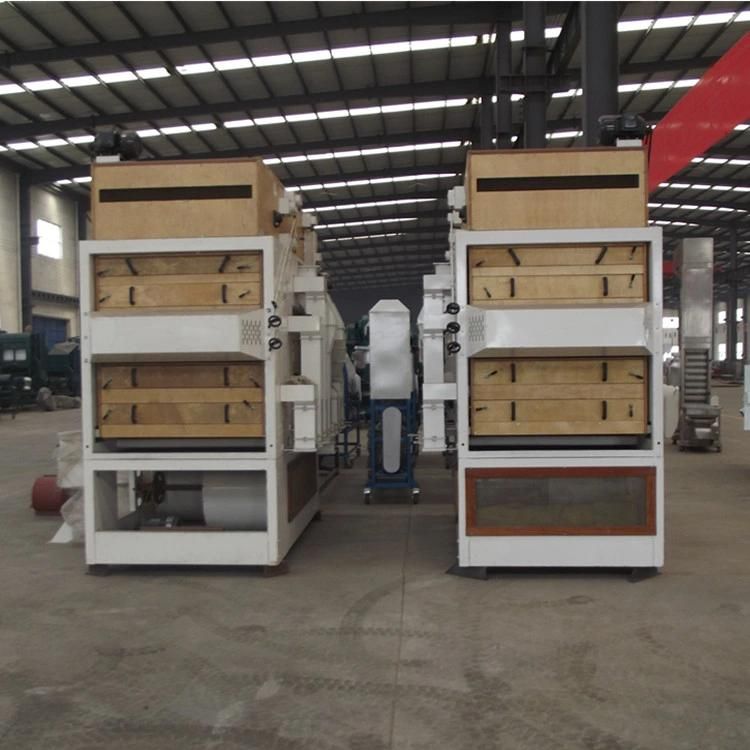

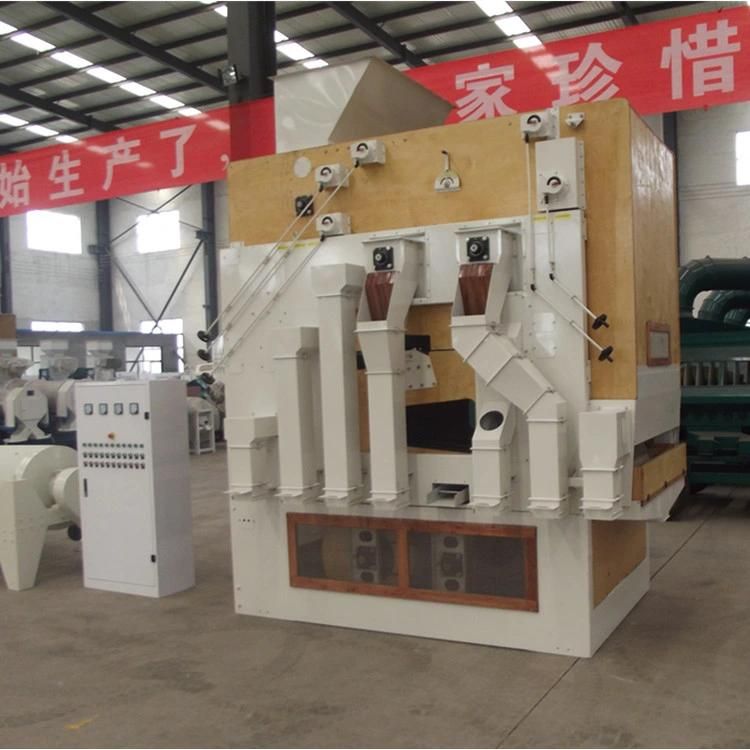

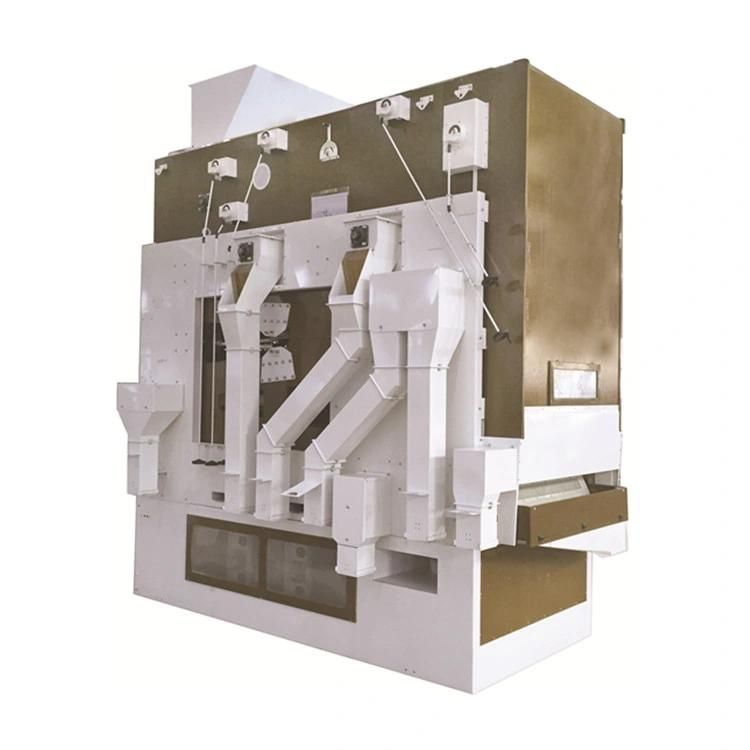

Fine Seed Cleaner Grain Cleaning Machine

INTRODUCTION of Fine Seed Cleaner Grain Cleaning Machine
The 5X series Grain Precleaner is a universal machine well suited for pre- and fine cleaning many different species of grain and seeds. The standard design of the machine is provided with both pre- and after suction units.
Quick screen changing from pre-cleaning into fine cleaning by the operator serves to optimize the cleaning tasks.
The 5X series Grain Precleaner is a very competitive machine, both as regards price and capacity as well as function and operation.
The technology of the machine is thoroughly tested, which can be documented by many references all over the world.

FEATURES of Fine Seed Cleaner Grain Cleaning Machine
Easy and quick operation and screen changing
The screen boxes are made of wear resistant plywood, which is approved for food
Screen cleaning with special rubber balls
Built-in light.
Durable surface of the machine owing to high-quality powder lacquering

Model	5X-5
Dimension(L×W×H)	3200×1920×3600 mm
Overall weight	3250 kg
Rated capacity	5 t/h
Overall air volume	8200 m3
External air blower	4-72N0-6A, 7.5 kW
Vibration sieve motor(gear motor)	2.2 kW
Back lifting system motor	3.0 kW
Feeding motor	1.5 kW
Total Power	6.7 kW
Air Blower Type	centrifuge air blower
Top air blower Rotary speed	4-79NO6A,1400 r/min
Back lifting air blower Rotary speed	100~1000 r/min
Screen Type	piercing screen
Screen Dimension (L×W)	800×1250 mm
Frequency	300(80~400) times/min
Amplitude	30 mm
Layers and number	4 layers,7 pieces
