• Model NO.：6YL-130A
• Shaft Speed：30-40rpm
• Hot Press and Cold Press：Both Available
• Delivery Time：5-7days
• Power：18.5kw
• Capacity：400-450KG,H
• Advantage：High strength durable reducer
• Transport Package：Wooden Box
• Specification：CE
• Trademark：VIC
• Origin：China
• HS Code：84792000
• Production Capacity：5000PCS,Year

Basic Info.

Model NO. 6YL-130A Shaft Speed 30-40rpm Hot Press and Cold Press Both Available Delivery Time 5-7days Power 18.5kw Capacity 400-450KG/H Advantage High strength durable reducer Transport Package Wooden Box Specification CE Trademark VIC Origin China HS Code 84792000 Production Capacity 5000PCS/Year

Product Description

                                                               New developed strong reducer coconut oil expeller oil pressers

Application:
This oil pressers are advanced oil expeller which is widely used in pressing oil from vegetable oil seeds, such as soybean, peanut, sunflower seeds, cotton seeds, sesame, tea seeds, copra, jatropha seeds, castor seed, coconut etc. And the product oil is for both edible and biodiesel fuel purpose.
The oil expeller screw oil press machine has advantage of high efficiency, low consumption, simple operating, stable function, easy maintenance, high productivity and high oil output.
This 6YL-A series of oil presses has been improved in many places, especially the reducer gear has been upgraded.
Main date about the oil press machine
Model: 6YL-130A oil expeller screw oil pressers
Capacity: 400-450kg/h for oil seeds
Power:15-18.5kw(380V/50Hz/3p)
Residue oil in cake: Less than 8%
Size: 2180X610X1480mm
Weight: 850KG

Model	Capacity(kg/h)	Power(kw)	Machine Size(mm)	Weight(kg)
6YL-95A	200kg /h	7.5-11kw	2155x580x1250	590kg
6YL-120A	300kg /h	11-15kw	2150x610x1300	750kg
6YL-130A	450kg /h	15-18.5kw	2180x610x1480	850kg
6YL-160A	550kg /h	18.5-22kw	2180x610x1480	1050kg
6YL-200	1500kg /h	30-45kw	2560X850x1900	3500kg

More pictures

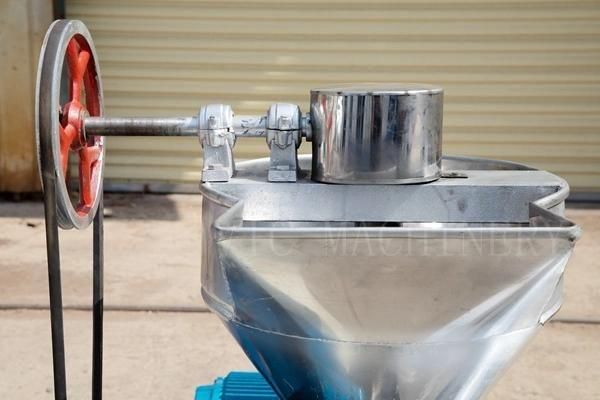

Forced feeding system with stirring function keeps feeding uniform and continuous

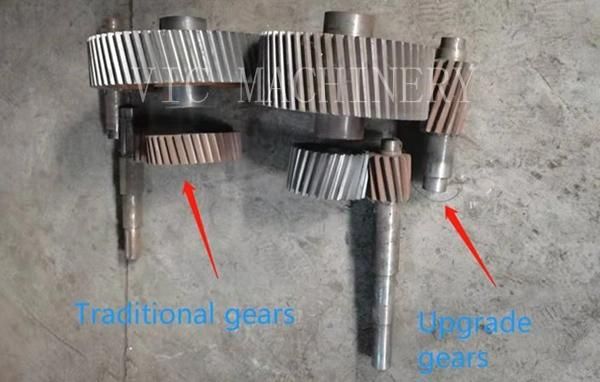

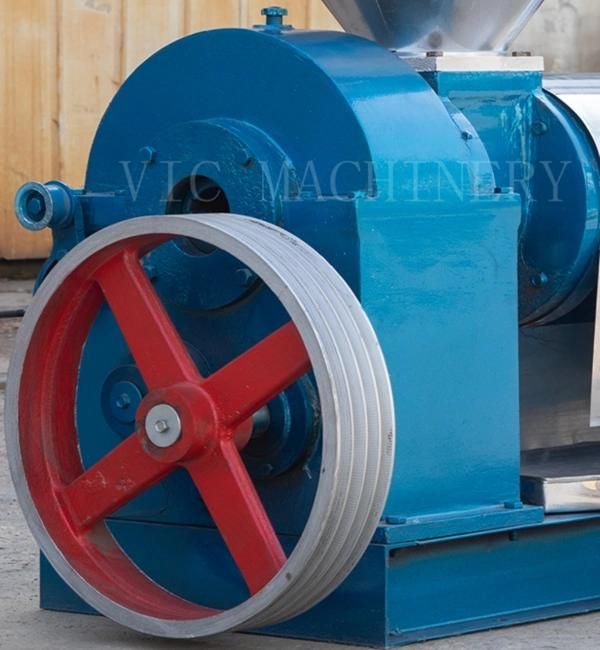

The wide tooth surface gear reducer transmits the torque more smoothly, and the life span
is 1.5 times that of the traditional gears.

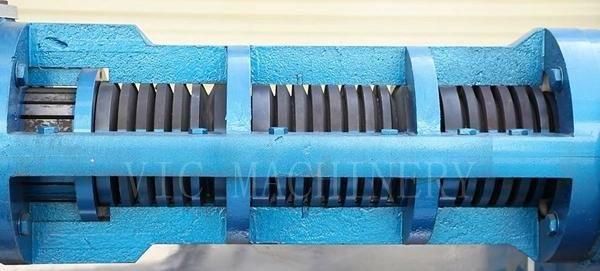

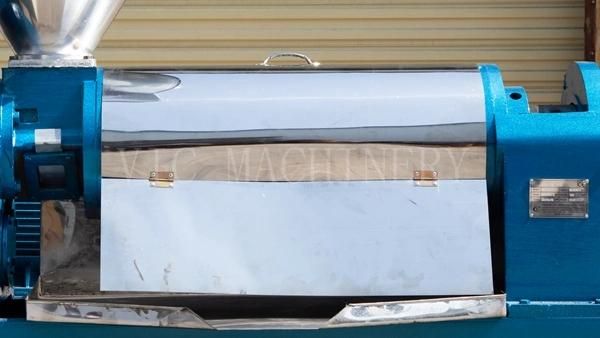

Optimized design of bar and round press system for higher pressure and more oil output

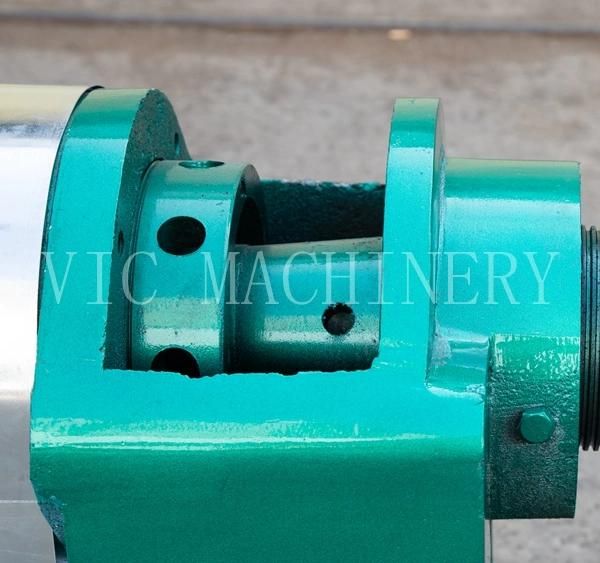

The cake outlet with adjustable thickness of oil cake is made of ductile iron, which is not
easy to be damaged(The material used by other manufacturers is gray cast iron)

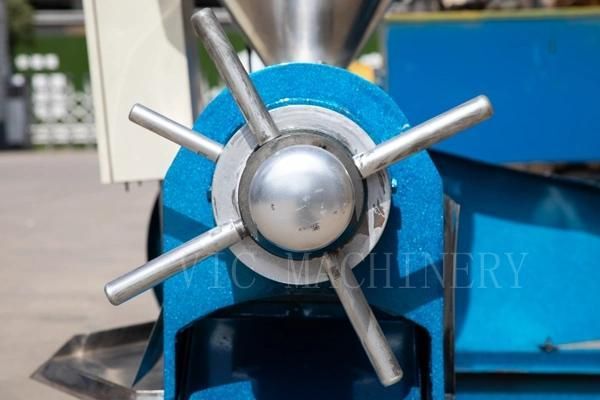

Adjustment system with handle for easy and labor-saving use

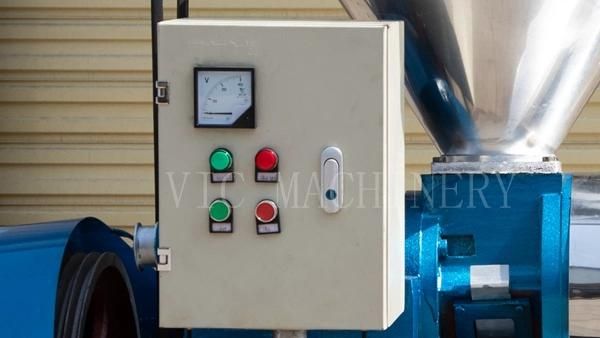

Safe and convenient control system with voltage indication and indicator light

Stainless steel feed hopper,cover and oil pan are clean and hygienic for easy cleaning

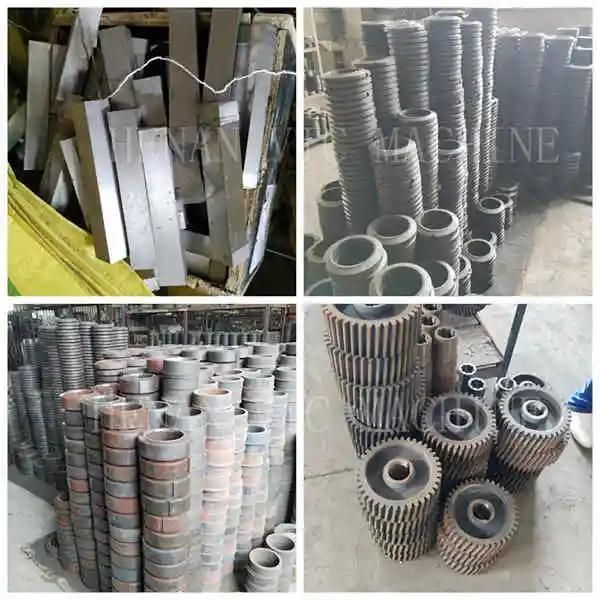

Parts

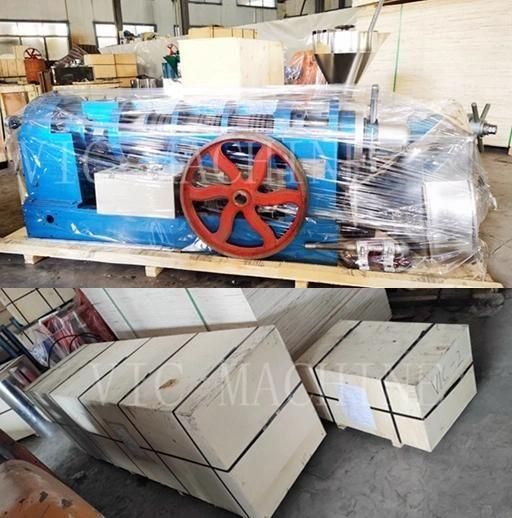

Package picture

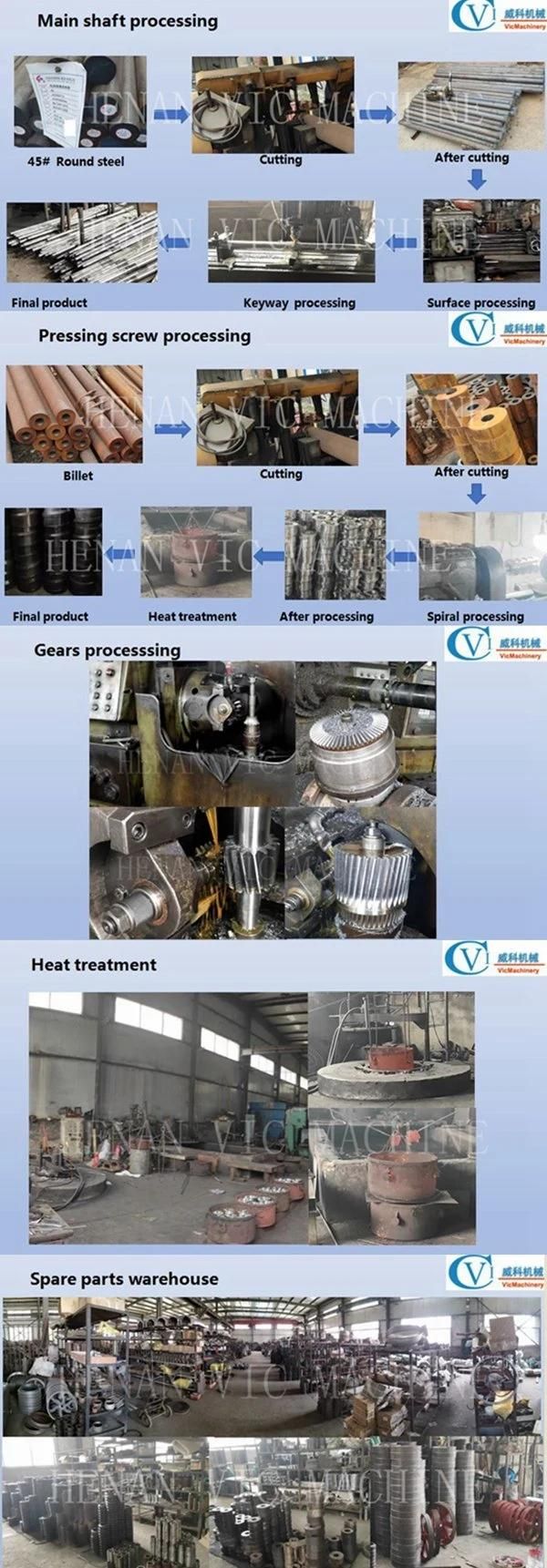

Our Factory
