• Model NO.：GCBK
• Condition：New
• Customized：Non-Customized
• Application：Oybean, Peanut, Sunflowers
• Model：Gcbk
• Transport Package：in Wooden Case
• Specification：EEC, SGS, OECD
• Trademark：FOTMA
• Origin：China
• HS Code：5911400000
• Production Capacity：2000 Sets,Year

Basic Info.

Model NO. GCBK Condition New Customized Non-Customized Application Oybean, Peanut, Sunflowers Model Gcbk Transport Package in Wooden Case Specification EEC, SGS, OECD Trademark FOTMA Origin China HS Code 5911400000 Production Capacity 2000 Sets/Year

Product Description

Oil Seeds Pretreatment Machinery For Seeds Disc Huller

 FOTMA focus on producing oil press for 16 years, the product of which has won several national patents and was certificated by official, the technical of oil press is continuous updating and the quality is reliable. With excellent production technology and high-quality after-sales service, the market share is steadily rising. Through gather tens of thousands of consumer's successful pressing experience and management model, we can provide you with customized business guidance program, installation and commissioning services, on-site training operations, impart press technology, equipment one year warranty, life-long technical support.

1. Product description
After cleaning, oilseeds such as sunflower seeds are conveyed to the seed dehulling equipment to separate the kernels. The purpose of oil seeds shelling and peeling is to improve the oil rate and the quality of the extracted crude oil, improve the protein content of the oil cake and reduce the cellulose content, improve the use of oil cake value, reduce the wear and tear on the equipment, increase the effective production of equipment, facilitate the follow-up of the process and the comprehensive utilization of leather shell. The current oil seeds that need to be peeled are soybeans, peanuts, rapeseed, sesame seeds and so on.

FOTMA brand GCBK series seed dehulling machine is the best selling model among our seed hulling machines / disc hullers, which are usually used in large oil processing plant. Through the addition of a stirring wheel between the fixed and moving discs, the working area is increased. This greatly increases the machine's efficiency and capacity. Despite these productivity-boosting features, our disc huller's power consumption is only 7.4 kW/t of oil materials.

2. Features
Hulling Ratio achieve to 99% but no whole seed left for second dehulling.
Short lint is moved when decorticating. Within the complete soybean decorticating line, we match the Fans & Cyclone which often can collect the short lint, therefore it could be much easier to broken up the actual Hulls & Popcorn kernels and raise the proteins content in cakes & meal. An additional benefit of our own Seed Hulling Machine could be maintain your work shop in good clean working condition.

3.Technical parameters

Model	Capacity(t/d)	Power(kw)	Weight(kg)	Dimension(mm)
GCBK71	35	18.5	1100	1820*940*1382
GCBK91	50-60	30	1700	2160*1200*1630
GCBK127	100-170	37-45	2600	2400*1620*1980

GCBK series seed hulling machine is one of the widely used seed hulling machines in the process of oilseed hulling. It is used not only in the de-hulling of oilseed shells like cottonseed and peanuts, but also in crushing oilseeds such as soybeans and even the oil cake.

Welcome to get in touch with us anytime you find interest in our seed hulling machine or complete oil processing plant!

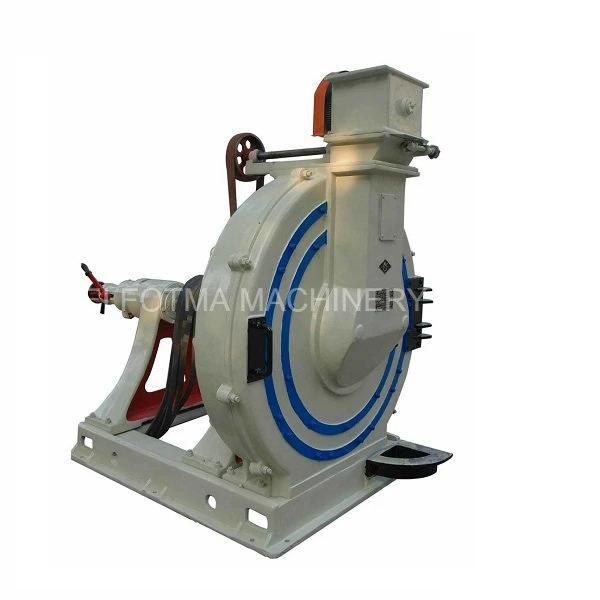

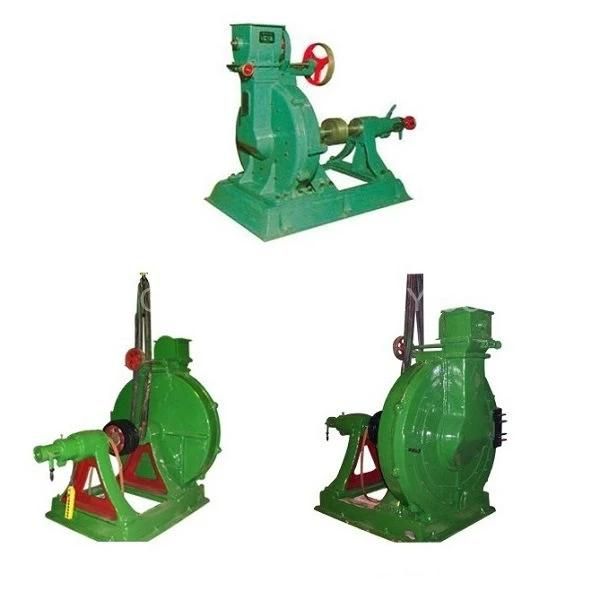

4. Photos




5. Packing and Shipping:
(1) Packing: Usually in the wooden cases for main machines and carton boxes for small parts.

(2) Delivery:
Usually in 5-45 days after payment, it depends on the model and order quantity. For small packages, we can choose delivery by air(Normal air or courier: DHL, TNT, UPS, FedEx, etc.). For large machines, we can arrange to ship by water( LCL or FCL, bulk cargo or RO/RO), train or truck.

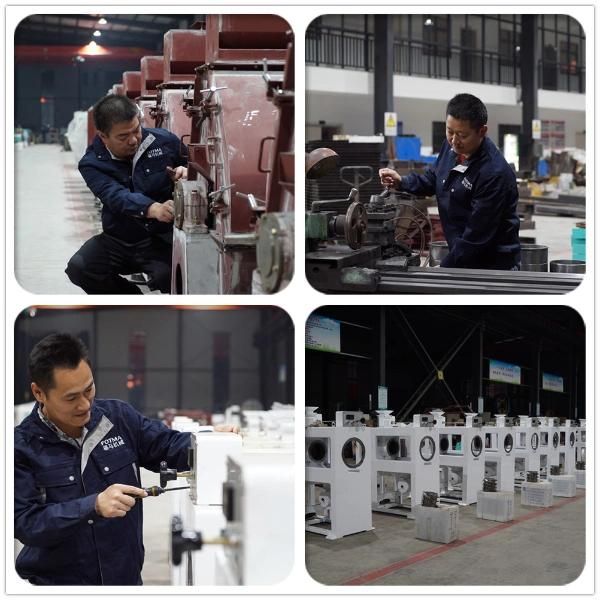

6.Our Factory

7. Certificates

8. Customer Visiting

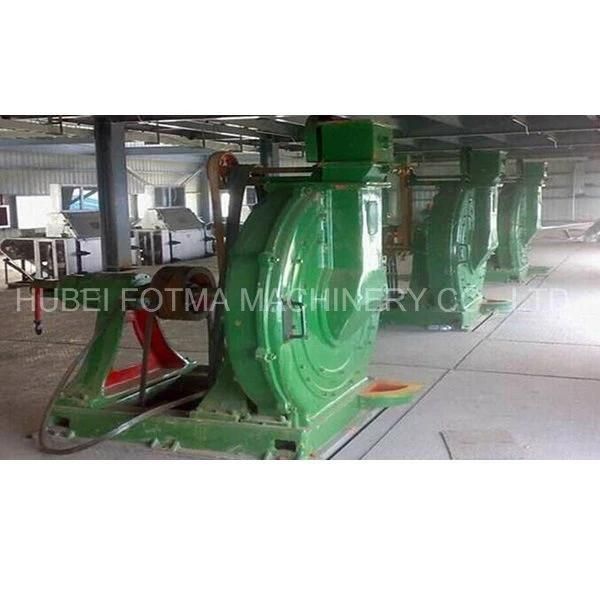

9. Installation site:


10.Why choose FOTMA?1.For more than a decade, with its excellent production technology and high-quality after-sales service, it has always been recognized and loved by users.2.Obtained many official promotion appraisals and won many national patents. The technology is continuously updated, the products are mature and reliable, and the technology always leads. 3.High oil output, clean and pure oil, good market efficiency. Original automation, intelligent technology, automatic electronic temperature control function, energy saving and high efficiency. 4.Original automation, intelligent technology, automatic electronic temperature control function, energy saving and high efficiency.5.FOTMA can provide a full set of technical support and perfect after-sales service, which is the first choice of urban and rural oil mills and small and medium-sized refineries.
11. Our Service:
---One year quality warranty for the machine and spare parts
--- Oversea engineers service for installation
--- Whole-life after-sales service and free consultation
---Customized requirements available
---Technician guide at the site.
---24Hr online service

12. FAQ
Q1:- What's your advantage? Why we choose you?
A:- 1. Above 20 years' experience of designing, manufacturing and exporting of the grain and oil processing machinery. We have the most professional techniques and team and more advantage in price.
      2. Over than 15-Years' Alibaba Gold Member. "Integrity, Quality, Commitment, Innovation" is our values.

Q2:- Can we mix different models and accessories together?
A:- You may mix different products or models in a single container but we would need to advise you on optimum loading and final capacity of your shipment.

Q3:- How do I visit you and the factory?
A:- You are welcomed to visit us and our factory at your convenience. We can pick you up at airport or train station and bring you to our factory . Let us know your schedule in details so we can arrange everything for you. Normally you need 3 days for an adequate visit to our factory.

Q4:- How can I become a dealer in my area?
A:- If you are qualified, you may apply for a dealership. We choose reliable partners for a long term business cooperation.

Q5:- Can I get an exclusive right for your machines in some territories?
A:- It depends on which country you are in. We have exclusive agents at several countries at this time. Most countries you can sell freely.

Q6:- After payment, how long will it take to get the machines we order?
A:- Normally 30-90 days after your payment (15-45 days for manufacturing, 15 - 45 days for delivery and shipment on sea)

13. Contact us
Ms. Danni Feng
Hubei FOTMA Machinery Co., Ltd
Add: No. 52 Guanggu Avenue, New High-tech Development Zone, Wuhan city, Hubei Province, P. R. China.
Web: fotmaricemill.en.made-in-china.com
