Animal Husbandry Equipment Manure Cleaning System/Poultry Manure Scraper
Qingdao Farm Lyric Agri-tech Co., Ltd.- After-sales Service：Lifelong Maintenance
- Type：Manure Cleaning System
- Usage：Excrement Cleaning Machine
- Application：Chicken
- Power Source：Electric
- Heating and Ventilation Equipment Type：Poultry Farming Equipment
Base Info
- Model NO.：Poultry Manure Scraper
- Epidemic Prevention Equipment：Mobile Vaccination Car
- Blade Type：Straight Teeth
- Computerized：Computerized
- Certification：GMP, ISO9001:2008, CE
- Condition：New
- Warranty：3year
- Using for：Poultry Farming
- Power：2.2kw, 3kw
- Working Speed：9-10m,Min
- Rope Material：High Strength Chemical Fiber
- Rope Diameter：16mm, 18mm, 20mm etc.
- Width of Scraper：Customizable
- Maximum Drive Distance：150m
- Drive Scraper Quantity：2 or 3
- Corner Material：Cast Iron
- Scraper：Hot Galvanized Steel Sheet
- Transport Package：Carton Box Package by Sea
- Specification：custom
- Trademark：FARM LYRIC
- Origin：China Qingdao
- HS Code：84369100
- Production Capacity：1000PCS,Weeks
Description
2. The scraper is molded by a high-accuracy numerical control machine, never deformation.
3. Special thickening scraper, ensuring long life of the machine
4. Special transmission chains abrasion resistance, corrosion-resistant, long-time life
5. Easy to operate, install and maintain
6. Removal the manure cleanly and efficiently
1, the working principle of Poultry Manure Scraper;
The output shaft of the reducer transmits the power to the main driving wheel through a chain or a V-belt. The friction force of the driving wheel and the traction rope after tensioning is used for traction, which drives the scraper to move back and forth. When the scraper is working, the crescent of the scraper slides The rubbed floor automatically falls down, and automatically lifts when returning to complete the manure removal operation.
2, Use, maintenance, and maintenance of Poultry Manure Scraper;
1. Before use, add 30# oil to the middle of the oil window for the cycloid reducer, add 1.2-1.5 liters of 50# oil for the turbo reducer, and change the oil every three months.
2. The manure board is cleaned 2-3 times a day, and the manure ditch is too long to increase the number of manure removal.
3. During normal operation, check the lubricating oil once a week, add it when it is insufficient, and drip lubricating oil into the transmission chain once a week.
4. Check the tightness of the chain every month. The middle of the chain should sag by 3-5 mm. After loosening the tightening bolts and adjusting, tighten the bolts and jack wires.
5. Check the manure scraper every week, and clean the manure accumulated on the manure in time.

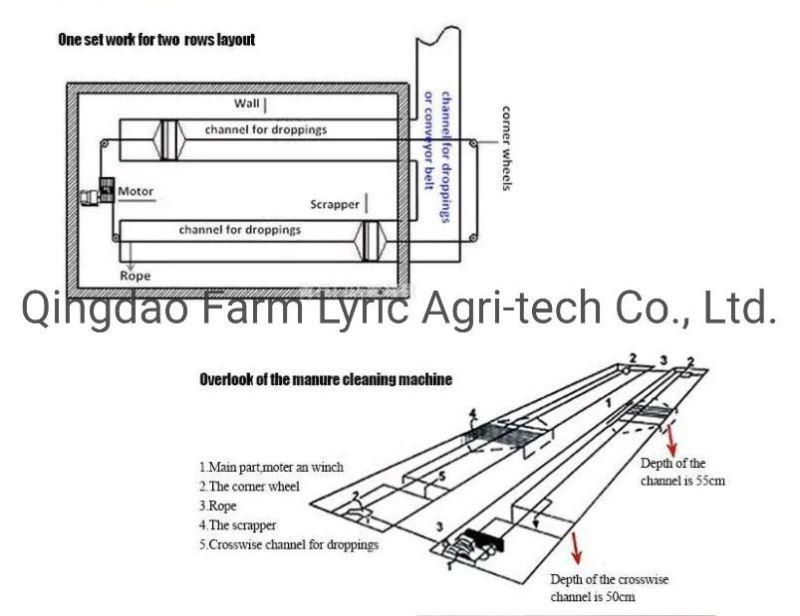

Layout analysis chart

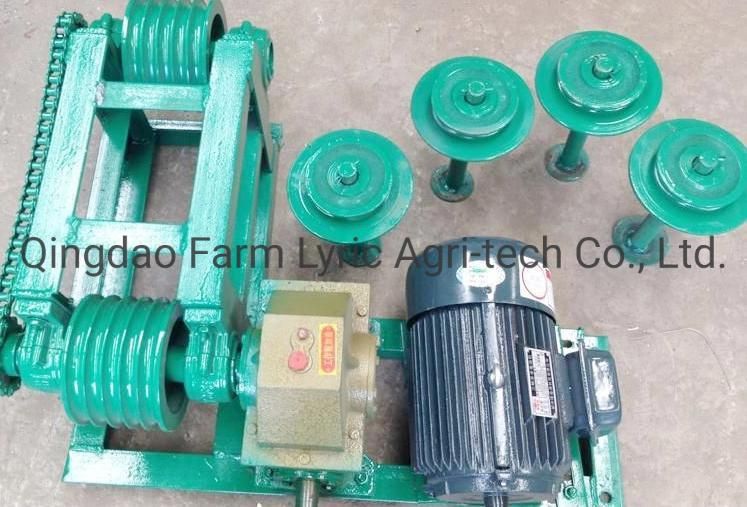

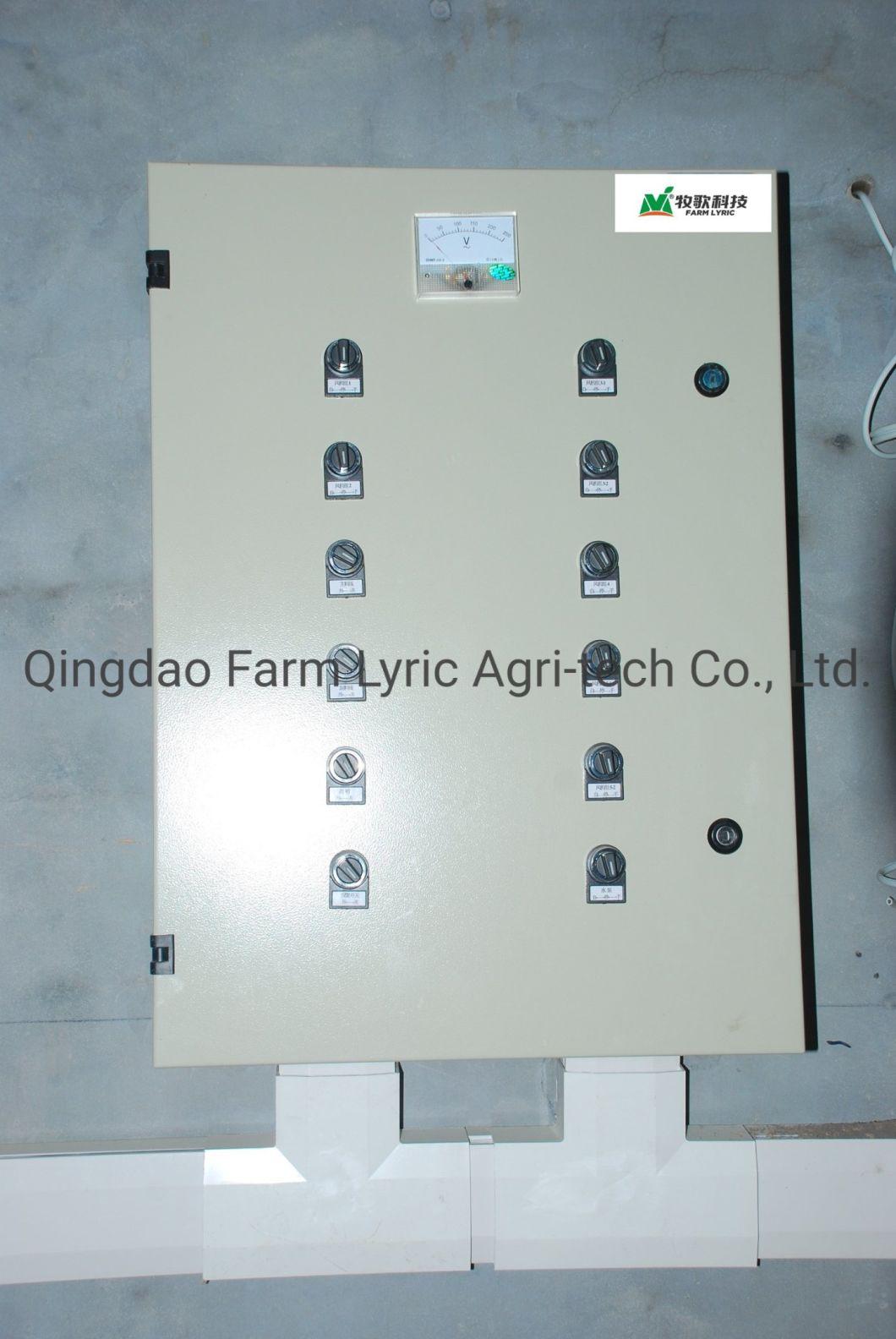

Control Box Electric Motor:1. Using The Advanced international cycloid reducer is to ensure the
output drive radio of rationality;
2. Both motor and reducer has the advantage of Small Volume, Simple
Operation;
3. 1.5 KW & 3 KW, 220 V/ 380V Can be choose;

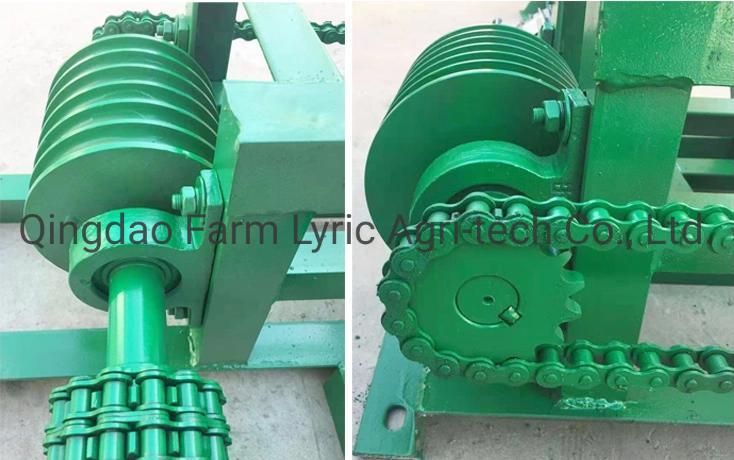

Transmission ChianSpecial Transmission chain is high wear resistance, corrosion resistance, and long service life.Scraper
1. Special thick scraper can make sure the long life of the dung
cleaning machine.
2. Scraper is made by high-precision CNC production molding,
not deformation.
3. The guild wheels of the scraper ensure the system runs smoothly.
Round Corner PulleyHigh-Quality Corner Pulley Make the Scraper Working Smoothly.

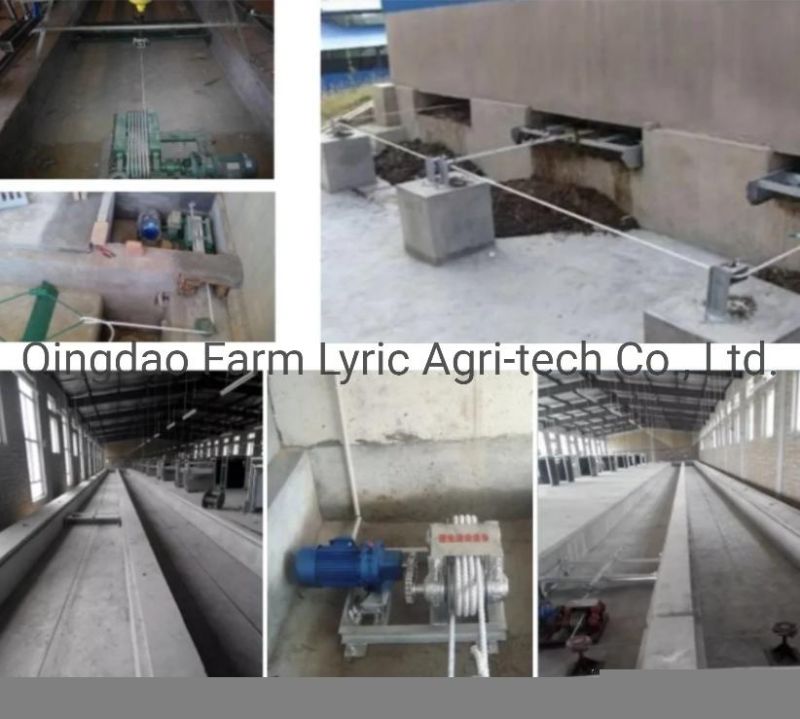

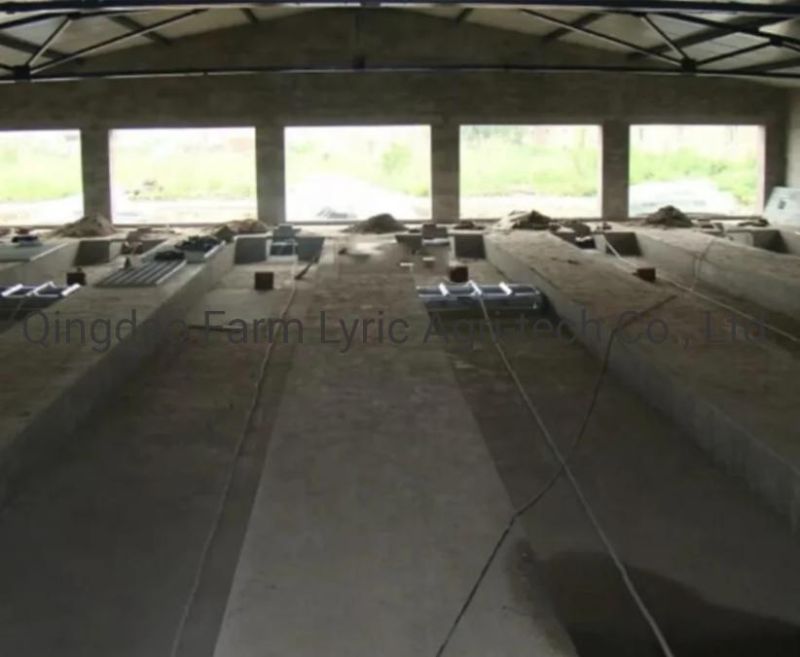

PROJECT SHOWS:
