• Model NO.：3WPQ-2000
• Tank Capacity：2000L
• Pump：Diaphragm Pump
• Pump Pressure：20-45 Kgf , Cm²
• Pump Flow：360L , Min
• Transport Package：Standard Package for Export
• Specification：3900mm x 3100 mm x 2500 mm
• Trademark：LIXING
• Origin：Heilongjiang
• HS Code：8424820000
• Production Capacity：500

Basic Info.

Model NO. 3WPQ-2000 Tank Capacity 2000L Pump Diaphragm Pump Pump Pressure 20-45 Kgf / Cm² Pump Flow 360L / Min Transport Package Standard Package for Export Specification 3900mm x 3100 mm x 2500 mm Trademark LIXING Origin Heilongjiang HS Code 8424820000 Production Capacity 500

Product Description

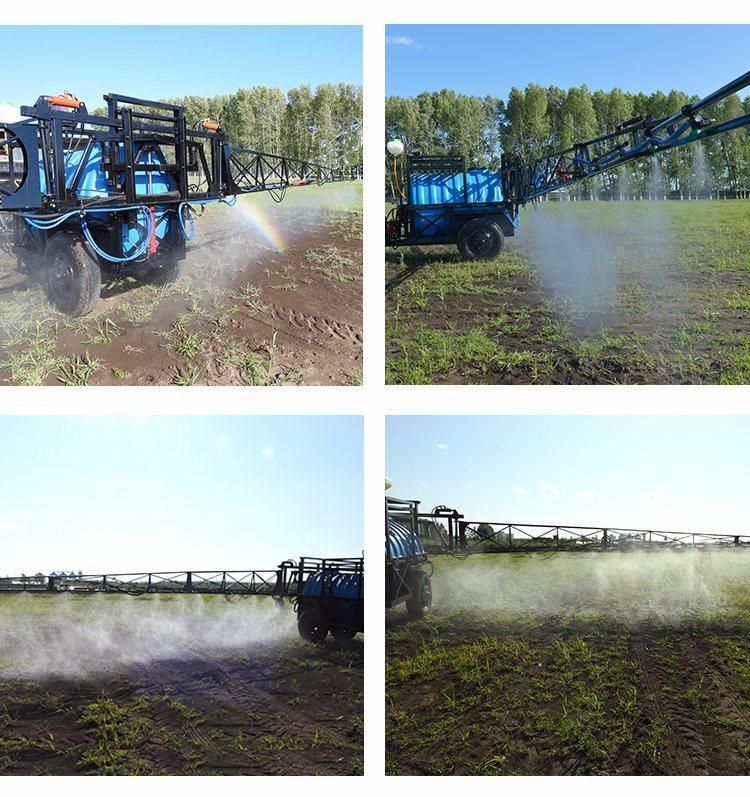

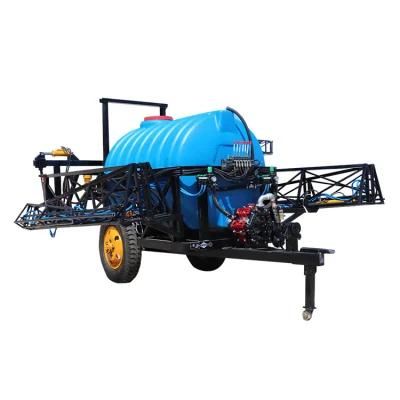

                                3WPQ-2000 type tractor boom sprayer

3WPQ-2000 series of sprayer is suitable for spraying the medicament for the planter of bean, corn, cotton, grain.
Also for lawn,fruiter,vegetable, road side tree. The capacity could be 1000L-3000L, the spraying width could be 10m-25m.
Advantages:
•This kind of boom sprayer is a tractor mounted sprayer.
•Wide working scope,spraying for bean,cotton,corn etc.
•Wide spraying with to be 25m max.and the working angle of this tractor sprayer could be adjusted.
•The capacity of mounted boom sprayer could be adjusted to meet different need from the user.

Model	3WPQ-2000 type tractor sprayer	Pump Type	Diaphragm pump
Power	54HP-200HP	Pump Pressure	20-45 kgf / cm²
Mixing Way	Circulating water mixing	Pump Model	MB6360
Folding Way	Hydraulic folding	Pump Flow	360L / min
Ground clearance	0.5m	Pump Speed	600-800r / min
Wheel Track	1.3-1.4m (adjustable)	Tank Capacity	2000L
Operating Efficiency	13-16 acres / hour	Boom	21m (10m-25m customizable)
3 Filtration System	Tank inlet, pump inlet, nozzle	Spray Height	0.5m
System Work Pressure	0.3-0.5Mpa	Nozzle Model	No.3
Walking Speed	4-20km / h	Spray Angle	110 °
Tire Specifications	7.5-16 (2000 L)	Nozzle Flow	1.2L / min
Overall Dimension	3900 x 3100 x 2500 mm	Water Tank	15L
Weight	1350kg

Q:Are you a factory or trading company?

A:We are a factory.

Q:How does your factory do regarding quality control?

A:Quality is priority. we  always say great importance to quality controlling from the very  beginning to the very end.

Q:Do you have a product accessory?

A:Yes, we have the accessories of the product.

Q:Can you customize the product?

A:We can customize the product.

Q:What's your payment terms?

A:Payment terms is T/T or L/C,We accept all reasonable payment.

Q:How about delivery time of your machine?

A:The delivery time is in 60 working days. It depending your quantity.
