• Model NO.：TTC34
• Turning Radius of Crane：360&Deg
• No. of Swing Cylinder：2PCS
• Max. Open & Area of Wood Grapple：700mm,0.08 M2
• Max. Load of Hydraulic Rotator：1 Ton(10kn)
• Hydraulic Rotator Turning Radius：Unlimited
• Working Pressure：18-22MPa
• Control Valve：7 Sets
• Power Unit：6.5HP Engine
• Weight：260kg
• Max. Load：1500kg
• Total Length：3230mm
• Height：1600mm
• Transport Package：1PC, Iron Pallet
• Specification：TTC34
• Trademark：Rima
• Origin：China
• HS Code：8428909090
• Production Capacity：100PCS,Month

Basic Info.

Model NO. TTC34 Turning Radius of Crane 360&Deg No. of Swing Cylinder 2PCS Max. Open & Area of Wood Grapple 700mm/0.08 M2 Max. Load of Hydraulic Rotator 1 Ton(10kn) Hydraulic Rotator Turning Radius Unlimited Working Pressure 18-22MPa Control Valve 7 Sets Power Unit 6.5HP Engine Weight 260kg Max. Load 1500kg Total Length 3230mm Height 1600mm Transport Package 1PC/ Iron Pallet Specification TTC34 Trademark Rima Origin China HS Code 8428909090 Production Capacity 100PCS/Month

Product Description

Forest Log Trailer With Crane>>Product Description

Versatile timber trailer for ATVs - a powerhouse with hydraulic crane, wheel drive and its own hydraulic system.The 9 hp petrol motor provides the trailer with the power it needs, crane with superior movement pattern and strength. Wheel drive via rollers on the well-treaded tyres, terrain-friendly bogie and good ground clearance.The wheel drive substantially increases accessibility and makes it easier to get around in the forest and past difficult areas. The rig can also be equipped with a hydraulic winch.

>>Technical Data

Model	TTC34
Max reach	3.4m
Lifting capacity(3.4m)	200kg
Lifting capacity(2m)	500kg
Turning radius of crane	360°
No. of swing cylinder	2pcs
Max. open & area of wood grapple	700mm/0.08 m2
Max. load of hydraulic rotator	1 ton(10KN)
Hydraulic rotator turning radius	unlimited
Working pressure	18-22Mpa
Control valve	7 sets
Power Unit	6.5HP engine
Weight	260kg
Max. load	1500kg
Total length	3230mm
Width with wheels	1440mm
Height	1600mm
Height of front plate	1100x700mm
No. of "S"	2sets(Optional 3sets)
Length of loading area	2120-3520mm
Loading area volume	1.6--3m3
Min. ground clearance	200mm
Wheel	Standard 22x11-10 (Optional 25X10-12)
Weight	260kg

>>Features

• 9 hp petrol motor
• Wheel drive via hydraulic rollers between the tyres
• Terrain-friendly bogie
• High ground clearance
• Stable frame makes it easy to pull the trailer

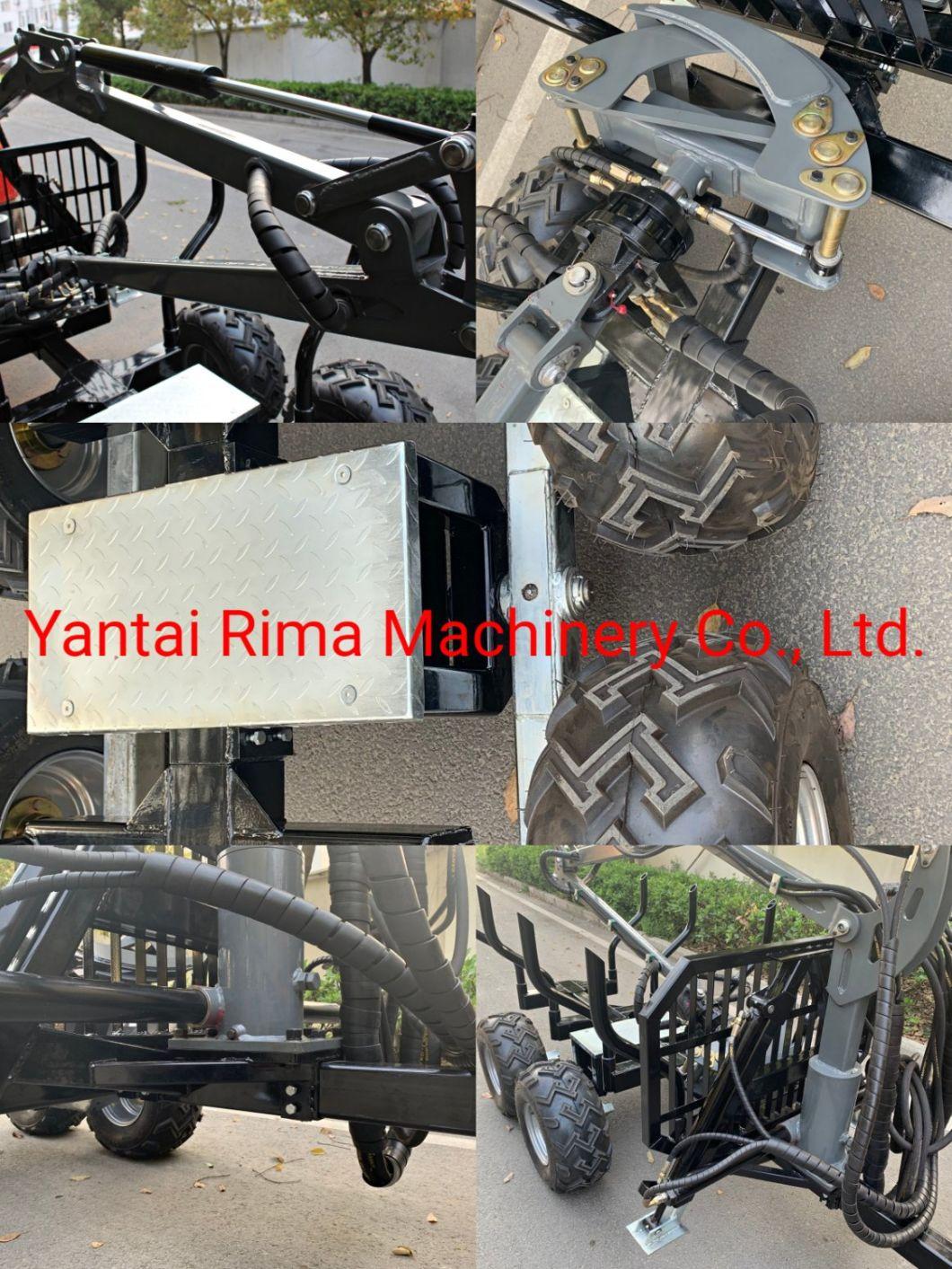

>>Detail imag

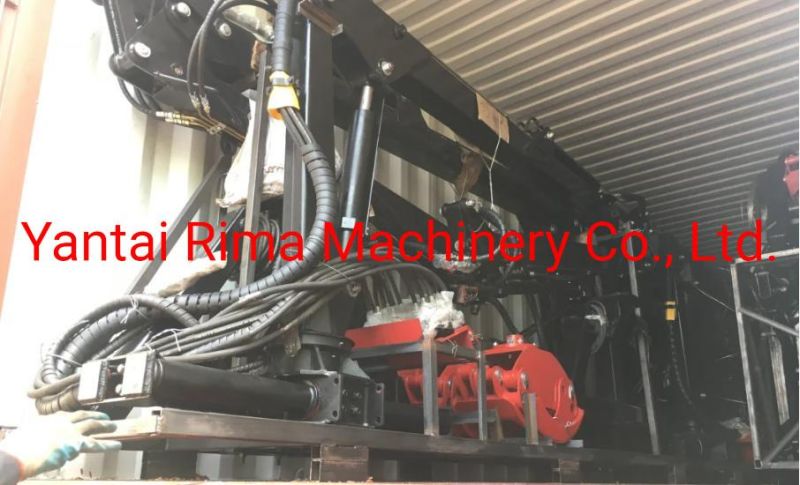

>>Delivery

>>After sale

We will provide new electrical accessiores or parts in warranty during time.(one year warranty period)

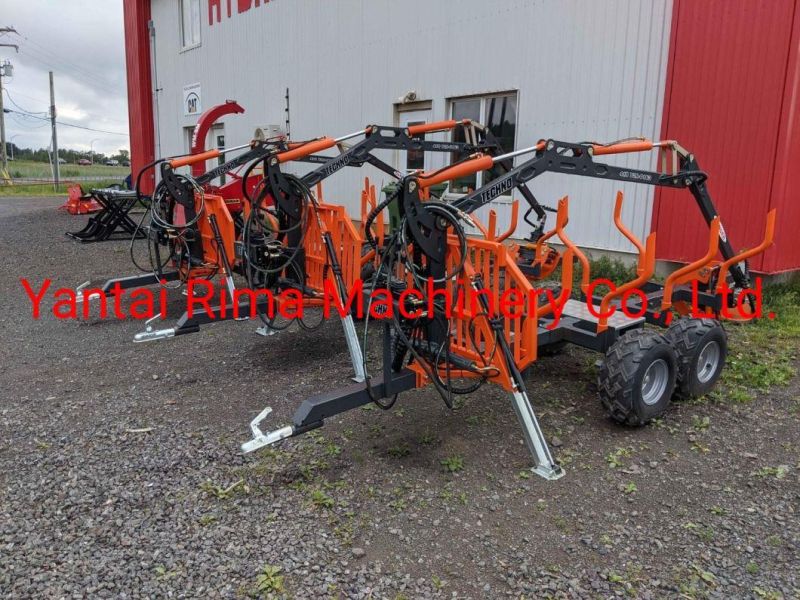

>>Customer Feedback

>>Certificate

FAQ
01 Are you factory or trading company?
A) We are ISO9001 certified factory, mainly manufacture in Forestry & Farm Machinery.
B) Using "Self-produced Self-marketing" business, reducing the cost of intermediate links.

02 What's your company advantages?
A) As the leading manufacturer of forest machines, we have exported to European market for more than ten years, familiar with forest and farm market and can recommend to clients right products.
B) We have various products and can offer all the machines and tools in the forest and farm. You can get all the items you need. Easy and convenient for you.
C) With us your money and your business is safe. We can offer 7-days refund in case of bad quality
D) Coming together is a beginning; keeping together is progress; working together is success.

03 Can we buy one sample?
Yes, we need to add sample fee to the price and will return it back to your after receiving your large order in future.

04 What's your delivery time?
After receiving your payment, we start to produce your order. It usually takes about 15-45 days depending on the products you order.

05 How do you control your quality?
To guarantee high quality and efficient management, we have passed ISO9001 quality management system certificate. All of our products are 100% inspected before shipment. Our whole manufacturing processes are under a very serious and strict system in our company.

06 What's your product warranty?
The warranty time of the machine is one year. During this period, we will send you the replacement for the broken part(not man made).
To meet the every demand of customer is our goal. We are standing by for any question of customer. We try to make our service fast, efficient and satisfied.

07 What's your company mainly exporting market?
We mainly export to European, North American, Australia, English and Southeast Asia Market. Because of good quality and service, we have establish good and long business relations with many clients. Welcome clients from all over the world to visit our factor
