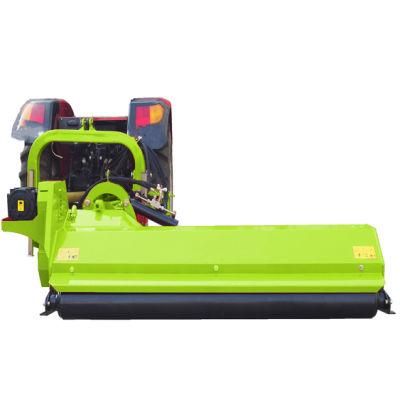

CE Approved Tractor Mounted Verge Side Flail Mower for Tractor
Changzhou Qianyi Machinery Technology Co., Ltd.- After-sales Service：Within One Hour
- Warranty：One Year
- Certification：CE, ISO 9001:2000
- Application：Paddy Field, Fruit Tree, Lawn, Farmland
- Cutting Height：10-80mm
- Cutting Width：900mm
Base Info
- Model NO.：AGF200
- Working Way：Rotary
- Type：Tractor
- Tilt-up Angle：90°
- Tilt-Down Angle：53°
- Logo：OEM
- Color：Customsized
- Blade：1200g Hammer
- Horizontal Extending Distance：2345mm
- Pto Turning Speed：540r,Min
- Transmission System：Pto Drive
- Transport Package：Steel Crate or Wood Package
- Trademark：Qianyi
- Origin：China
- HS Code：84331900
- Production Capacity：1000 Sets,Year
Description
80-110hp
Product Description:
Our AGF verge flail mowers are ideal for ditches, embankments, hedges, trees, debris, vines, and other vegetation. This flail mower with its hydraulic swivel arm is designed to fit tractors with 50HP to 120HP engines and connects to your CAT II 3-point hitch. Performance features: Our AGF verge flail mower series is equipped with a high-performance gearbox that maximizes the performance of the mower when matched to the proper tractor size. The hydraulic swivel arms allow for maximum flexibility and a mowing range angle from -55 degrees to +90 degrees. The hydraulic swivel arm saves maneuvering in narrow corners when used as a regular flail mower. Your tractor needs 2 double acting hydraulic control circuits in order to fully operate the swivel arms. Safety features: This kind of mower has 14-18 large forged steel galvanized high-performance hammers. Each hammer weighs 1,200 grams (2.45 pounds U.S.), ensuring a perfect mowing result on grass & undergrowth, as well as bushes & hedges. The mowing height is adjusted at the heavy self-cleaning rear roller to prevent the mower from cutting into the ground on bumpy surfaces. It adjusts both at the rear roller and the side skids.
Our advantages:
A whole complete set of production equipment lead to short lead time and better prices of machine.
Guarantee one year warranty of all our products.
Produce machines according to any requirements from our customers.
New machines will be developed every year.
Every model of our machine will be tested before the delivery to the port.
If you want to visit our factory, our boss will give you a best reception.
Beautiful gifts will be provided for all of our customers before every year's Christmas.
Work shop and office:

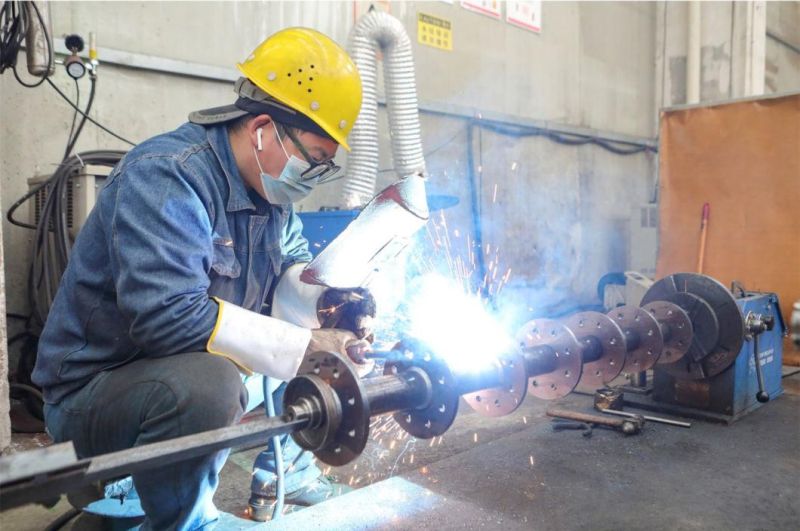

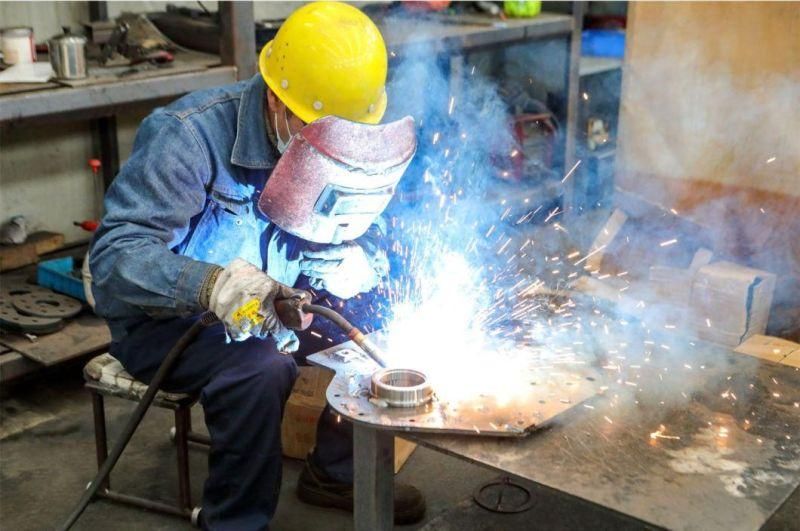

Welding:

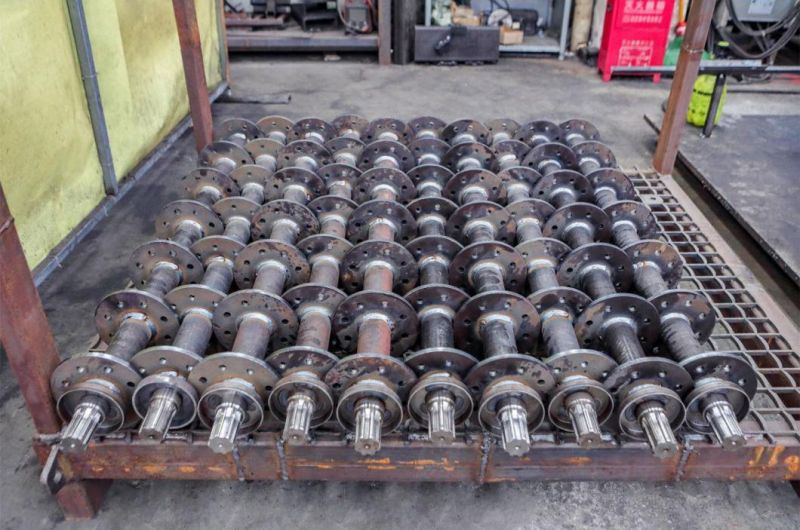

Blade shaft:
Laser equipment:
Office:
Rest place:
Assembly:

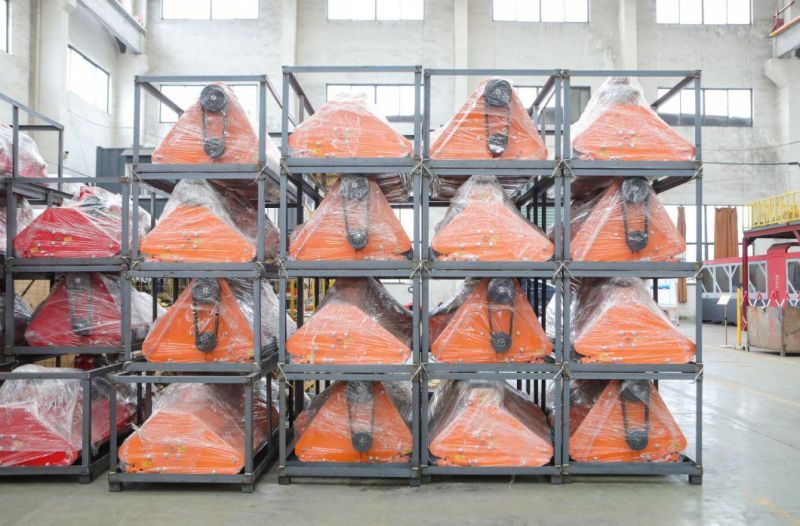

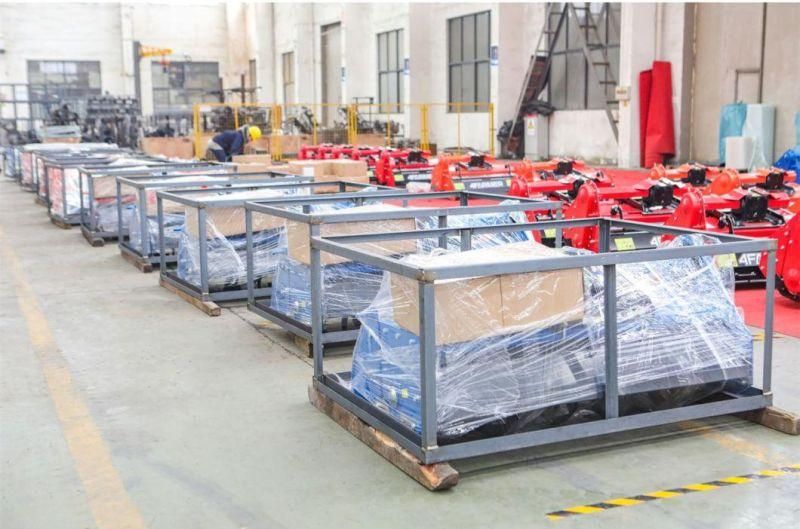

Finished machines:

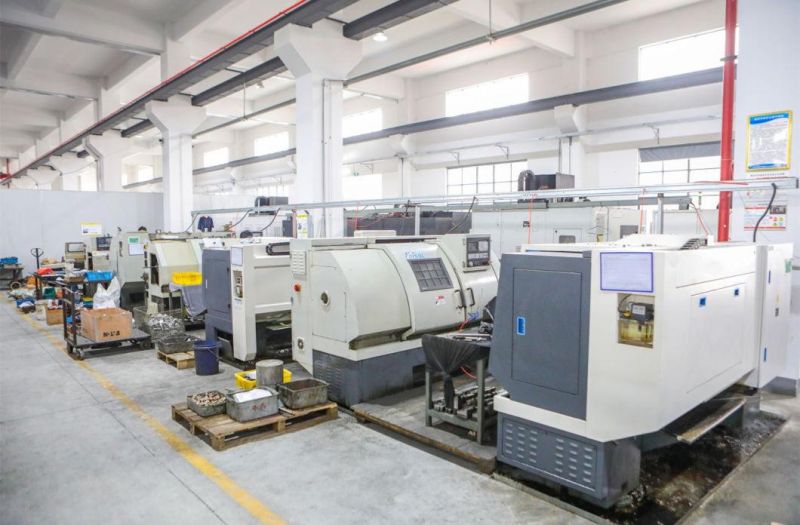

CNC:
