• Model NO.：HM
• Pellet Mill Type：Screw Granulator
• Bulking Machine Type：Twin Screw Bulking Machine
• Expanding Method：Dry Expansion
• Condition：New
• Applicable Materials Shape：Powder
• Warranty：12 Months
• Material of Screw：38CrMoAl
• Motor Brand：Siemens
• Inverter Brand：Delta
• Barrel：Alloy
• Material of Machine：Stainless Steel
• Material of Products：Corn Flour
• After Sale Service：One Year Free Service
• Capacity：1500 Kg,H
• Voltage：220V,380V
• Certificates：CE,SGS
• Transport Package：Wooden Package
• Specification：22000x1200x2200mm
• Trademark：Himax
• Origin：Jinan China
• HS Code：8438800000
• Production Capacity：10 PCS, Month

Basic Info.

Model NO. HM Pellet Mill Type Screw Granulator Bulking Machine Type Twin Screw Bulking Machine Expanding Method Dry Expansion Condition New Applicable Materials Shape Powder Warranty 12 Months Material of Screw 38CrMoAl Motor Brand Siemens Inverter Brand Delta Barrel Alloy Material of Machine Stainless Steel Material of Products Corn Flour After Sale Service One Year Free Service Capacity 1500 Kg/H Voltage 220V/380V Certificates CE/SGS Transport Package Wooden Package Specification 22000x1200x2200mm Trademark Himax Origin Jinan China HS Code 8438800000 Production Capacity 10 PCS/ Month

Product Description

Jinan himax automatic fish feed food making processing line plant


1.Description
Fully Automatic big capacity twin screw Fish Feed Making Extruder can be used to producing floating fish feed and sinking fish feed. The floating fish feed pellet machine can make kinds of feed, such as food fish, catfish, shrimps, crab, etc. the fish pellet made by the machine can float on water more than 24 hours. Gelatinization degree can reach 90%, enhance the output of fodders, it is suitable for making floating feed, pet food, fish fodder. The diameter of particle is Φ0.6-16mm. Promising fodder output evenly and continuously.

a. Raw materials adopts wheat flour, rice flour, corn flour, soybean flour, fish meal, bone meal etc as raw materials.

b. Products this line can be used to produce fish pellets, the pellets size can be from 1.0mm to 12.0mm by adjusting the dies from extruder; meanwhile it can produce dog food, cat food.


Model	Installed Power	Output	Size
HM65	60kw	150-180 kg/h	28000*1200*2200mm
HM70	90kw	200-260 kg/h	32000*1500*2200mm
HM85	100kw	300-400 kg/h	35000*1500*3500mm
HM90	96kw	800-1000 kg/h	30000*3500*2300mm
HM95	180kw	1500-2000 kg/h	45000*2500*3500mm

2.Flow chart of Fully Automatic big capacity twin screw Fish Feed Making Extruder:

Raw material---Mixing---Screw Conveying---Extruding---Air Conveying---Drying---Air Conveying---Flavoring---Cooling




3.Main Features for Pet Food Dog Cat Birds Animal Feed Production Line

1. Free consultation service before, during, and after sales;
2. Free project planning and design services;
3. Free debugging of equipment until everything is functional;
4. Free management of equipments' long distance shipping;
5. Free training of equipment maintenance and operating personally;
6. Free new production techniques and formulas;
7. Provide 1 year complete warrantee and lifetime maintenance service;

4.Samples:

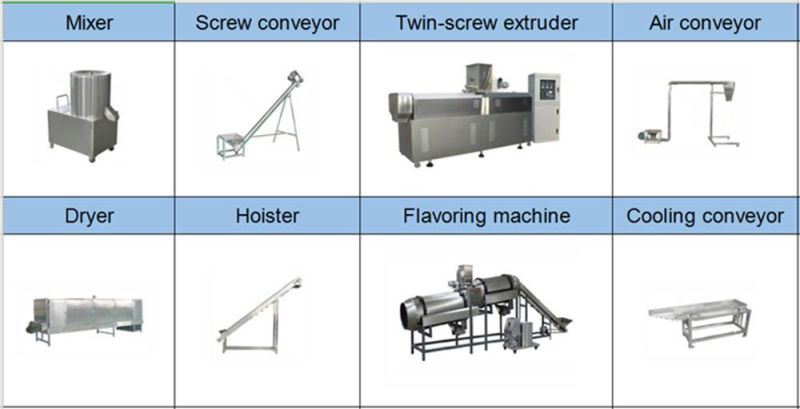

5.Details Images:



6.Our Service:


Before sale services for Pet Food Dog Cat Birds Animal Feed Production Line
a.Provide the free consultation of the equipment
b.Provide the standard device and the flow chart
c. According to the clients' special requirement, offering the reasonable plan and free design helping to select the equipment.

Services during the sales for Pet Food Dog Cat Birds Animal Feed Production Line
a.Help client design the factory and offering professional advice, free engineering drawing for the factory layout.
b.Welcome to visit our factory .
c.Inspect the machine before leaving the factory.

After sale services for Pet Food Dog Cat Birds Animal Feed Production Line
a. Oversea install and debug the equipment.
b. Train the first-line operator.
c. Provide the basic formula
d. Operation/ Service/ Maintenance Manual: Provided In English.
7.Certificates:

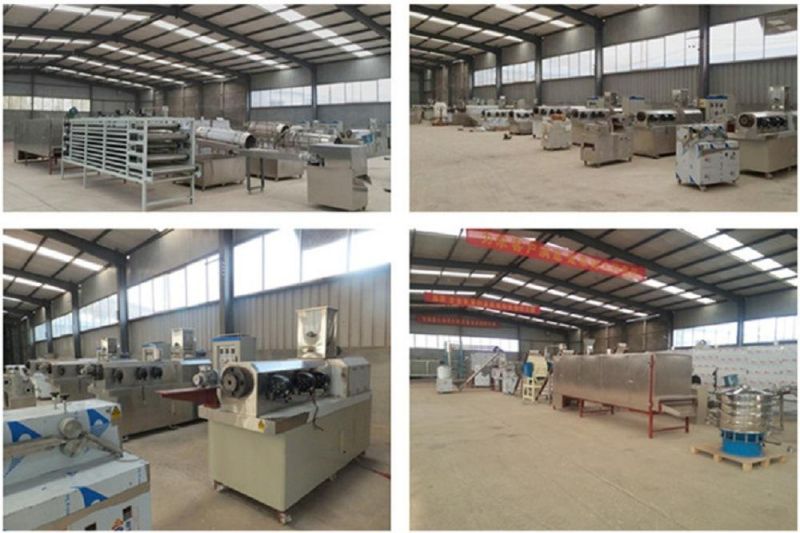

8.Our Company:

Jinan Himax Machinery Co; Ltd. is a professional supplier of food processing machines.

Our company's Motto is:  "Technology Makes Easy". We offer to cooperate with our customers for mutual and beneficial development.

Our main products line include food extrusion machine, soya meal/meat processing machines, industrial micro wave oven,  packaging machines, rice cake machine etc...

Most importantly, we also provide formulas, technology supports, machine inspection service, etc.

9.FAQ:

a.What's your payment terms?

Our payment terms is 30% T/T as down payment, 70% by irrevocable L/C at sight or T/T before delivering

b. What's your Guarantee?

We provide 1 year complete Guarantee and life-time maintenance service

c. How about the installation?

We will dispatch our engineers to your factory to guide you installation and commissioning work and training your operator.
