• Model NO.：D20L-6
• Power Supply：Electric
• Technics：Assembly
• Material：Aviation Carbon Fiber and Aviation Aluminum
• Type：Sprayer Drone
• Sprayer Type：Pump
• Usage：Agriculture
• Applicable Industry：Farms,Home Use,Epidemic Prevention
• Feature：Anti-Fall
• Production Material：Aviation Carbon Fiber and Aviation Aluminum
• Production Folding Size：2510mm*2510mm*590mm
• Max Pesticide Load：25kg
• Aircraft Medicine Box Capacity：22L
• Flight Radius：Less Than 5000m
• Max Takeoff Weight：45kg
• Aircraft Weight：14-16kg
• Flight Attitude：Less Than 30m
• Flight Duration：13-33minutes
• Condition：New
• Warranty Time：12 Months
• Transport Package：Professional Package Box
• Specification：1 CBM
• Trademark：UNID
• Origin：China
• HS Code：8802200090
• Production Capacity：10000 Unit

Basic Info.

Model NO. D20L-6 Power Supply Electric Technics Assembly Material Aviation Carbon Fiber and Aviation Aluminum Type Sprayer Drone Sprayer Type Pump Usage Agriculture Applicable Industry Farms,Home Use,Epidemic Prevention Feature Anti-Fall Production Material Aviation Carbon Fiber and Aviation Aluminum Production Folding Size 2510mm*2510mm*590mm Max Pesticide Load 25kg Aircraft Medicine Box Capacity 22L Flight Radius Less Than 5000m Max Takeoff Weight 45kg Aircraft Weight 14-16kg Flight Attitude Less Than 30m Flight Duration 13-33minutes Condition New Warranty Time 12 Months Transport Package Professional Package Box Specification 1 CBM Trademark UNID Origin China HS Code 8802200090 Production Capacity 10000 Unit

Product Description

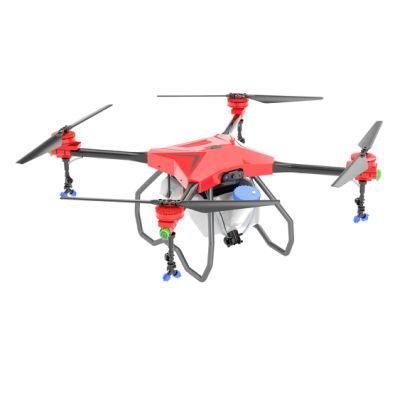

Professional 4.0 thick carbon fiber arm drone UAV crop sprayer

- OEM  & ODM Service -
6 axis agricultural plant protection machine With four-axis power redundancy and a horizontal folding design, it can greatly enhance the transportation space in the operation. Equipped with dual GPS modules, the operation flight safety is double guaranteed, and the redundancy of the heading positioning control is realized, ensuring safe and stable flight.Pay attention to the water at the battery and battery interface, to prevent the danger caused by short circuit during use. (Be careful when placing the battery)

Model	D20L-6
Product material	Aviation carbon fiber + aviation aluminum
Product expansion size	2510mm*2510mm*590mm
Product folding size	660mm*620mm*1310mm
Packaging size	1420mm*640mm*720mm
Maximum takeoff weight	45KG
Aircraft weight	14-16KG
Pesticide Barrel	20L~22L
Flight altitude	≤30 meters
Fly time(unloaded)	20~25 minutes
Fly time(loaded)	10~13 minutes when fully loaded
Flight speed	1-10 m / sec
Structure Life Span	≥10 years
Spray width	6-8 meters
Hovering in the air	Hovering in any direction
Spray flow	5-8L/min
Spray system	Imported high pressure anti-floating atomizing  nozzle
Atomization point size	60~90μm
Fly Control	Industrial Version GPS and Controller
Spary efficiency	≥7 hectares/day
Safe takeoff and landing wind speed	≤5
Motor speed	5000rpm
Power system	48V power polymer computer battery
Charer	AC Input 100-240V
Lithium-polymer battery	20000mAh*1
