• Model NO.：SZLH
• Bulking Machine Type：Twin Screw Bulking Machine
• Expanding Method：Wet Expansion
• Condition：New
• Applicable Materials Shape：Short strip
• Warranty：12 Months
• Voltage：380V.50Hz, 3phases
• Capacity：1-20t,H
• Conditioner：Carbon Steel
• Weight：2100kg
• Dimension：2302*1035*2015mm
• Power：22-160kw
• Brand Name：Hnly
• Machine Test：Supported
• Transport Package：Seaworthy Wood Case
• Specification：ISO9001
• Trademark：HNLY
• Origin：Zhengzhou, Henan, China
• HS Code：84361000
• Production Capacity：200 Sets Per Month

Basic Info.

Model NO. SZLH Bulking Machine Type Twin Screw Bulking Machine Expanding Method Wet Expansion Condition New Applicable Materials Shape Short strip Warranty 12 Months Voltage 380V.50Hz, 3phases Capacity 1-20t/H Conditioner Carbon Steel Weight 2100kg Dimension 2302*1035*2015mm Power 22-160kw Brand Name Hnly Machine Test Supported Transport Package Seaworthy Wood Case Specification ISO9001 Trademark HNLY Origin Zhengzhou, Henan, China HS Code 84361000 Production Capacity 200 Sets Per Month

Product Description

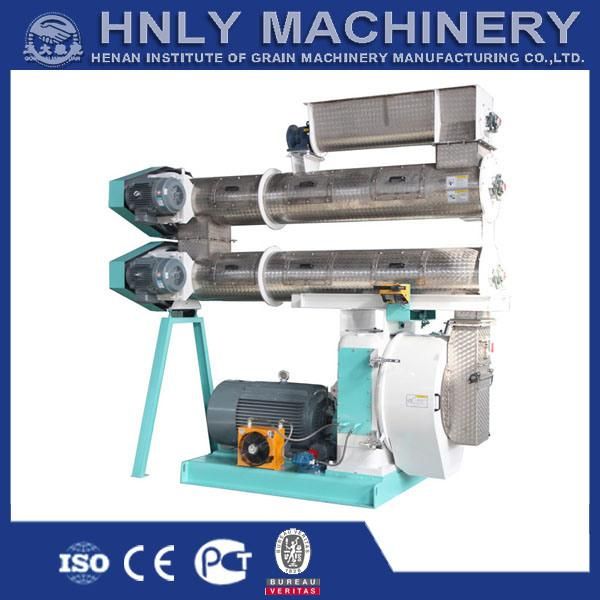

Poultry Feed Pellet Mill with Double Conditioner / Poultry Equipment

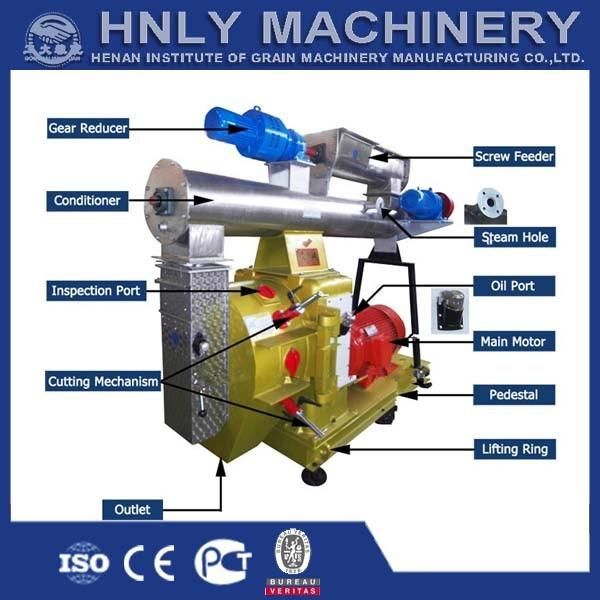

Working principle of animal and poultry feed  pellet machine
1.Wide applicable scope:It can process different materials such as corn, maize, grass, grains, molasses, and some other raw materials
2.Highly efficient one step gear transmission drive ensures maximum utilization ratio of energy
3.Full stainless steel feeder;Variable-pitch anti-arch structure;Imported frequency converter control
4.Stainless steel conditioner extends the conditioning and cooking time.Axial steam spraying port, improving feed cooking efficiency
5.High precision driving main gear and pinion shaft adopt the carbonizing quenching and hard tooth surface grinding technology, resulting in smooth driving, low noise and long service life

Technical parameters

Model	SZLH250	SZLH 320	SZLH 350	SZLH 420	SZLH 508
Main Motor Power (kw)	22	37	55	110	160
Conditioner Power (kw)	1.5	2.2	2.2	5.5	7.5
Dia of mould (mm)	250	320	350	420	508
Feeder Power (kw)	0.75	1.5	1.5	1.5	2.2
Size of Finished pellets (mm)	1.5-12	1.5-12	1.5-12	1.5-18	1.5-18
Capacity (t/h)	1-2t/h	3t/h	5t/h	5-8t/h	10t/h

Our service
1.We supply spare all year around.
2.We supply technical solutions and helps for buyers at any time.
3.We have professional team help customers in designing and planning oil refinery.

Company profile
Henan Institute Of Grain Machinery Manufacturing Co., Ltd.Is a large joint-stock enterprise specializing in the production of grain and oil processing machinery with integrating scientific research, manufacture and sales.Supported by abundant talents and scientific resources of Henan Mechanical Design and Research Institute and Henan University of Technology (Former Zhengzhou Grain College), Henan Institute Of Grain Machinery Manufacturing Co., Ltd.Has carried out the research and application of oil machinery, food machinery, coarse cereal machinery, construction machinery, and feed machinery, etc, and transformed the latest scientific research achievements into productivity, which obtained great social effects and economic returns.
