CE Approved Animal Feed Pellet Machine Making

Jiangsu Liangyou Zhengda Co., Ltd.
  • After-sales Service：Provided
  • Type：Pellet Mill
  • Processing Object：Mixed Feed
  • Processing Technics：Crushing-before-Mixing
  • Screen Mesh：With Screen Mesh
  • Grinding Equipment Type：Feed Hammer Mill

Base Info

  • Model NO.：SZLH420
  • Pellet Mill Type：Ring Die Pelleter
  • Bulking Machine Type：Twin Screw Bulking Machine
  • Expanding Method：Wet Expansion
  • Condition：New
  • Applicable Materials Shape：Granular
  • Warranty：1 Year
  • Power(Kw)：75,90
  • Conditioner：Stainless Steel
  • Pellet Diameter：2-18
  • Motor Brand：Siemens(China)
  • Transport Package：Iron Pallet
  • Specification：1500KG
  • Trademark：Liangyou
  • Origin：Jiangsu China
  • HS Code：84361000
  • Production Capacity：5sets,Month

Description

Basic Info.

Model NO. SZLH420 Pellet Mill Type Ring Die Pelleter Bulking Machine Type Twin Screw Bulking Machine Expanding Method Wet Expansion Condition New Applicable Materials Shape Granular Warranty 1 Year Power(Kw) 75/90 Conditioner Stainless Steel Pellet Diameter 2-18 Motor Brand Siemens(China) Transport Package Iron Pallet Specification 1500KG Trademark Liangyou Origin Jiangsu China HS Code 84361000 Production Capacity 5sets/Month

Product Description

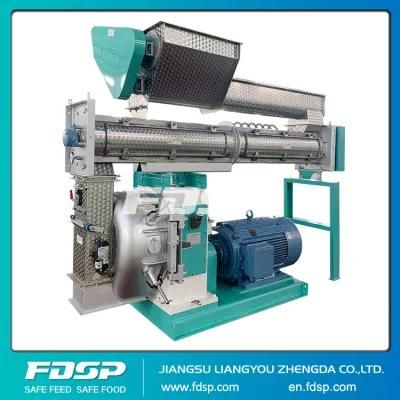

                                                     CE Approved Animal Feed Pellet Machine Making
Features
1. Gear directly-connecting driving is adopted for high efficiency;
2. Full stainless steel feeder; Variable pitch anti-bridging structure; Imported FC control;
3. LL stainless steel conditioner with axial steam spraying extends the conditioning and cooking time;
4. Main gear and pinion shaft adopt the carbonizing quenching with high accuracy; Smooth driving, low noise and long service life;
5. Gearbox and driving holes' accuracy are guaranteed by specialized casting supplier and NCC;
6. The bearing and oil seal in the main drive are imported, and especially lubrication oil return system is available to ensure reliable bearing lubrication;
7.2 PC quick disassembling type precisely-cast die clamp is adopted to connect the die and quill flange, resulting in convenient and quick disassembling of die;
8. Pellet chamber door and feed chute are fully made of stainless steel with high anti-corrosion ability and long service life;
9. The connection between motor and gearbox adopts new type S-shape spring coupling with more convenient disassembling and assembling and more reliable use.
ModelOutput (t/h)Main Power (w)Power of Conditioner
(kw)		Power of Feeder
(kw)		ID Of Die
(mm)		Pellet Size
(mm)
SZLH4003-1275/905.5/7.51.54002-18

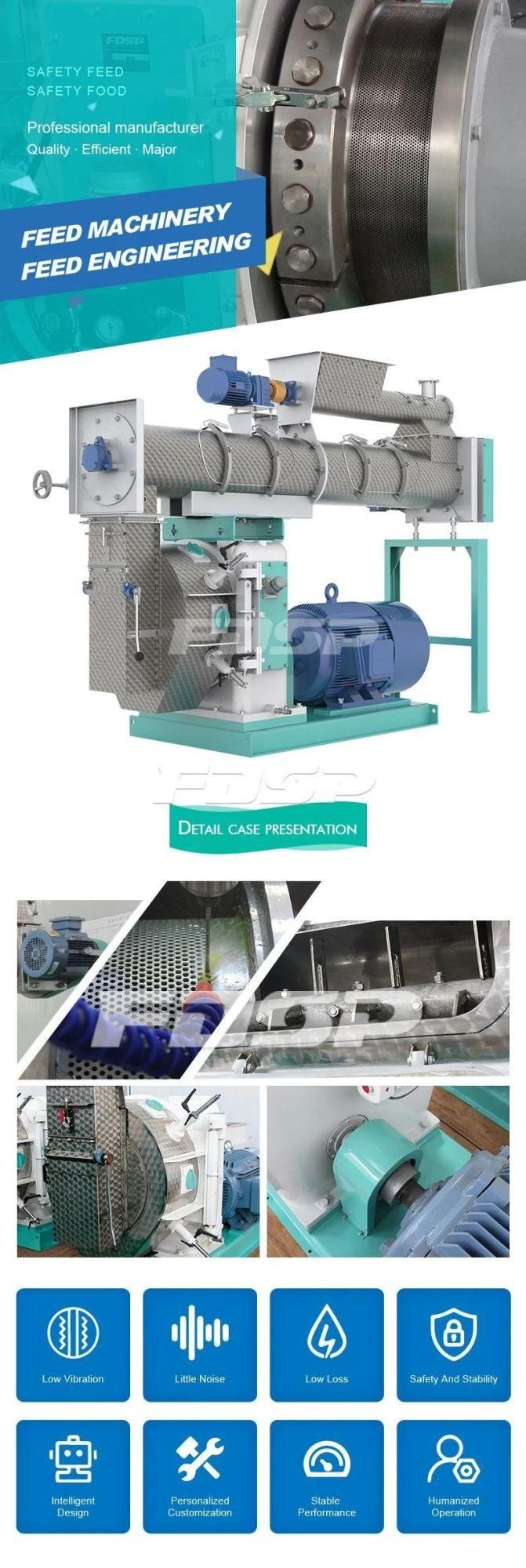

CE Approved Animal Feed Pellet Machine Making
FAQ
1.Q: How can I trust on your quality?
Answer:
1). All of the machine be tested successfully in Liangyou workshop before shipment.
2). The working lifespan of Liangyou machines is at least 20 working years.

2. Q: Does your company provide Engineers Abroad Service?
Answer: Sure, we provide it. And we can provide free training for on-site workers.

3. Q: How to train our staff about operation and maintenance?
Answer : We will provide every detailed technical instructive, pictures, videos to teach them for the operation and maintenance. In addition, our engineers for guide assembly will teach your staff on site.

4. Q:What shipment terms you offer?
Answer: We can offer FOB, CIF, CFR etc based on your request.

5. Q:What payment terms you take?
Answer: T/T, LC ,D/A,D/P etc.
