Grain Seed Gravity Separator Sorting Table
Hebei Ruixue Grain Selecting Machinery Company Limited- Model：5xz-6
- Capacity (Kg/H)：5000
- Power(Kw)：8.95
- Weight(Kg)：2350
- Warranty：One Year
- Spare：One Year
Base Info
- Model NO.：5XZ-6
- HS：8437109000
- Discount：Yes
- Transport Package：Wooden Case or Container
- Specification：ISO9001-2008, TUV, SGS SONKAP
- Trademark：SYNMEC
- Origin：China
- HS Code：84371090
- Production Capacity：1000 Set,Year
Description
Basic Info.
Model NO. 5XZ-6 HS 8437109000 Discount Yes Transport Package Wooden Case or Container Specification ISO9001-2008, TUV, SGS SONKAP Trademark SYNMEC Origin China HS Code 84371090 Production Capacity 1000 Set/YearProduct Description
Grain Sesame Maize Wheat Bean Gravity SeparatorThe Gravity Separator can efficiently remove moldy kernel, immature shriveled, insect damaged seed or broken seed to ensure maximum quality of the final product. The Gravity Separator can be used to separate all kinds of seed and grains, such as coffee bean, cocoa bean, peanuts, corn, peas, beans ,rice, wheat, sesame etc.
Specification of 5XZC Seed Grain Cleaner:
| Model No. | Capacity(T/H) | Power(KW) | Dimensions(MM) | Remarks |
| 5XZ-5B | 5 | 9 | 4000×2050×3100 | Suction Type |
| 5XZ-5A | 5 | 9.75 | 4000×1900×3100 | Suction Type with Dust Cylone Separator |
| 5XZ-3 | 3 | 7.45 | 2600×1500×2100 | Blow Type |
| 5XZ-6 | 5 | 8.95 | 3440x1630x1900 | Blow Type |
| 5XZ-10 | 10 | 15 | 4300x1960x2500 | Blow Type |
Working Principle of 5XZC Seed Grain Cleaner:

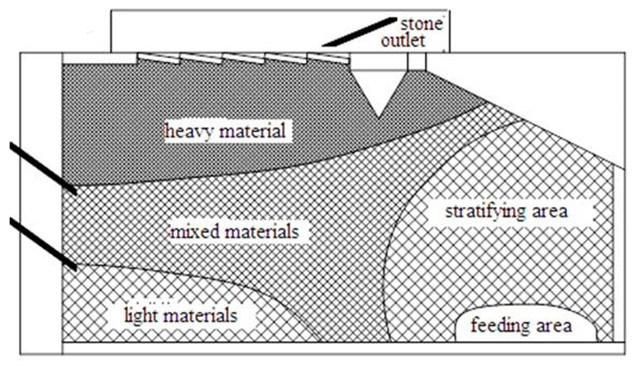

The Gravity Separator works on a fluidized bed principle. Materials is fed on oscillating sieve deck. By the pressure of air & deck oscillation, material is fluidized and stratified. Heavy fraction sink into the deck while light fraction is suspended in fluidized state. Deck oscillation causing heavy and light fraction travel in separated path and collected separately.

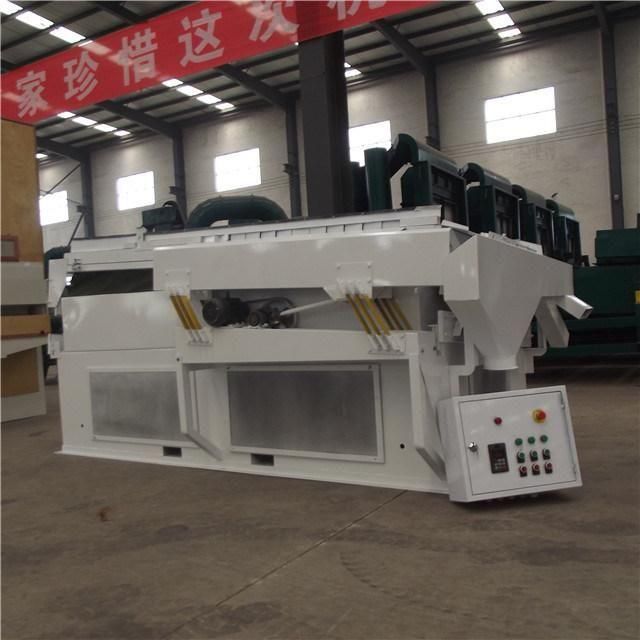

Photos of 5XZC Seed Grain Cleaner Machine:
