• Model NO.：SWLY
• Pellet Mill Type：Ring Die Pelleter
• Condition：New
• Applicable Materials Shape：Granular
• Warranty：1 Year
• Output(T/H)：25-35
• No. of Beater (PC)：48-112
• Screen Hole Size：Customized
• Feeder：Impeller Feeder
• Main Motor：Siemens(China)
• Transport Package：Pallet
• Specification：CE, ISO, SGS
• Trademark：Liangyou
• Origin：China
• HS Code：8436100000
• Production Capacity：10-50tph

Basic Info.

Model NO. SWLY Pellet Mill Type Ring Die Pelleter Condition New Applicable Materials Shape Granular Warranty 1 Year Output(T/H) 25-35 No. of Beater (PC) 48-112 Screen Hole Size Customized Feeder Impeller Feeder Main Motor Siemens(China) Transport Package Pallet Specification CE, ISO, SGS Trademark Liangyou Origin China HS Code 8436100000 Production Capacity 10-50tph

Product Description

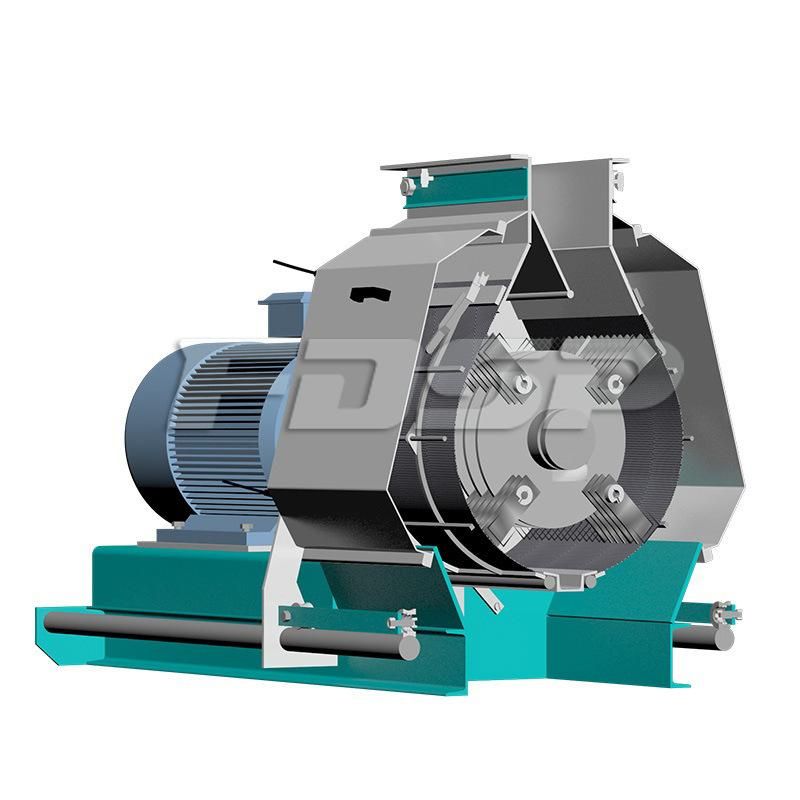

Good Price Raw Material Hammer Mill Feeder /Hammer Crusher impeller feeder



More introduction about our hammer mill:
Features:
1. The grinding chamber is of tear circle shape, effectively eliminating the circular flow in the grinding process and getting higher capacity;
2. The Bottom of grinding chamber is fitted with U-shape double grinding structure, further improving the capacity with evener particle size;
3. Rotor passes accurate dynamic balancing test, resulting in low equipment noise and smooth running.
4. Both coarse and fine grinding is realized through adjusting the gap between beater and screen;
5. New type S shape coupling directly connecting driving results in big offset travel and effectively avoid the heating of bearing;
6. Beater blade edge is vacuum-welded by special alloy steel, resulting in long service life;
7. The imported products are used for key parts, resulting in long service life and low maintenance cost;
8. The moving full-wide operation door facilitates maintenance and replacing of beater;
9. It is widely used in various feed mills, oil plants, alcohol plants, citric acid plants, etc.
Notes for key feed processing equipment using
There are many kinds of feed processing equipment, among which the key equipment affecting feed granulation is nothing but hammer mill, mixer, granulator. In today's increasingly fierce competition, many manufacturers to purchase advanced production equipment, but because the operation of the use of error, often occur equipment failure. Therefore, feed factory's  correct understanding of the use of equipment attention is not to be ignored.

Hammer mill

Hammer mill generally have two types: vertical and horizontal. The main components of the crusher are hammer and screen, hammer need durable wear-resisting and certain toughness, also need balanced arrangement so as not to cause vibration.

Notes for using hammer mill:
  1) check the lubrication condition of the connecting parts and bearings before starting the machine, run the machine for 2-3 minutes, start feeding after normal operation, stop feeding after finish the production, and run the machine for 2-3 minutes, and then shut down the motor after all the material in the machine has been emptied.

2) Change the direction immediately when hammer abrasion reach the centerline. If all four corners are worn to the center, a new hammer piece is required. Note: The original arrangement should not be changed when changing, and the weight difference between each set of hammer pieces should not exceed 5G, otherwise it will affect the balance of the rotor.

3) The Air Net System of the hammer mill is very important to improve the efficiency of grinding and reduce the dust. Pulse filter with good performance should be chosed. After each shift, clean the inside and outside of the dust remover, remove the dust, check, clean and lubricate the bearing regularly.

4) The materials should not be mixed with iron, gravel and other sundries. If there is  abnormal sound during production , should timely shutdown and make inspection, troubleshooting.

5) the working current and the feeding amount of the feeder at the upper end of the crusher should be adjusted at any time according to the different materials to prevent the jam and increase the crushing amount.
