• Model NO.：LYGX218
• Feed Opening Size(Mm)：180*500
• Knife Rotor Speed(Rpm)：590
• Feed Speed(M/Min)：37.2
• Capacity(M3/H)：10-18
• Main Motor Power(Kw)：55
• Transport Package：Iron Pallet or Depending on Customers′ Request
• Specification：CE, ISO9001, SGS
• Trademark：FDSP
• Origin：Jiangsu, China (Mainland)
• HS Code：8436100000
• Production Capacity：20 Set,Sets Per Month

Basic Info.

Model NO. LYGX218 Feed Opening Size(Mm) 180*500 Knife Rotor Speed(Rpm) 590 Feed Speed(M/Min) 37.2 Capacity(M3/H) 10-18 Main Motor Power(Kw) 55 Transport Package Iron Pallet or Depending on Customers′ Request Specification CE, ISO9001, SGS Trademark FDSP Origin Jiangsu, China (Mainland) HS Code 8436100000 Production Capacity 20 Set/Sets Per Month

Product Description

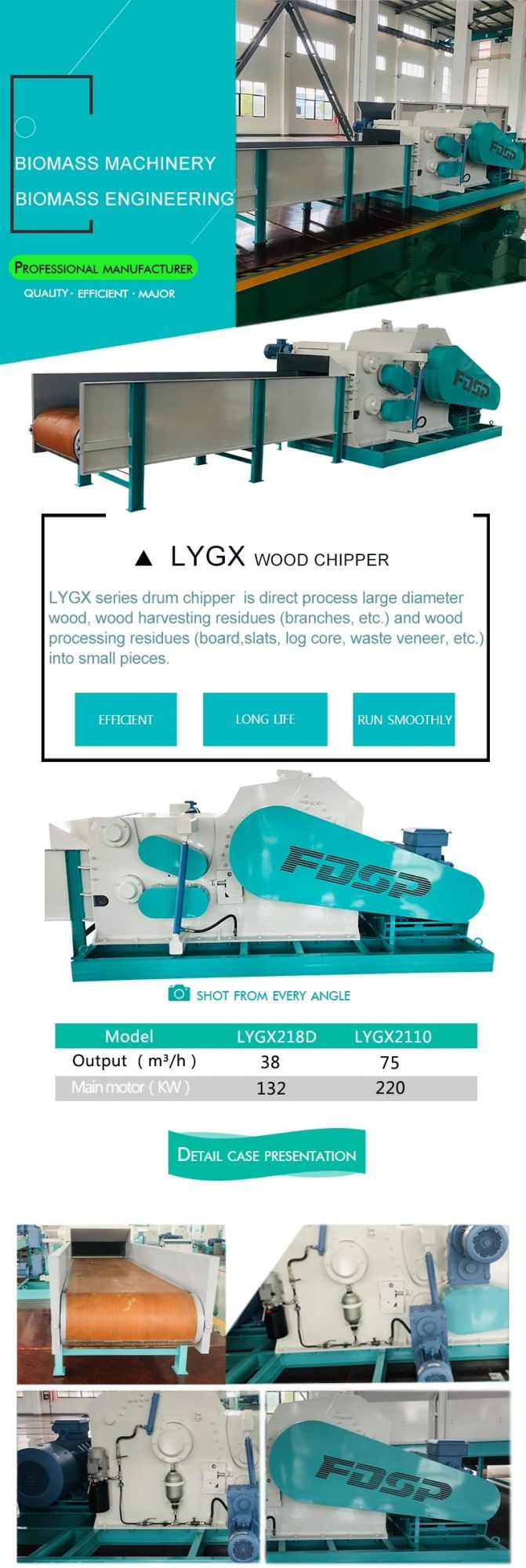

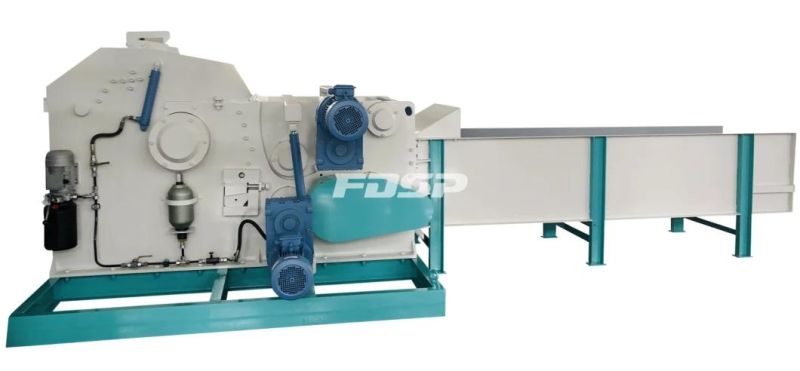

High quality professional wood chips chipper machine


Products introduction of wood chipper:
1. The wood chipper is a machine cutting the tree into chips, which is widely used in the paper mill, paper pulp mill or chipboard mill. The whole set of wood chipper equipment usually including 3 parts, the log feeding structure, the wood chipper( tree chipper) and the chips discharging structure.
2. The log feeding structure usually adopted two ways, the conveyor or handwork. For the big log or high capacity model chipper, it usually uses the conveyor feeding the logs into the chipper. For the small model chipper, it usually feeding the logs into chipper by hand work, which could reduce the cost of the conveyor.
3. For the chips discharging structure, it usually adopted the two ways, the chips discharging tube or the discharging conveyor. The discharging tube could blow the chips to about five meters high and spray into the truck directly or the designated place. The discharging conveyor could transport the chips for a longer way to the designated place, such as warehouse.





Main technical parameters:

Data Model	LYGX213/5	LYGX216	LYGX218	LYGX218D	LYGX2110
Rotor Dia(mm)	300	650	800	800	1000
Number of flying knives(pcs)	2	2	2	2	2*2
Feed opening size(mm)	120*300	180*500	225*680	240*780	330*1050
Knife rotor speed(rpm)	730	590	650	650	550
Feed speed(m/min)	38	37.2	37	38	33
Max dia of log	Cutting bark	120	160	160	190
Wood chips length(mm)	26	30	30	30	30
Capacity(m³/h)	8-16	10-18	15-20	38	75
Main motor power(kw)	45	55	110	132	220
Feed roller motor power(kw)	2*1.1	2*3	2*4	2*5.5	2*7.5
Weight(kg)	1200	4070	7000	8000	12500
Overall dimension(L*W*H)	3681*870*900	4348*2056*1258	4670*2150*1500	4670*2250*1515	2850*2790*1497
