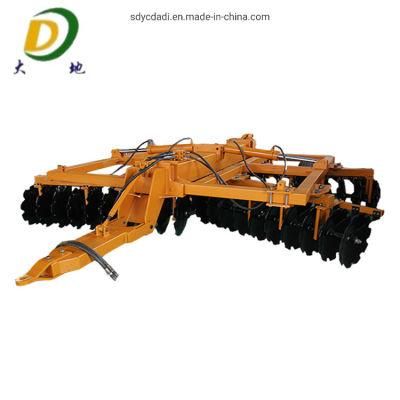

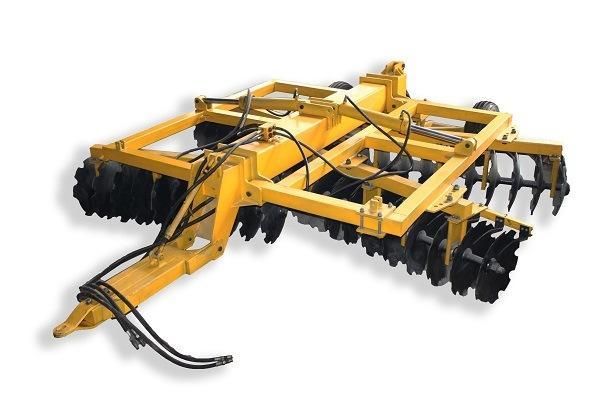

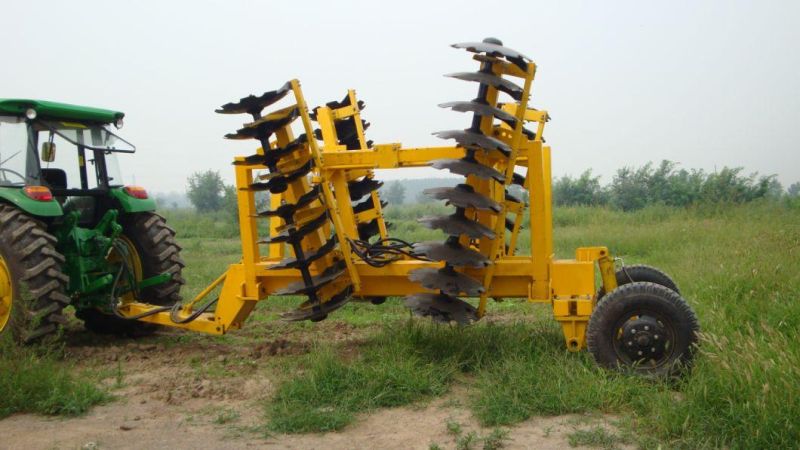

Fold Wing Heavy Duty Disc Harrow

Yucheng Dadi Machinery Co., Ltd.
  • Type：Disc Plough
  • Application Field：Agriculture, Livestock, Aquaculture, Forestry
  • Farming Policy：Dry Cultivating Machinery
  • Power Source：Tractor
  • Operation：Soil Preparation Machinery, Movable Operation
  • Traction Type：Traction

Base Info

  • Model NO.：1BZDZ-4.4
  • Drive Type：Trailed
  • Arbor Configuration：Vertical Shaft
  • Color：Green,Yellow,Blue
  • Model：1bzdz-4.4
  • Weight：3100
  • Working Width：4.4
  • Working Depth：25
  • Blade Spacing：230
  • No of Disc：40
  • Dia.of Disc：660
  • Productivity：4
  • Linkage：Trailed
  • Transport Package：Iron Frame Box
  • Specification：CE, RoHS, SGS, GMP
  • Trademark：DADI
  • Origin：Shandong Yucheng
  • HS Code：8433110000
  • Production Capacity：10000PC,Year

Description

ModelUnit1BZDZ-4.41BZDZ-4.81BZDZ-5.3Overall dimension cm580x450x150580x495x150580x540x150Weightkg3100-31503250-33003400-3450Working widthm4.44.85.3Working depthcm20Blade spacingmm230No of discpc404448Dia.of discmm660Transport clearancemm>260Productivityha/h4.44.85.3Matched powerkw105-110115-120125-130Linkage Trailed Fold Wing Heavy Duty Disc Harrow
