Top Ratings Feed Equipment Poultry Feed Mill Equipment
Jiangsu Liangyou Zhengda Co., Ltd.- After-sales Service：Provided
- Type：Complete Turnkey Project
- Processing Object：Cereals
- Processing Technics：Crushing-before-Mixing
- Screen Mesh：With Screen Mesh
- Grinding Equipment Type：Feed Hammer Mill
Base Info
- Model NO.：SKJZ5800
- Pellet Mill Type：Ring Die Pelleter
- Bulking Machine Type：Twin Screw Bulking Machine
- Expanding Method：Wet Expansion
- Condition：New
- Applicable Materials Shape：Granular
- Warranty：1 Year
- Voltage：380-440V
- Power(W)：172kw
- Capacity：4-6tph
- Pelleted Feed Size：1.5-18mm
- Application：for Making Feed Pellets
- Size：13*6*11m
- Transport Package：Iron Pallet and Soft Guard
- Specification：1500KG
- Trademark：FDSP
- Origin：China
- HS Code：84361000
- Production Capacity：5 Sets,Month
Description

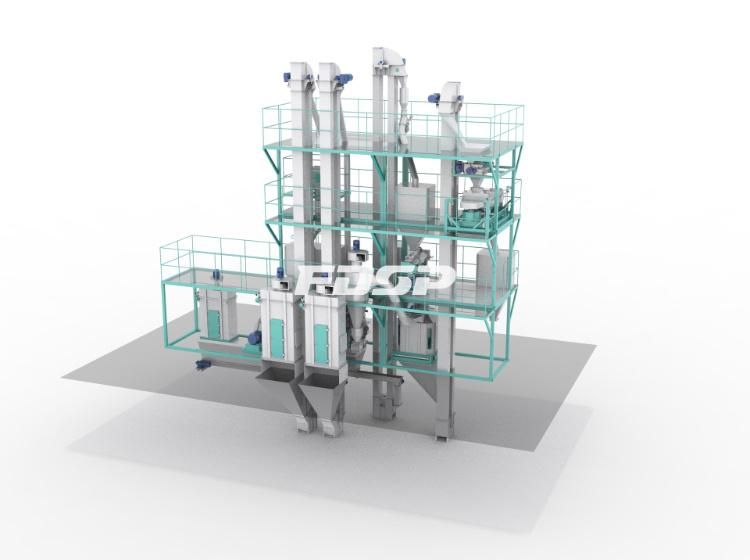

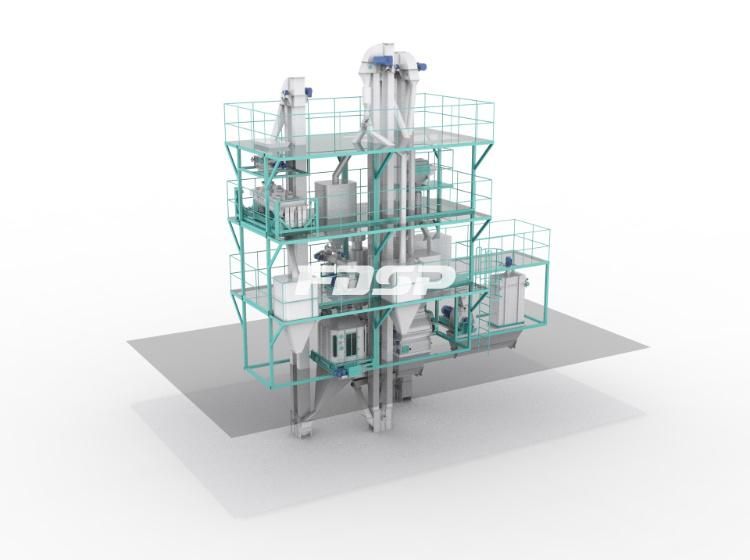

Technological characteristics and introductions:
RM receiving and cleaning process: granules and powder material will be put into the production line separately though two inlet, the granules will be screened and cleaned to remove impurities by pre-cleaner, then remove the iron before it go into the hammer mill, the powder material should be cleaned in advance.
Grinding process: adopts FDSP's tear circle hammer mill which can make both coarse grinding and fine grinding, the feeder is combined together with the pre-cleaner which can clean the material and also feeding into the hammer mill, variable frequency control, evenly feeding and equipped with pulse filter. Mechanical induct discharging. The process is simple and with low cost, it is suitable for small capacity and multi type of material's grinding.
Grinding machine: hammer mill SFSP568-II with power 37KW, output: 5-6t/h
Mixing process:there is pre-mixing bin upper the mixer which can make the feeding continuously when mixer working, the mixed material can go into the pre-pelleting bin and mesh feed bins separately to meet the requirement for producing mesh feed and pellet feed at same time.
Mixing equipment: double shaft paddle mixer SHSJ1 with 11kw, 500kg/P, homogeneity CV≤5%
Pelletizing process: adopt one pellet mill with single conditioner which is suitable for normal poultry feed and ruminant feed production. the material go into the cooler directly after pellet mill, then go into the crumbling and screening system through bucket elevator, manual packing at last.
Pelletizing equipment: pellet mill SZLH350 with 55kw, output:3-7t/h.( ¢3.5 normal broiler feed formula)
Cooling equipment: counter flow cooler SKLN2.5 with output 5-6t/h
Crumbler: SSLG15x100 with output 3-5t/h, it can crumble the large feed pellets into small pellets to produce small chicken grow seedling feed. the crumbler is designed with by pass system so the material can be go into the screener though by pass when no need to use crumbler.
Screening equipment: plan rotary screener SFJH80×2C with capacity 4-6t/h
Auxiliary system: liquid adding system could adding oil into the mixer to improve feed palatability. Air compressing system is used to supply compressed air for pneumatic components.
