• Model NO.：5XZC-3DS
• Sieve Dimension：1250*800mm
• Application：Wheat, Pulse, Bean, Sesame, Various Seed and Grain
• Feature：Double Air Cleaning
• Color：Green,White,Optional
• Input：3 Phase Electricity
• Function：Remove Dust, Light Impurity, Big and Small Impurit
• Customized：Available
• Type：Farm Machine
• on Site Service：Available
• Transport Package：Plywood Case Package or Mill′s Standard
• Specification：SGS, ISO9001, TUV
• Trademark：SYNMEC
• Origin：Hebei, China
• HS Code：84371090
• Production Capacity：100 Sets,Month
• Package size per unit product：3.50cm * 2.00cm * 2.00cm
• Gross weight per unit product：1700.000kg

Basic Info.

Model NO. 5XZC-3DS Sieve Dimension 1250*800mm Application Wheat, Pulse, Bean, Sesame, Various Seed and Grain Feature Double Air Cleaning Color Green/White/Optional Input 3 Phase Electricity Function Remove Dust, Light Impurity, Big and Small Impurit Customized Available Type Farm Machine on Site Service Available Transport Package Plywood Case Package or Mill′s Standard Specification SGS, ISO9001, TUV Trademark SYNMEC Origin Hebei, China HS Code 84371090 Production Capacity 100 Sets/Month

Packaging & Delivery

Package size per unit product 3.50cm * 2.00cm * 2.00cm Gross weight per unit product 1700.000kg

Product Description

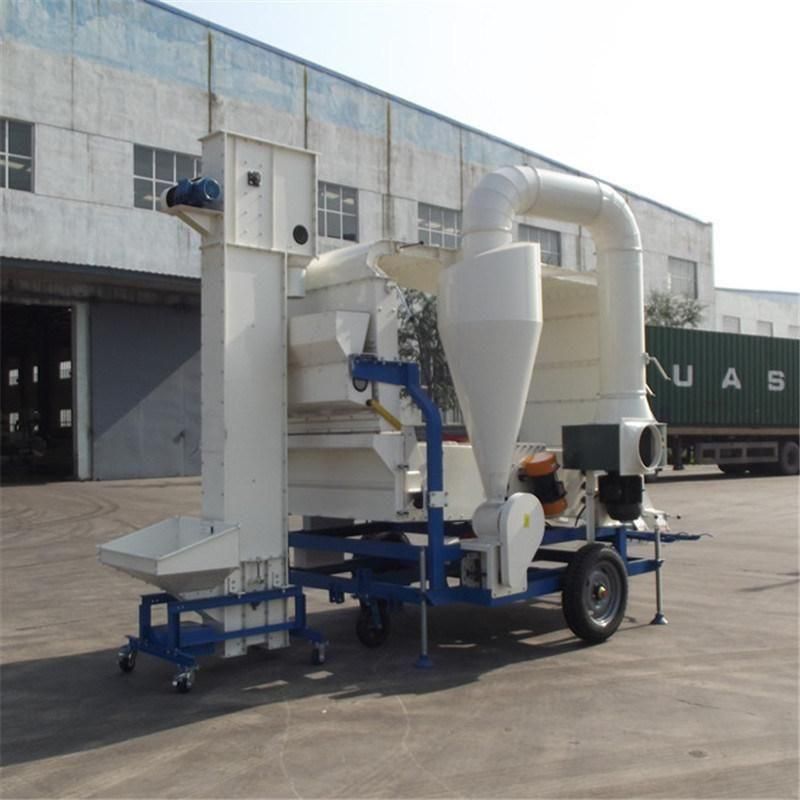

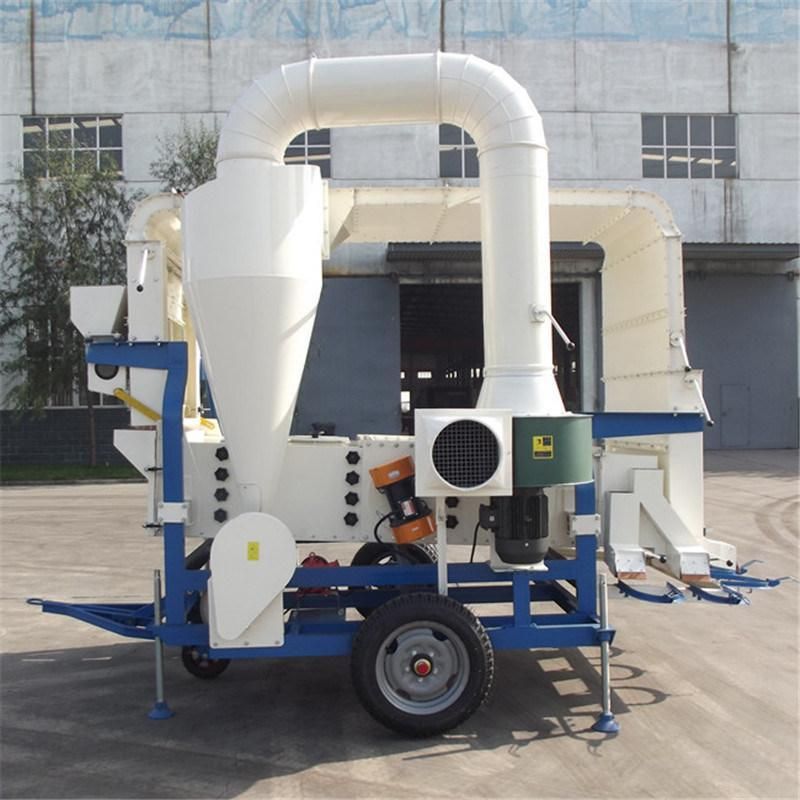

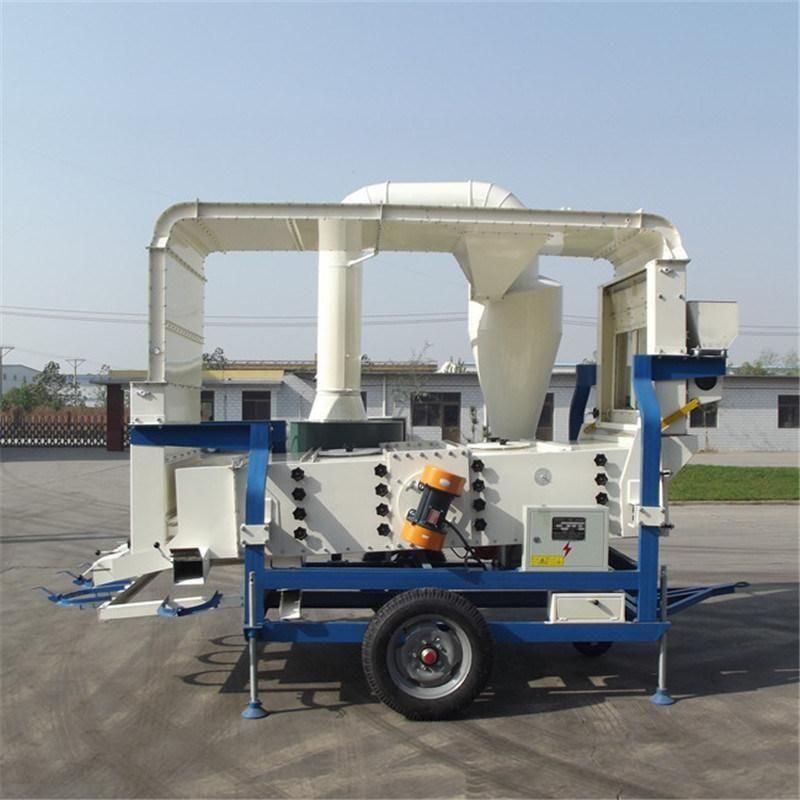

mung bean soya bean cocoa bean separator machine
INTRODUCTION

mung bean soya bean cocoa bean separator machine is suitable for efficient cleaning and grading of seeds of all crops such as wheat, paddy, barley, maize, millets, sunflower, soyabean, oil seeds, flower seed, fodder/forestry seeds and various spices etc.

mung bean soya bean cocoa bean separator machine is for primary cleaning of seeds or beans, Cumin Seed Processing Equipment  can remove out the straws, awns, and other light impurities, also has grading function for remove large and small impurities at the same time dividing the good seeds into different levels by size.
Dust and light impurity are removed by aspirator fan. Material falls on sieve layers and was separated by sieves according to width and thickness difference. All the oversize and undersize impurities were discharged from outlets.

WORKING PRINCIPLE

After fed into machine by bucket elevator, the dust and light impurity were removed by air aspiration system, and then materials enter to sieving trunk which has multi sieve layers, finally the material was graded to different level by size, at the same time all the oversize and undersize impurities were removed.

FEATURES

Customized various sieve's size and amount of sieve layer that make the seed cleaner & grader has wide range of applications and high grading efficiency.

DATA


Model	5XZC-3DS
Capacity	3 ton/hour
Power	4.25 kw
Weight	1200 kg
Dimension	3970*1800*2750 mm
Dimension of sieves	1250*800 mm
Input	3 phase electricity
Customized	available
